Ceramic Fixed Micro-Fuses with UL (NF02)

Name: Ceramic Fixed Micro-Fuses with UL (NF02)
Brand: all-electronics-online.com
SKU: 762046925
Availability: InStock
Rating: 4.3 (111 reviews)

Price:	US $ 0.1-1/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	NF02
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Environmental Certification:	ISO14000
Quality Certification:	ISO9001: 2008
Safety Certification:	NF02 125/250V
Certification:	UL
Breaking Capacity:	High
Type:	Temperature Fuse
Usaga:	Electronic

Product Description

Product description of the Ceramic Fixed Micro-Fuses with UL (NF02)
Specifications
Fuse On Save Energy Lamp
Type:1A,1.5A,2A,3A ect
Fuse On Save Energy Lamp
Coating by silastic sleeve.They are used in save energy lamp.

Electrical characteristics:
Pre-arcing time/current characteristic
Rated current:
2 In in 5S maximum
2.75In in 300mS maximum
4In in 30mS maximum
10In in 4mS maximum

Breaking capacity
Ratings:
160mA~5A: 50A 125V AC/DC
6.3A: 63A 125V AC/DC

Function characteristics:

recentage of rated current	blow time limit
100%	4 hours min
150%	1 hours min
200%	2 minutes max
400%	150ms min 10s max

Environmental specifications:
Operating temperature: -5 to 60 degrees Celsius
Stock conditions:

Temperature: +10 to 60 degrees Celsius
Relative humidity less than or equal to 75% storing for three years on average
Without dew, maximum value for 30 days, 95%
Structure:

Body: plastic (quantity = 1)
Termination: tinned copper wire (quantity = 2)
Weight: 0.26g (approximately) per fuse

Standards and approvals:
C-UL/VDE/CCC/PSE approved
See nominal melting I2t A2sec

Advantage:
1. Competitive price
2. High stability and high quality
3. Prompt shipment
4.quick response to the needs of our customers
5.professional & experienced management team
6.wide range products

Selling point
1)prompt delivery
2)variety of packing: Bulk and carton
3)stable performance, extensive resistance
4)factory direct price
5)none forbidden
6)all materials&machines importer from holand

If have any questions or requirments,please contact us freely in any time.

Welcome to provide us your specification, we will submit the best quotation shortly.

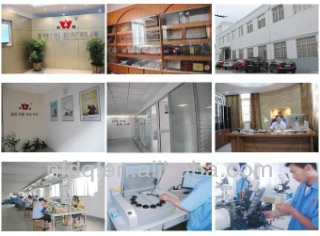

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment"
