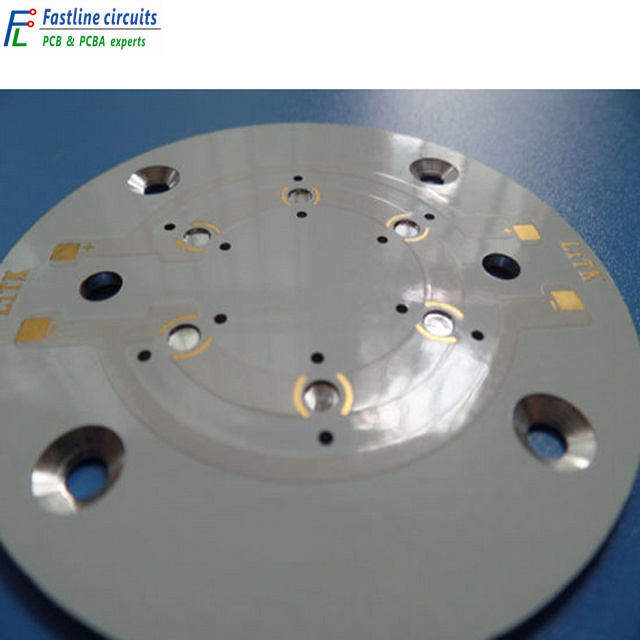

Ceramic PCB for High Power LED Lighting

Name: Ceramic PCB for High Power LED Lighting
Brand: all-electronics-online.com
SKU: 688361692
Availability: InStock
Rating: 5 (138 reviews)

Price:	US $ 0.52-0.6/Piece
Trade Terms:	FOB,EXW,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description

Company Profile

Fastline company which was founded in 2006 is a leading PCB expert that specializes in supplying high-tech PCB in high mixed, fast prototype, small to medium volume. We're capable of supplying PCBs up to 32 layers inclusive of HDI circuit boards, flexible circuits, rigid-flex boards, hybrids, halogen-free boards, metal-based PCB, high frequency PCB, heavy copper (up to 12 oz) PCB etc. which are in the applications of high-tech products.
The manufacturing facility is certified with ISO9001, ISO14001 & UL.Our products are widely used in Telecom, Industrial Control, Networks, Healthcare, & Automotive Industries.

Parameters & Data Sheet

Specifications
Board dimension	16 x 59mm
Board Type	2 Layers
Board Thickness	0.6mm
Board Material	Ceramic
Board Material Supplier	Shengyi
Tg Value of Board Material	AL2O3

Surface Finish	ENIG
RoHS Required	Yes
Surface Cu thickness	35 um (1 oz)

Color of Silkscreen	White
Number of Silkscreen	2
Solder Mask Colour	Green
Number of Solder Masks	2
Thickness of Solder Mask	13 um

Through hole assembly	YES
Sides of through hole assembly	1
SMD assembly	YES
Sides of SMD assembly	2

Total quantity of components	293
Quantity of SMT	215
Quantity of Through holes	78
Applications	LED LIGHT
RoHS Required	YES

High Frequency PCB

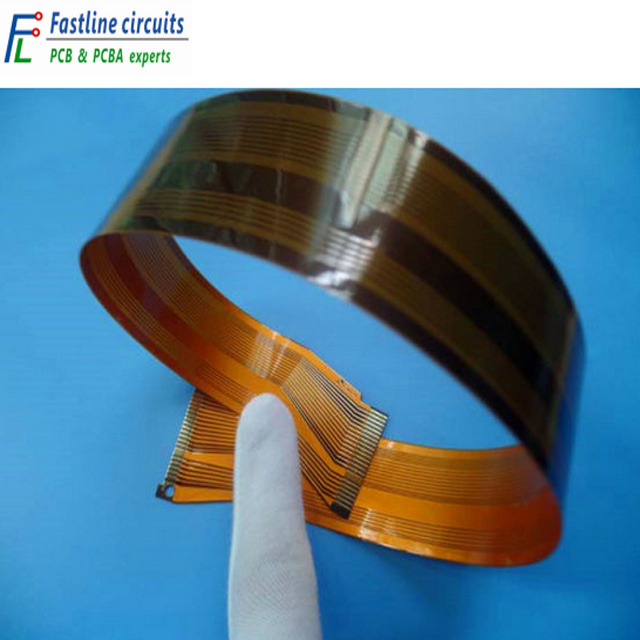

Flexible Printed Circuit

Metal Core PCB

PCB assembly

Contact us:

Web: www.fastlinepcb.com

Prod Model:	FL366C
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Copper Thickness:	1oz
Board Material:	Fr4
Board Thickness:	1.6mm
Solder Mask:	White
Surface Treatment:	HASL Lead Free
Metal Coating:	Copper
Mode Of Production:	DIP
Base Material:	FR-4

Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.

Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.

And provides "PCB One-stop PCB solution" to meet customers' diverse demands.

Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.

Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
