Shaanxi Longxiang Electrical Co., Ltd.
Shaanxi Longxiang Electrical Co., Ltd. >> Chassis

Chassis

Chassis
Price: US $ 50-2000/Piece
Min Order: 5/Piece
Pay Type: L/C
Contact Supplier
Showroom Product Company Profile

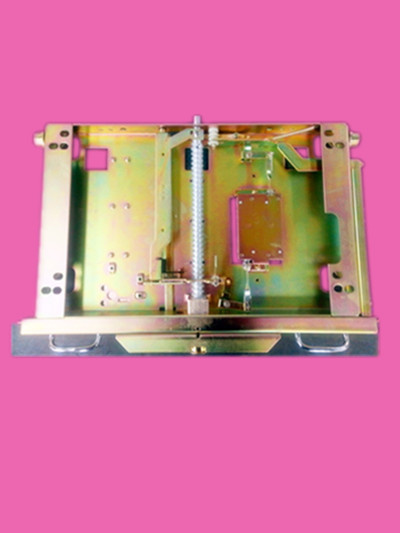

The chassis is matched with withdrawable type vcb, and the vcb can used in KYN28-12 switchgear panel.

The chassis is mainly used for components such as circuit breaker and mutual inductor in the extractive switch equipment, and it is promoted and withdrawn as the auxiliary operation of the components and busbar connections.When working with the internal organs of the chassis and the circuit breaker and other interlocking mechanisms of the central cabinet, the "five defense" interlocking requirements of GB3906 can be met. The specific functions are as follows:

1, handcart, only in the test/isolation or job position, circuit breaker closing, and after the circuit breaker closing, handcart cannot move, thereby preventing the misconnection mistakenly combined isolation contact with load.

2. When the handcart is in the working position or the test/isolation position is about 10mm, the grounding switch can not be closed to prevent the electrically charged false grounding switch.

3. When the grounding switch is closed, the handcart cannot be moved from the test/isolation position to the working position to prevent the closing of the circuit breaker when the grounding switch closes.

4. Once the chassis is inside the cabinet, the handcart will not be pulled out of the cabinet once the test/isolation position is removed.






Prod Model: DPC4-800
Breaking Capacity: High Voltage Circuit Breakers
Operation: Manual Type
Speed: High-Speed Circuit Breaker
Arc-extinguishing Medium: Vacuum
Structure: ACB
Poles Number: 3
Certification: ISO9001-2000
Installation: Withdrawable Type
Function: Withdrawable
Company Introduction

General

Shaanxi Longxiang Electrical Co., Ltd. is a specialized manufacturer of making vacuum circuit breaker covering the voltage range of 12kV~40.5kV, which is located in Gaoxin 19th Road, East Development Zone, Baoji city, Shaanxi province. It occupancies total area of 18800 square meters including building area of 12800 square meters. The annual production capacity of vacuum circuit breaker is 16000 sets.

Professional management team and extensive market supply

Shaanxi Longxiang Electrical Co., Ltd is in posseeion of professional management team, main of them were from middle of high level management of large-scale enterprises in this industry, with more than 20 years working experience accumulation, professional knowledge and managerial experience, we focus on technology innovation based on market-oriented concept. The products are widely used in national power, petrochemical, smelting, aviation industry etc. And also exporting to Italy, Russia, Iran, India and other international markets. We also have established long-term strategic cooperation relations with several specialized manufactures of power transmission and distribution in the world.

Reliable technique and continuous improvement of quality control

Having professional R&D team to supply technical support, and cooperating with related research institutes, all these guarantee our product in pioneer level on its technique. Besides, our advanced production line can control the quality of any procedures, and all products will be inspected strictly before delivery.

Contact information

Website: www.longxiangelectric.com Fax: +86 917 6732963
