Product Description

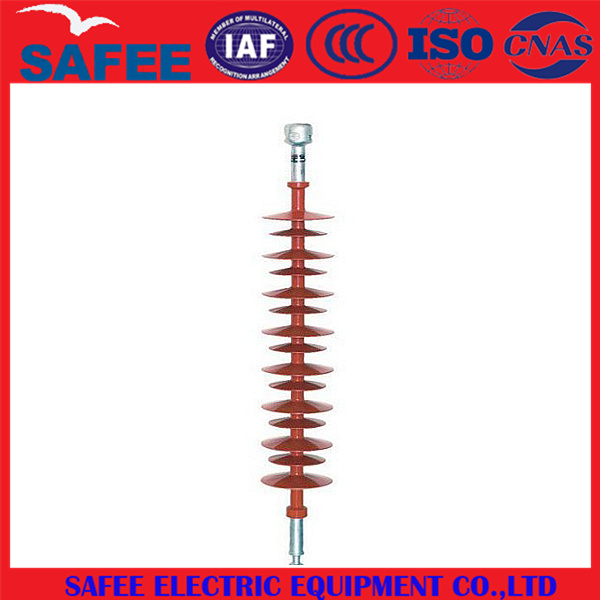

10KV-35KV Polymer/Composite/Polymeric Post Insulator
Our factory supply all kinds of low/middle/High Voltage Insulator with various materials, supply drawing are welcome
If any question for the 10KV-35KV Polymer/Composite/Polymeric Post Insulator or other composite insulator, contact us freely. We offer low and high voltage insulators, from 10KV to 330KV
*Material: Glass, Porcelain, Silicone, Composite Polymer
*In comply with ANSI, IEC, BS, AS etc standard
*Brown or grey glazed
*Advise Model No or supply drawing when enquire
*We offer free samples to our customers.
---------------------------------------------------------------
Why Choose us?
1. Professional manufacturer of insulators with our own factory;
2. We have excellent quality products with strict quality control process.
3. Products are produced by ourselves, which ensures high quality and lead time
4. Factory Manufacturing Enterprise Provide with you Competitive Price and superior quality
5. A wide range of low and high voltage insulators, from 10KV to 330KV
Any questions or your detailed drawings from you are welcome and will be replied in 24 hours.
Condition of Use:
1. Ambient air temperatures within the range of -40 degree Celsius to +40 degree Celsius;
2. Altitude above sea level not exceeding 1, 000m; (If the altitude is higher than 1, 000, it needs adjust. )
3. Frequency of A. C. Power supply not exceeding 100Hz;
4. The mechanical load no more than the rated value.
Characteristics:
-Small volume and light weight, easy to transport and install
-The superior in performance and high intensity mechanical enhance reliability of power line
-Extraordinary hydrophobic and resistance to contamination
-Long-duration resistance aging and leakage tracking.
Our products range from10KV-500KV polymer insulator, 40KN-420KN porcelain insulator and various kinds' pole line hardware. All the insulators have been produced by modern equipment, For example 500KV polymer insulator has been produced by high volume injection machine, which can finish two pieces 500KV at one time. Mention to the porcelain insulator, the vacuum pug mill has been imported from Germany in order control the quality from blank.
We pay more attention to the product quality all time. All the insulators have been tested 100% strictly by IEC Standard or ANSI Standard. We ensure the rate of qualified Production up to 100% before delivery. Base on good quality and service, our products are popular in USA, UK, Vietnam, Italy, Russia, Greece, Argentina and Chile. In order to keep good quality, we have got ISO9001: 2008 certificate.
| Figue No | Catalogue Type | Rated Voltage (KV) | Specified Mechanical bending Load(KN) | Section Length (mm) | Min Arc Distance (mm) | Min creepage Distance (mm) | Lightning Withstand Voltage(KV) | Wet power frequency Voltage (KV) |
| 1 | FZSW-10/4 | 10 | 4.0 | 254 ± 1.0 | 145 | 400 | 95 | 40 |
| 2 | FZSW-10/6 | 10 | 6.0 | 261 ± 1.0 | 161 | 432 | 75 | 42 |
| 3 | FZSW-10/6 | 10 | 6.0 | 281 ± 1.0 | 186.5 | 432 | 75 | 42 |
| 4 | FZSW-12/4 | 12 | 4.0 | 254 ± 1.0 | 145 | 400 | 95 | 40 |
| 5 | FZSW-12/6 | 12 | 6.0 | 281 ± 2.0 | 161 | 432 | 75 | 42 |
| 6 | FZSW-12/6 | 12 | 6.0 | 281 ± 2.0 | 186.5 | 432 | 75 | 42 |
| 7 | FZSW-20/4 | 20 | 4.0 | 370 ± 1.0 | 260 | 580 | 145 | 50 |
| 8 | FZSW-24/4 | 24 | 4.0 | 370 ± 1.0 | 260 | 580 | 145 | 50 |
| 9 | FZSW-40.5/4 | 40.5 | 4.0 | 560 ± 1.0 | 450 | 1050 | 230 | 95 |
| 10 | FZSW-35/4 | 35 | 4.0 | 560 ± 1.0 | 450 | 1050 | 230 | 95 |
