| Prod Model: |
FXBWY-110/70 |
| Rated Voltage: |
110kv |
| Spindle Material: |
Galvanized Steel |
| Using Application: |
High Voltage |
| Application: |
High-voltage |
| Material: |
Porcelain |
| Structure: |
Post Insulator |
| Type: |
A Type Insulator |
| Brand: |
Safee |
Product Description
Product Description

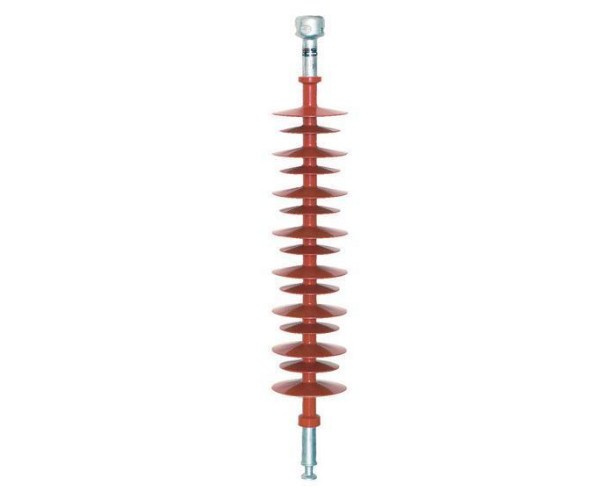

110KV Insulator Composite Tension Type 70KN 100KN
1.The Composite Insulator are made of glassfiber epoxy core rod, silicone rubber shed and metal fittings.
2.The silicon rubber shed adopt the whole packing pressure technique, and then to solve the key problem - interface electric spark puncture, which would affect the reliability of composite insulator.
Connection of the glassfiber rod and metal fittings, adopts the pressure welding technique of the international advanced level,
3.have the full automatic sound wave detection of defects system, high intension, beautiful outline, small volume, light weight, and the metal fitting of galvanization can corrosion prevention and exchange used with porcelain insulator.
110KV Composite High Tension Insulators Suspension Specification | Technical Specifications: |
| Model | Rated
Voltage | Rated
mechanical load | Structure
height | Min. Arc
distance | Min. Creepage
distance | Lightning impulse
withstand voltage | 1 min P.F. withstand
voltage (wet) |
| FXBWY-110/70 | 110 | 70 | 1200 | 1050 | 3150 | 550 | 230 |
| FXBWY-110/100 | 110 | 100 | 1240 | 1050 | 3150 | 550 | 230 |
| FXBWY-110/120 | 110 | 120 | 1240 | 1050 | 3150 | 550 | 230 |
110KV Insulator Composite Tension Type 70KN 100KN advantage
1.20 years global leading profession manufacture of energy meter
2.High quality porcelain material
3.Test data: each products will test by QC
4.Fast delivery : you will get the order when you need it
6.OEM is warmly welcome
7.3 line assemble line automatic machine ,
8.Convenient : 45 minutes to SHIJIAZHUANG airport
66KV Insulator Composite Tension Type 70KN 100KN function
1.This product is reliable structure
2.can't damage the core rod,
3.take full advantage of the mechanical strength.
4.excellent seismic performance,
5.good anti pollution performance; high quality stability.
66KV Insulator Composite Tension Type 70KN 100KN Payment terms
1. 30% T/T advance , the balance against to the copy B/Lor LC at sigh
2. The other specific issues can negorate.
3. Pls confirm the details with us before do the prepayment.
66KV Insulator Composite Tension Type 70KN 100KN Packing information
1. Inside foam package ,outside strong paper package
2. 20pcs/per CTN
3. G/N.W: 16/15kg
4. We can packing as your required,good looking design
Why choose 66KV Insulator Composite Tension Type 70KN 100KN
1).ISO9001,SGS,Gold golden supplier
2) Monthly Production Capacity -- 100000 Pcs
3)All goods examined before delivery by 10 QC staff
4)Prompt Reply Within 24Hours
5)8000 square meters work environment
