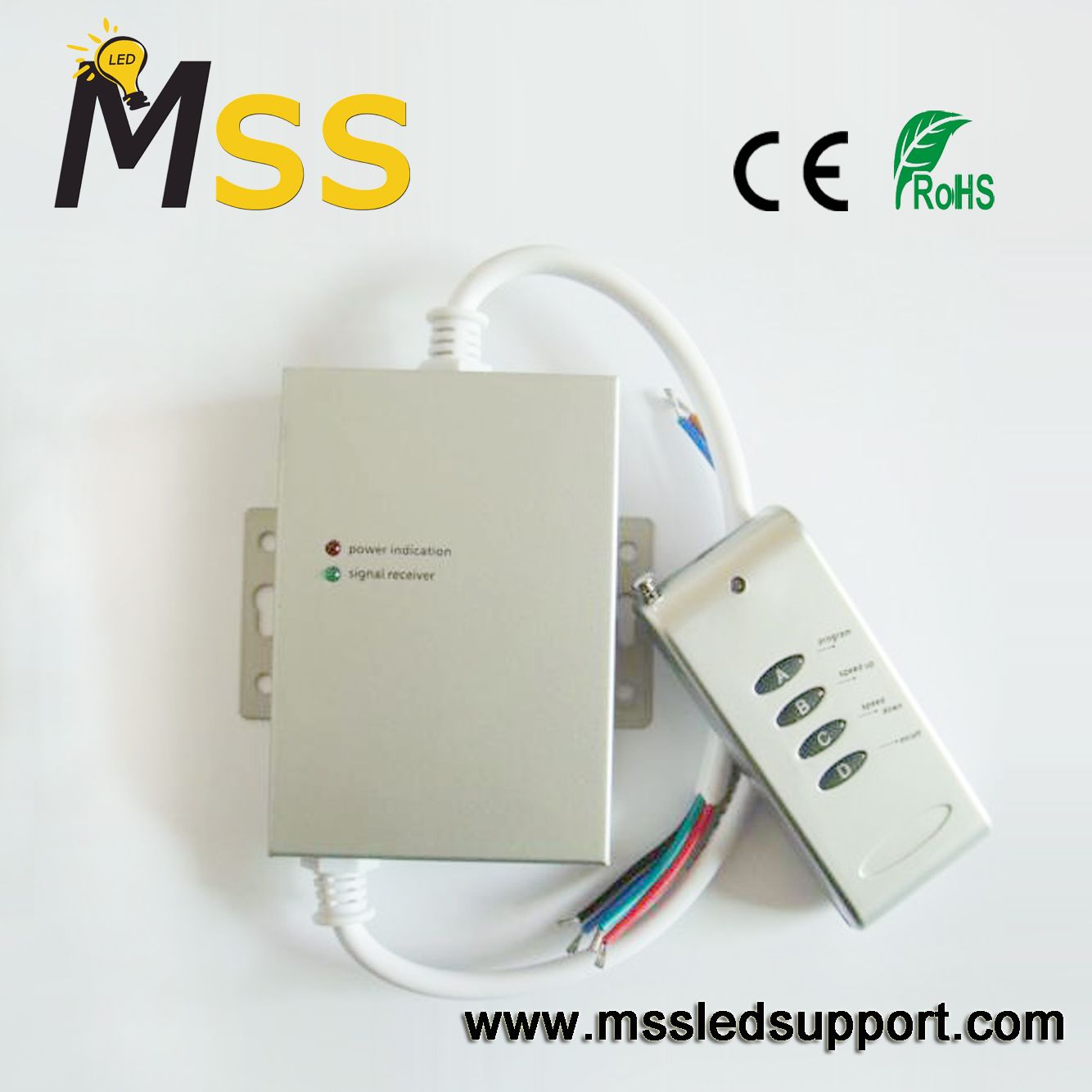

China DC12V 8 Key RF RGB LED Controller for RGB Strip, Find details about China RF Remote Control, LED Light Controller from DC12V 8 Key RF RGB LED Controller for RGB StripSummarization
RF controller adopts the advanced micro control unit,it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light,flexible light strip, wall washer lamp, glass curtain wall light and so on; At the same time,it has many advantages such as convenient connection ,simplicity to use and others. According to the actual need of customers,it can carry out jumpy changing,gradual changing,stroboflash and other effects of change.
Technical parameters
1. Working temperature: -20-60 ºC
2. Supply voltage: DC12V, 24V (for orders specify voltage)
3. Output: 3 channels
4. Connecting mode: common anode
5. Launch reception frequency: 433.92 Mhz
6. External dimension: L95 Χ W89 Χ H26 mm
7. Package Size: L160 Χ W95 Χ H51 mm
8. Net weight: 250g
9. Gross weight: 285g
10.Static power consumption: <1 W
11.Output current: <4 A (each channel )
12.Output power: 12V: <144W, 24V: <288W

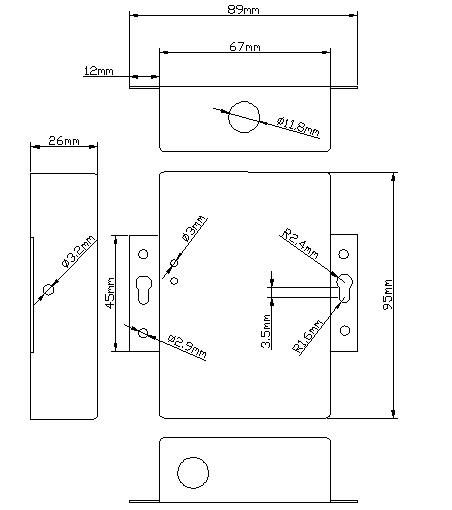

External Dimension

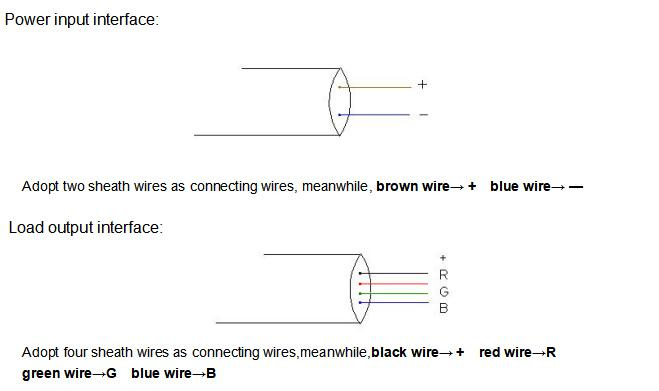

Interface Specifications
Direction for use
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power:
2. Adopt RF control, there are four keys altogether, and every key-press function as follows:
Program: pattern key, lighting color will change if you press one time;
Speed up: to speed up lighting color changing;
Speed down: to speed up lighting color changing;
On/off: Power switch, you could turn on/off controller in any state. 3. Standard color changes as follows:
| Items | Patterns | Remarks |
| 1 | Static red | |
| 2 | Static blue | |
| 3 | Static purple | |
| 4 | Static green | |
| 5 | Static yellow | |
| 6 | Static cyan | |
| 7 | Static white | |
| 8 | Three-color jumpy changing | 2(B) and 3(C) keys are available |
| 9 | Seven-color jumpy changing | 2(B) and 3(C) keys are available |
| 10 | Three-color gradual changing | 2(B) and 3(C) keys are available |
| 11 | Seven-color gradual changing | 2(B) and 3(C) keys are available |

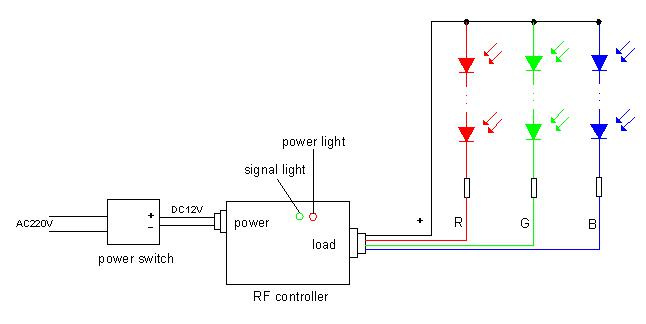

Typical Applications
