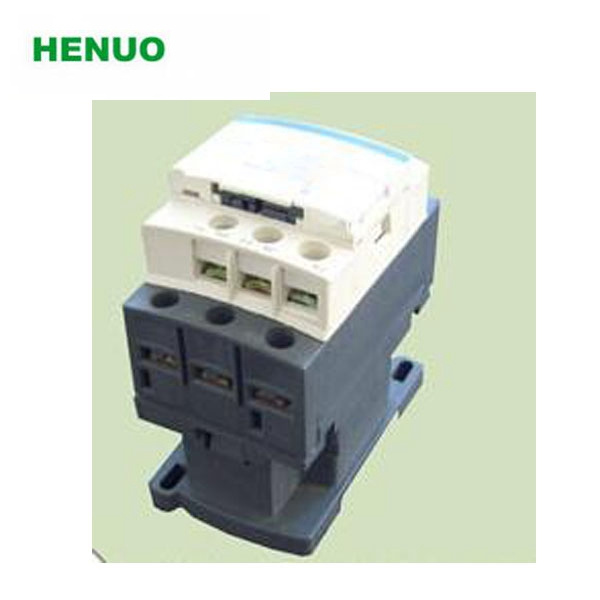

China High Quality LC1-D32 Cjx2-D32 AC Contactor with Silver Contact
| Price: |
US $ 1.55-1.7/Piece |
| Trade Terms: |
FOB,CFR |
| Min Order: |
200/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LC1-D32 CJX2-D32 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
LC1-D32 Cjx2-D32 |
| Rated Operation Voltage: |
380, 660V |
| Rated Operation Current: |
63A |
| Max. Power Of 3 Phase: |
1.5-7.5kw |
| Electrical Life: |
200000times |
| Operation Frequency: |
AC-3 1200t/H AC-4 |
| Place Of Origin: |
Zhejiang, China (Mainl) |
Product Description
LC1(CJX2) series AC Contactor
Application:
LC1(CJX2) series AC Contactor is suitable for using in the circuits the rated voltage up to 660V AC 50HZ or 60HZ, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, time delay & machine-interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4.
Specification:
Model | Rated current? AC3 Ue 440V | Rated power AC3??? Three-phase motor 040 |
| 220/240V | 380/400V | 415V | 500V | 600/690V | 1000V |
| | A | KW | KW | KW | KW | KW | KW |
| LC1-D09 | 9 | 2.2 | 4 | 4 | 5.5 | 5.5 | - |
| LC1-D12 | 12 | 3 | 5.5 | 5.5 | 7.5 | 7.5 | - |
| LC1-D18 | 18 | 4 | 7.5 | 9 | 10 | 10 | - |
| LC1-D25 | 25 | 5.5 | 11 | 11 | 15 | 15 | - |
| LC1-D32 | 32 | 7.5 | 15 | 15 | 18.5 | 18.5 | - |
| LC1-D38 | 38 | 9 | 18.5 | 18.5 | 18.5 | 18.5 | - |
| LC1-D40 | 40 | 11 | 18.5 | 22 | 22 | 30 | 22 |
| LC1-D50 | 50 | 15 | 22 | 25/30 | 30 | 33 | 30 |
| LC1-D65 | 65 | 18.5 | 30 | 37 | 37 | 37 | 37 |
| LC1-D80 | 80 | 22 | 37 | 45 | 55 | 45 | 45 |
| LC1-D95 | 95 | 25 | 45 | 45 | 55 | 45 | 45 |
| Number of the contact | 3P+NO |
| 3P+NC |
| Matched auxiliry contactor | LA1-DN02(2NC),LA1-DN11(1NO+1NC),LA1-DN20(2NO),LA1-DN22(2NO+2NC) |
| LA1-DN40(4NO),LA1-DN04(4NC),LA1-DN13(1NO+3NC),LA1-DN31(3NO+1NC) |
| Matched time delay auxiliary contact | Time delay after power on:LA2-DT0(0.1-3s),LA2-DT2(0.1-30s),LA2-DT4(10-180s) |
| Time delay after power off:LA3-DR0(0.1-3s),LA3-DR2(0.1-30s),LA3-DR4(10-180s) |
External dimensions & Installation dimensions:
Type | Amax | Bmax | Cmax | a | b | |
| LC1-D09/12 | 47 | 76 | 82 | 350.50 | 500.50/600.60 | 4.5 |
| LC1-D18 | 87 |
| LC1-D25 | 58 | 86 | 96 | 400.50 | 500.50/600.60 | 4.5 |
| LC1-D32 | 101 |
| LC1-D40/50/65 | 84 | 129 | 116 | 400.50 | 1000.70/1100.70 | 6.5 |
| LC1-D80/95 | 96 | 129 | 127 | 400.50 | 1000.70/1100.70 | 6.5 |
