| Prod Model: |
Fire Alarm Cable |
| Rated Voltage: |
300/500V |
| Conductor Class: |
Class 2 |
| Drain Wire: |
Steel Rope |
| Conformity Standard: |
RoHS |
| Free Sample: |
Available |
| Shielded Layer: |
Al Foil |
| Cable Flexible: |
Flexible |
| Application Scope: |
Fire Security/Industry/Construction |
| Jacket Color: |
Prior Red or as Per Customer's Request |
| Item Name: |
Fire Alarm Cable for Security Alarm System |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Application: |
Security System |
| Insulation Material: |
PVC |
| Certification: |
TUV, PSE, SAA, IEC |
| Conductor Material: |
Bare Copper |
| Material Shape: |
Round Cable |
| Range Of Application: |
Lsoh, Flame Retardant,Cold-Resistant |
| Brand: |
Jiukai, OEM |
Product Description

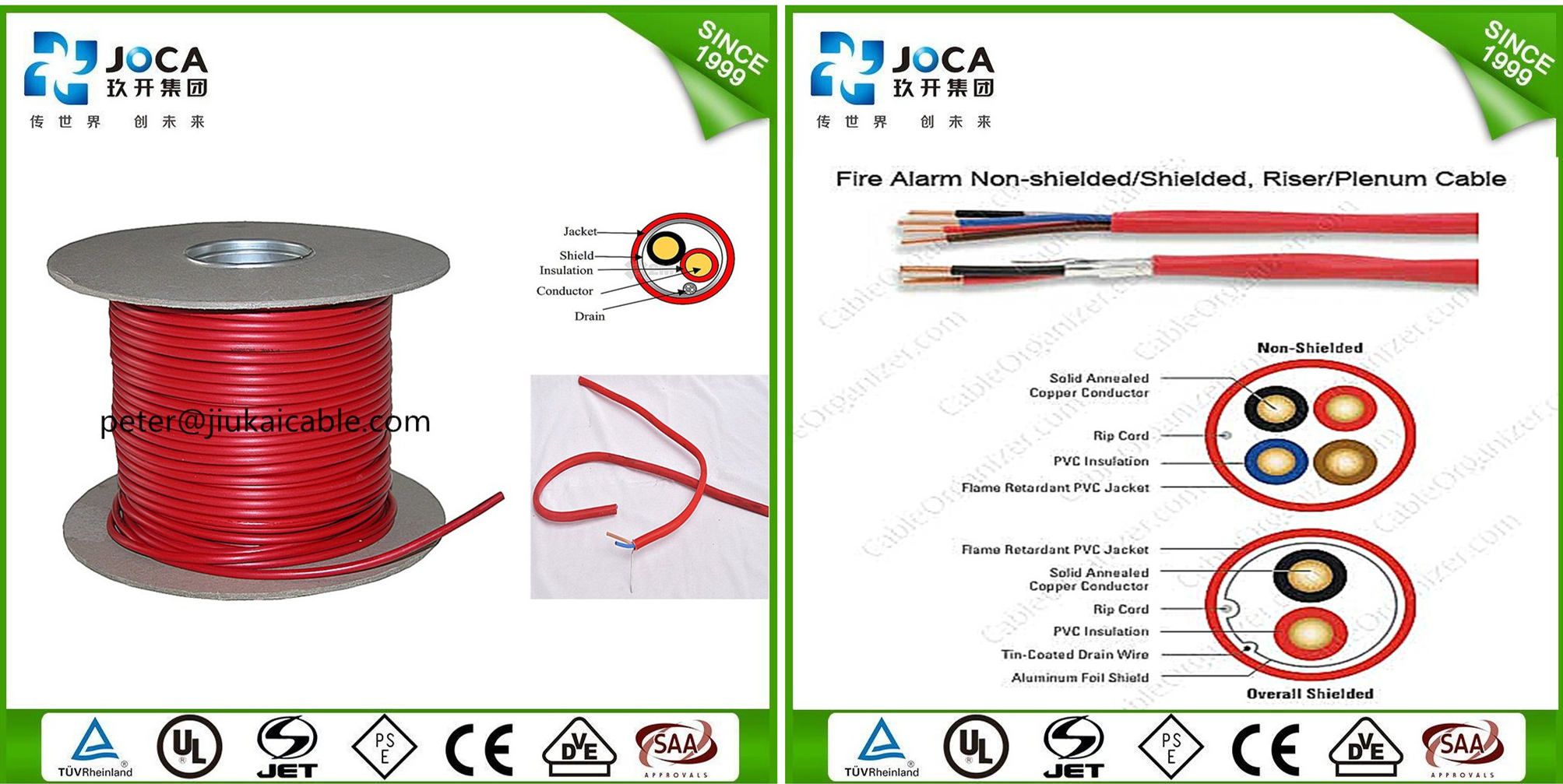

China Manufacture Fire alarm cable for security alarm system
Production DescriptionFire alarm cable Compliances:NEC Article 760
UL Type FPLP (UL: 75°C, 300V)
California State Fire Marshall Approved
Designed to meet NFPA 262 and CSA FT-6 Steiner Tunnel Fire Tests for Plenum Applications.Fire alarm cable Construction:- Conductor:
Solid Bare Copper, Fully Annealed per ASTM B3
- Insulation:
Premium Grade, Color-Coded, Polyvinylchloride (PVC)
Color Code Chart for Unshielded Plenum fire alarm cable (FPLP Cable).
| Wire | Color | Wire | Color |
| 1st | Black | 4th | Blue |
| 2nd | Red | 5th | Orange |
| 3rd | Brown | 6th | Yellow |
Red Premium-Grade Polyvinylchloride (PVC)
Temperature Range: 0°C to +75°C
Sequential footage markings to facilitate installation
Includes ripcord

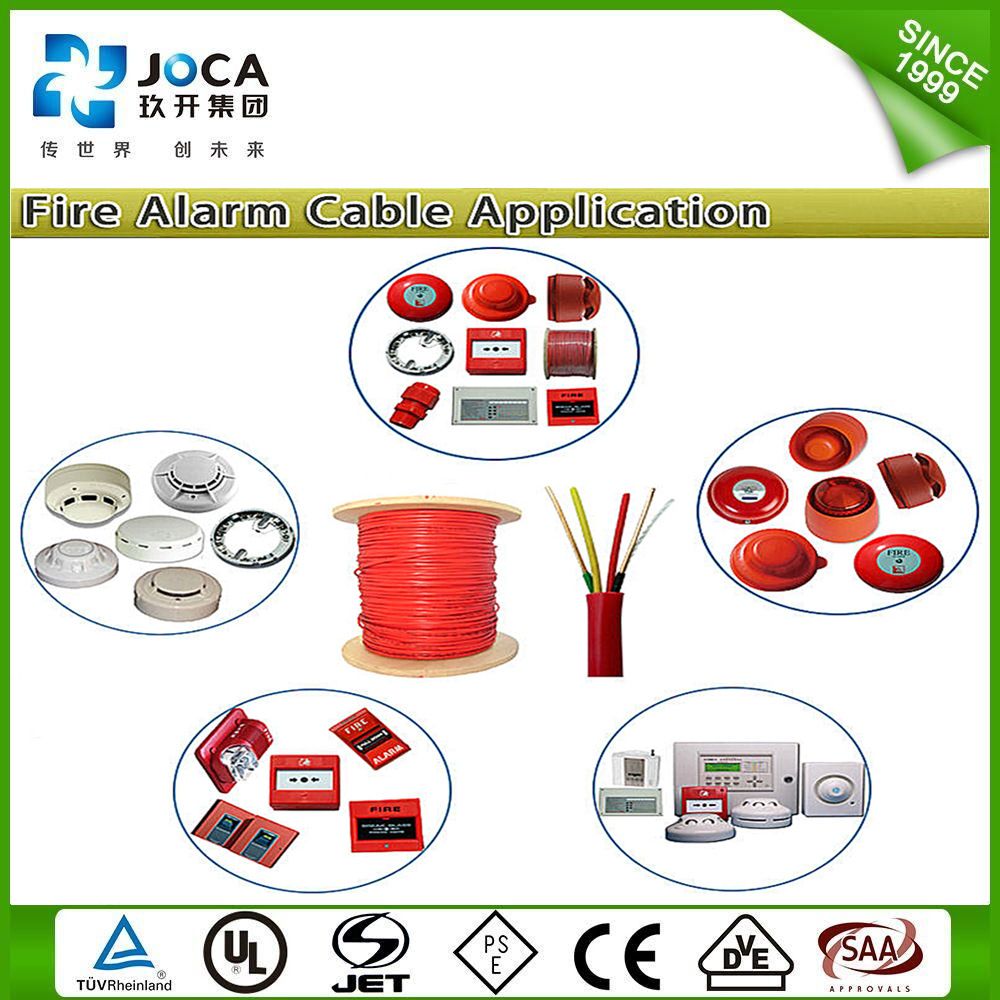

Fire alarm cable Applications:
Wiring of fire alarms
Smoke detectors
Voice communications
Burglar Alarms
Fire protective circuits
Suggested Voltage Rating: 300 Volts
Specification&Parameters for Fire alarm cable for security alarm system| Wire & Cable Category | Remee Product Type | Remee Wire & Cable Product Description |
| Fire Alarm Cable | 12 Gauge | 12-2 Shielded Plenum |
| Fire Alarm Cable | 12 Gauge | 12-2 Unshielded Plenum |
| Fire Alarm Cable | 14 Gauge | 14-2 Shielded Non-Plenum |
| Fire Alarm Cable | 14 Gauge | 14-2 Shielded Plenum |
| Fire Alarm Cable | 14 Gauge | 14-2 Unshielded Non-Plenum |
| Fire Alarm Cable | 14 Gauge | 14-2 Unshielded Plenum |
| Fire Alarm Cable | 14 Gauge | 14-4 Unshielded Plenum |
| Fire Alarm Cable | 14 Gauge | 14-6 Unshielded Plenum |
| Fire Alarm Cable | 16 Gauge | 16-2 Shielded Non-Plenum |
| Fire Alarm Cable | 16 Gauge | 16-2 Shielded Plenum |
| Fire Alarm Cable | 16 Gauge | 16-2 Unshielded Non-Plenum |
| Fire Alarm Cable | 16 Gauge | 16-2 Unshielded Plenum |
| Fire Alarm Cable | 16 Gauge | 16-4 Unshielded Non-Plenum |
| Fire Alarm Cable | 16 Gauge | 16-4 Unshielded Plenum |
| Fire Alarm Cable | 18 Gauge | 18-2 Shielded Non-Plenum |
| Fire Alarm Cable | 18 Gauge | 18-2 Shielded Plenum |
| Fire Alarm Cable | 18 Gauge | 18-2 Unshielded Non-Plenum |
| Fire Alarm Cable | 18 Gauge | 18-2 Unshielded Plenum |
| Fire Alarm Cable | 18 Gauge | 18-4 Shielded Plenum |
| Fire Alarm Cable | 18 Gauge | 18-4 Unshielded Non-Plenum |
| Fire Alarm Cable | 18 Gauge | 18-4 Unshielded Plenum |
| Fire Alarm Cable | 22 Gauge | 22-4 Unsehielded Non-Plenum |

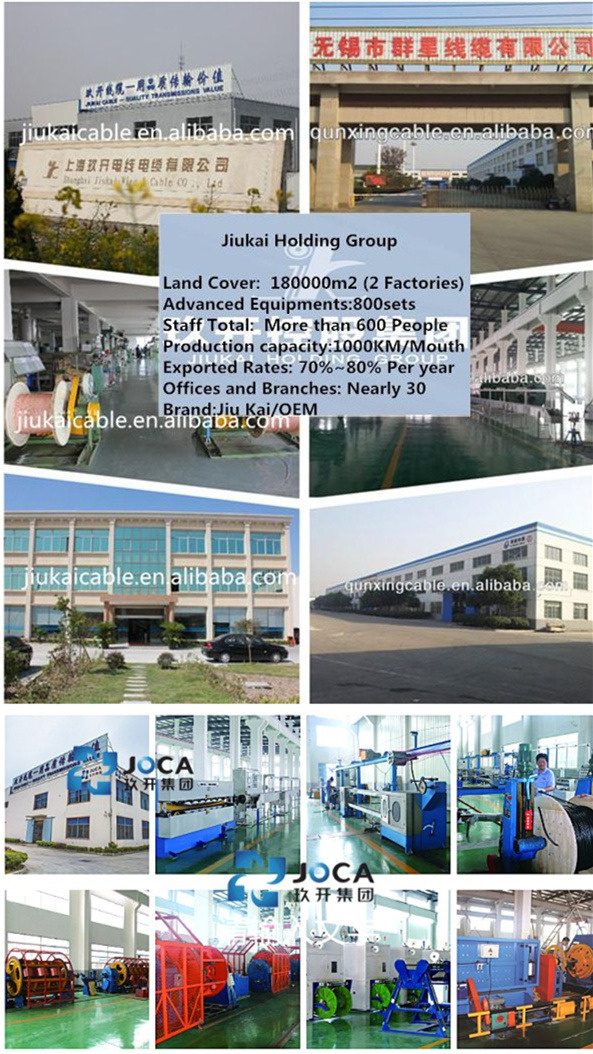

Group Profile JOCA holding group is an enterprise group,integrated research,manufacture&trade. The group has he group total capital RMB 250million&o occupied area 1800 thousand sqm including building area 1000 thousand sqm. The group has more than 800 sets nowadays domestic&foreign advanced cable equipment, yearly production capacity RMB 1.6 billion, 600 employees and nearly domestic& overseas representative offices or branch companies. Subsidiary company Shanghai Jiukai Wire&Cable Co.,Ltd, Jiukai Communication Technology(Shanghai)Co.,Ltd.&Wuxi City Qunxing Wire&Cable Co.,Ltd. are fully invested Wholly owned companies by JOCA group in cable, telecommunication&integrated general wiring industry.
We mainly produce 10 categories(thousands of kinds)cables, such as audio&video cable, elevator cable, data cables,computer cable, CAT5E LAN cable, CAT6E cable, solar PV cable, UL Wire,flexible cable and special cable.
With so many years' manufacturing experience, our cables are well sold to America, Europe,Middle-east, Southeast Asia and Africa. And all our cables has already got the certificates of national or international professional testing organizations, such as China CCC certificate, US UL certificate, European Union CE Certificate, German TUV, Quality system certification certificate ISO9001:2000. And we get the honors of "Recontract And Trustworthy Enterprise", "Measurement Qualified Enterprises","China Top Brand" and "China Cable Manufacturer TOP100.
Main Products1.Solar Cable2.IP67 MC4 Connector3.Elevator Cable4.TPS Cable5.Coxial Cable6.Flexible Power Cable 0.6/1kv7.CE Sheathed Cable8.UL&CE Standard WireAdvantages1.Large Scale Factory-Encolsed Company Information File.2.Complete Qualified Approvals.3.OEM, Quality is guaranteed.4.Wire&Cable with High Quality&Competitive Price.5.Import-Exported Operating Licence.6.Short Dlivery Time.Packing&Shipping of China Manufacture Fire alarm cable for security alarm system
Our Service1. OEM Manufacturing welcome: Product, Package... 2. Sample order .3. We will reply you for your inquiry in 24 hours.4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solutions for you.FAQQ1. What is your terms of packing?A: Generally, we pack our goods in wooden pallet or wooden case. And we aslo can put your brand or LOGO on packaging after getting your authorization letters.Q2. What is your terms of payment?A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.Q3. What is your terms of delivery?A: EXW, FOB, CFR, CIF, DDU.Q4. How about your delivery time?A: Generally, it will take about 10-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.Q5. Can you produce according to the samples?A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.Q6. What is your sample policy?A: We can supply free sample if we have ready parts in stock.Q7. Do you test all your goods before delivery?A: Yes, we have 100% test before deliveryQ8: How do you make our business long-term and good relationship?A:1. We keep good quality and competitive price to ensure our customers benefit ; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.Contact Us
China Manufacture Fire alarm cable for security alarm system
"...All the cables are certificated by CCC, and some are listed by UL, VDE, TUV, we look forard to more scale co-operation with Jiukai as their good quality items&competitive price..."
----Alex Jones, G. M of Saudi Cable Wholesaler
Jiukai holding group is a collection of science, industry and trade as one of the enterprise group. Group total registered capital of 250 million yuan, covers an area of 180000 square meters, construction area of 100000 square meters. Group have cables in today's domestic and foreign advanced equipment, more than 800 sets, the annual production capacity of 1.6 billion yuan, staff more than 600, national and over seas has nearly 30 offices or branches. Group core subsidiary Shanghai jiukai wire and cable Co., Ltd., Jiukai communication technology (Shanghai) Co., Ltd., Wuxi qunxing wire cable Co., Ltd.
Shanghai Jiukai Wire & Cable Co., Ltd is a professional manufacturer of wires & cables, including Electrical Cable, Low Voltage/Medium Voltage/ High Voltage Power Cable, Speaker Cables, Telephone Cable, RF Cable, Solar Cable, Building Wire, UL approved Cable, CE approved Cable, Welding Cable, Submersible Pump Cable. Conductor materials are varied from tinned copper, bare copper, CCA, CCS, aluminium. Insulation & jacket materials are available for PVC, PE, XLPE, Rubber, silicon. Rated voltages are for 300V below, 300/300V, 300/500V, 45/750V, 600/1000V, 3.6/6KV, 10KV, 26/36KV and 36KV above.
