China Supplier Mini Pneumatic Cylinder Micro Air Cylinder

Name: China Supplier Mini Pneumatic Cylinder Micro Air Cylinder
Brand: all-electronics-online.com
SKU: 726189362
Availability: InStock
Rating: 5 (102 reviews)

Price:	US $ 1-5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

china supplier mini pneumatic cylinder micro air cylinder

Product Features
1.Manufactured by our enterprise.

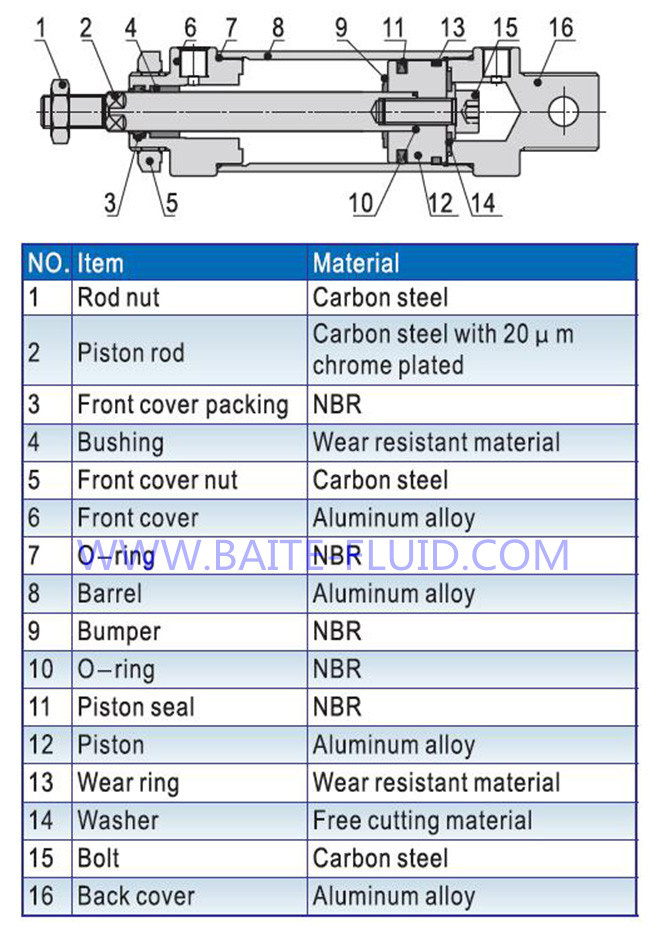

2.Front and back cover and cylinder tube are connected by threads.
3.Piston adopts heterogeneous two-way seal structure. It has compact size and has the function of grease reservation.
4.Front cover adopts self-lubrication bearing guide that has good performance of lubrication and guide.
5.There are several modes of back cover, which makes the installation of cylinder more convenient
6.There are cylinders and mounting accessories with several specifications for your choice.
Product specifications

Bore Size(mm)	16	20		25	32	40	50	63
Acting Type	Double Acting Type
	Single Acting Type
Fluid	Air(to be filtered by 40um filter element)
Operating Pressure	0.15-1.0Mpa(0.20-145Psi)
TemperatureºC	-20 - +70
Proof Pressure	1.5Mpa(215Psi)
Speed Range (mm/s)	Double Acting Type:30-500 Single Acting Type:50-500
Cushion type	Bumper
Port Size	M5*0.8		1/8"				1/4"

Product Description

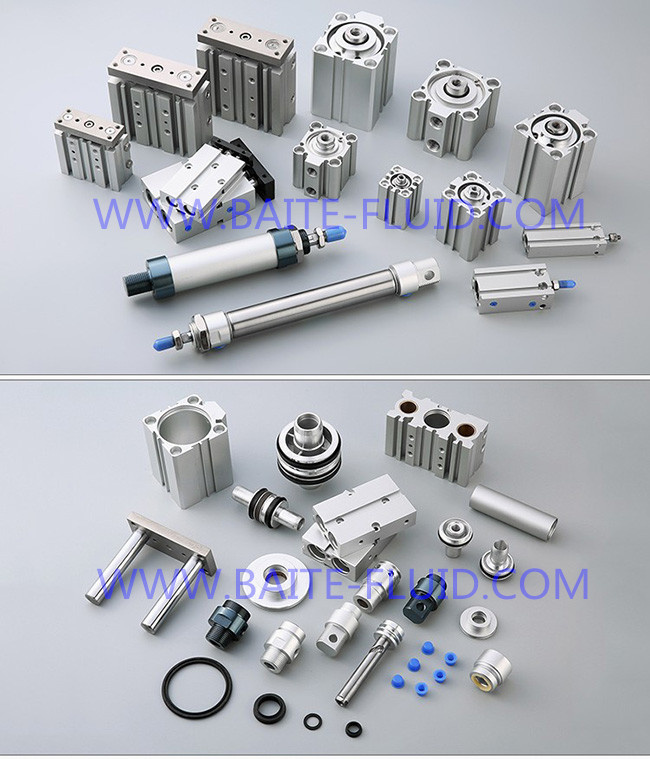

Product Show

Related Products

Production Workshop

Quality Assurance
Main Equipment:
automatic coil winding machine, precision automatic die-casting machine, precision extrusion machine, forging machine, CNC machine, milling machine, turning and milling machine, four-axle CNC milling machine, injection machine, vulcanizing machine, surface treatment, electro coating line, automatic painting line, sealing parts pressing machine, as well as 200 testing devices like projectors, direct-reading spectrometer, 3D measuring apparatus, salt spray testing machine, and 10 automatic processing lines.
Perfect Inspection Process:
Raw material inspection (5steps)- Raw materials testing is to ensure the raw material conforming to the order requirements.
Process testing(10steps)-Each processing step testing is to guarantee each step product qualified.
Factory testing(6steps)-Assure 100% product qualified rate to meet customer's requirements
Contact Us

Prod Model:	mini pneumatic cylinder BTF-PC-021
Stroke:	5-3000 mm
Working Pressure:	0.5-10 Bar
Working Temperature:	-20deg--80deg
Model Type:	Compact Air Cylinder
Bore Diameter(mm):	32-40-50-63-80-100-125-160-200-250-320mm
Cylinder Action:	Single Acting or Double Acting
Operating Medium:	Filtered Compressed Air, with or Without Lubricati
Type Standard:	ISO15552,ISO6431,DIN
Name:	Mini Pneumatic Cylinder Micro Air Cylinder
Material:	Aluminum
Structure:	Piston Cylinder
Power:	Pneumatic
Standard:	Standard
Pressure Direction:	Double-acting Cylinder

Shanxi Baite Fluid Machinery Co., Ltd ( Baite-Fluid, BTF ) is one of the professional domestic and foreign manufacturer and trader in forgings, pneumatic products and machined parts. Baite-Fluid is located in Shanxi Province, in north area of China and has been served over 10 years with rich resources of industrial raw material & power supply in a variety of industries. The company has always been to innovation management and technology, keeping the management, technical level and quality level with the world.

Our products are as below:

1. Standard Flanges.

2. Wind tubine tower connecting flange, wind power tower flanges.

3. Forged Steel Rings, seamless steel rolled rings.

4. Various of large forging parts, large size flange for GB, ANSI, DIN, JIS, EN1092-1 standard and OEM drawing accordingly.

4. Pneumatic cylinder, solenoid valve, manifold, FRL and other pneumatic tube and fittings.

5. Machinery parts.

6. Stamped parts.

7. Oil lubricator system.

They are widely used in power plants, petroleum, chemical industry, building materials, water treatment, urban construction and other industries. The products are well solid in domestic and foreign to get the praise from users.

Today our aim is to provide all of our customers with VALUE of the products instead of only low prices. Based on years of experience, fluent communication and professional quality control, we guarantee on time response, on time delivery and cost saving to meet customers' expectation. In a word, you can find one station service here for 24 hours.

Welcome to contact us right away for more information, our team will be always ready to prepare a quotation for your present or future projects.
