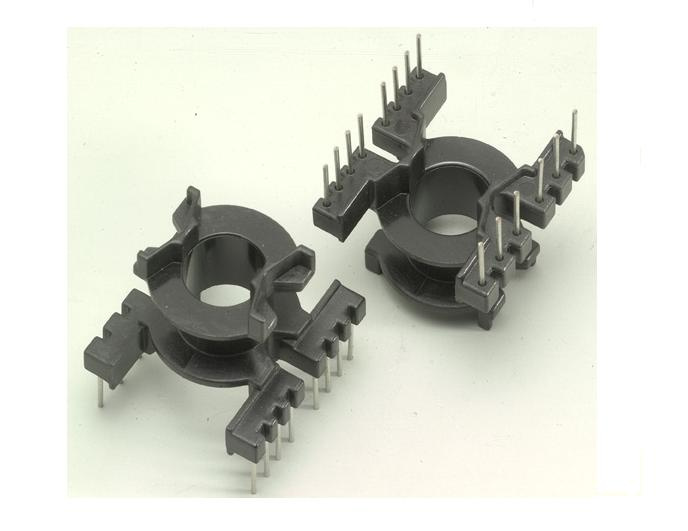

Chinese P[Owerful Transformer Magnetic Bobbin Pq

Name: Chinese P[Owerful Transformer Magnetic Bobbin Pq
Brand: all-electronics-online.com
SKU: 612935514
Availability: InStock
Rating: 5 (53 reviews)

Price:	US $ 0.01-1/Piece
Trade Terms:	FOB
Min Order:	5000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Bobbin Pq

General Description

1. Bobbin PQ conformation is horizontal with through-holes; Bobbin is made of thermoset and thermoplastic. The coilformers are made in gfr Polyamide PA66 of type p6g (RTI long-range temperature +125º C). Pin material is tin bronze, tinned for solder-pins and brass, tinned for solder-tags. Max. Solder temperature +350º C, 2 sec

2. The coil formers are suitable for automatic winding on computer controlled machines. Surface mount is not available. Large terminals allow larger diameter magnet wire.

Applications:
Bobbin PQ Series are for Ferrite Core used in Switching Power Transformers, Switch Transformer, Inductor, Coil, Filter, etc.

Grade	Max. Operational temperature
N35, N38, N40, N42, N45, N48, N50, N52	80° c
N33SH, N35SH, N38SH, N40SH, N42SH	150° c
N28UH, N30UH, N33UH, N35UH, N38UH	Up to 180° c
N28EH, N30EH, N33EH, N35EH	Up to 200° c
N30AH, N33AH, N35AH	Up to 230° c

For more detail info, please feel free to visit our website or inquire us at any of your convenience.

www.magnetequip.com

Prod Model:	yx
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Composition:	Machine
Type:	Fixed Inductor
Structure:	Bobbin

Xiamen Yuxiang Magnetic Materials Ind. Co., Ltd. is located in the beautiful coast of southeast sea. Established in 1997, we are an export-oriented enterprise. Now our company becomes an enterprise with advanced technology, owning two factories in China, both of which have their own R&D and QC departments, and are ISO9001: 2000 certified. We also have an office in Xiamen to provide you with prompt export support.

We are moving ahead with the aim of producing more advanced, more practical, and more competitively-priced products. We keep close track with the ever-changing trends in the industry, with the objective of spearheading our company in the market. We have an ambitious outlook towards expansion, and operate our business with diligence and sincerity. Our more than 20 years of technical know-how and experience have been keeping us ahead in the industry. We have been in the OEM business for five years and are ready for your orders and special requirements.

We supply hard magnets and magnetic materials from China. Our magnets include ferrite magnets, flexible magnets, NdFeB magnets, AlNiCo magnets, SmCo magnets, rubber magnets, refrigerator fridge magnets, magnetic powder, magnetic compound tesla meters & magnetizers, and magnetic jewelry. We also supply ferrite cores, MnZn cores and NiZn cores for transformers and coils, loudspeaker magnets, motor magnets, and refrigerator gasket stripes.
