| Prod Model: |
ZVF300-G3R7S2S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Protection Class: |
IP20 |
| Environment Temperature: |
-25~+40 |
| Power: |
3.7kw |
| Net Weight: |
14kg |
| Gross Weight: |
16kg |
| Packing Size: |
505*455*265mm/6PCS |
| Input Voltage: |
Single Phase 380V |
| Output Voltage: |
Three Phase 0-Input AC Voltage |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
High Carrier Frequency PWM Control |
| Main Circuit Type: |
Current |
| Application: |
Water Supply, Mine, Electrical Motor Industry etc |
| Brand: |
Chziri |
Product Description
Main Features:

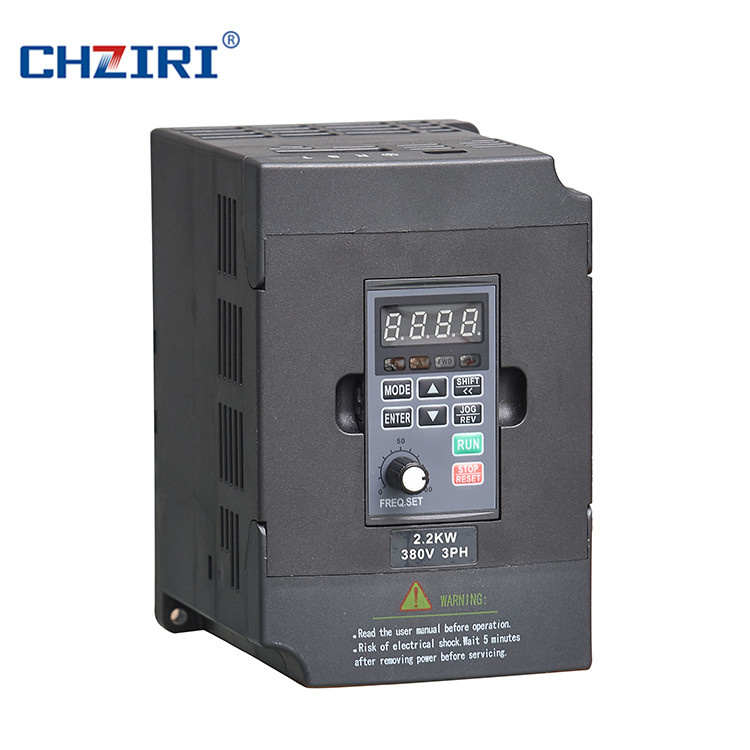

ZVF300 Series inverters are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors.
1. Output frequency: 0-600Hz.
2. Multiple password protection mode
3. Remote control operation keypad, convenient for remote control.
4. V/F curve &multi-inflection point setting, flexible configuration.
5. Keyboard parameter copy function. Easy to set the parameters for multi-inverters.
6. Wide industry application. To expand special function according to different industries.
7. Multiple hardware and software protection and optimized hardware for anti-interference technology.
8. Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
9. Unique adaptive control technology. Auto current limiting and voltage limiting and under-voltage restrain.
10. Optimized external installation and internal structure and independent air flue design, fully enclosed electrical space design.
11. Output automatic voltage regulation function. (AVR), automatically adjust the output pulse width. To eliminate the influence of the grid change on load.
12. Built-in PID regulation function to facilitate the realization of closed loop control of the temperature, pressure and flow. And reduce the cost of the control system.
13. Standard MODBUS communication protocol. Easy to achieve the communication between PLC, IPC and other industrial equipments.
| | Power | Current | Dimension (mm) | Figure |
| (kW) | |
| Inverter Model | G/P | (A) | H | H1 | W | W1 | D | d |
| ZVF300-G0R7T4MD | 0.75 | 2.5 | 185 | 175 | 118 | 108 | 155 | 4 | Fig.1 |
| ZVF300-G1R5T4MD | 1.5 | 3.7 |
| ZVF300-G2R2T4MD | 2.2 | 5 |
| ZVF300-G3R7/P5R5T4MD | 3.7/5.5 | 9.0/13 | 215 | 205 | 145 | 135 | 178 | 4 |
| ZVF300-G5R5/P7R5T4MD | 5.5/7.5 | 13/17 |
| ZVF300-G7R5/P011T4MD | 7.5/11 | 17/25 | 265 | 253 | 185 | 174 | 200 | 5.5 |
| ZVF300-G011/P015T4MD | 1115 | 25/33 |
| ZVF300-G015/P018T4MD | 15/18.5 | 33/37 | 380 | 360 | 220 | 140 | 210 | 6 | Fig.2 |
| ZVF300-G018/P022T4MD | 18.5/22 | 37/45 | 460 | 443 | 260 | 177 | 248 | 6 |
| ZVF300-G022/P030T4M | 22/30 | 45/60 |
| ZVF300-G030/P037T4M | 30/37 | 60/75 |
| ZVF300-G037/P045T4M | 37/45 | 75/90 | 620 | 603 | 265 | 182 | 280 | 8 |
| ZVF300-G045/P055T4M | 45/55 | 90/110 |
| ZVF300-G055/P075T4M | 55/75 | 110/150 |
| ZVF300-G075/P090T4M | 75/90 | 150/176 | 720 | 702 | 365 | 240 | 340 | 9 |
| ZVF300-G090/P110T4M | 90/110 | 176/210 |
| ZVF300-G110/P132T4M | 110/132 | 210/253 |
| ZVF300-G132/P160T4M | 132/160 | 253/300 | 1270 | | 574 | | 380 | | Fig.3 |
| ZVF300-G160/P185T4M | 160/185 | 300/340 |
| ZVF300-G185/P200T4M | 185/200 | 340/380 |
| ZVF300-G200/P220T4M | 200/220 | 380/420 | 1700 | | 710 | | 410 | |
| ZVF300-G220/P250T4M | 220/250 | 420/470 |
| ZVF300-G250/P280T4M | 250/280 | 470/520 |
| ZVF300-G280/P315T4M | 280/315 | 520/600 |
| ZVF300-G315/P350T4M | 315/350 | 600/640 | 1900 | | 800 | | 410 | |
| ZVF300-G350/P400T4M | 350/400 | 640/690 |
| ZVF300-G400/P500T4M | 400/500 | 690/860 |
| ZVF300-G500/P560T4M | 500/560 | 860/950 |
| ZVF300-G560/P630T4M | 560/630 | 950/1100 |
| ZVF300-G630T4M | 630 | 1100 |
