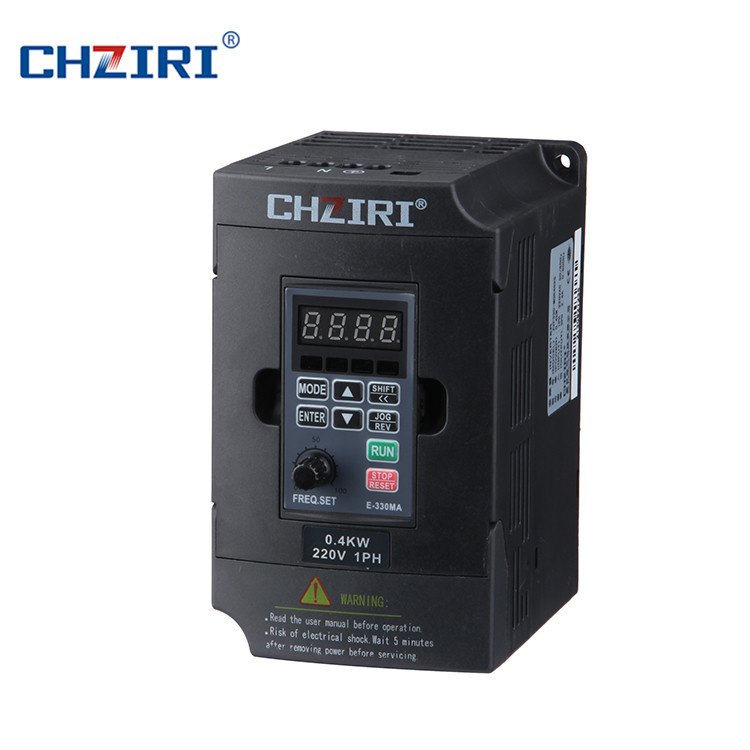

ZVF300 Series High Performance vector control frequency inverter ZVF300 series high Performance vector control frequency inverter is ZIRI Electrical developed the new type frequency inerter . General type and fan/pump type are in one model . support Modbus communication protocol. can be widely used to control and drive the speed of induction motors and synchronous motor . superior performance, abundant functions, easy operation, high accountability and a complete range of specifications.Can fully meet the individual needs of customers in the industry.Specification
| Input Voltage (V) | Output Voltage(V) | Power Range (kW) |
| Single phase 220V± 20% | Three phase 0~Input Voltage | 0.4kW~3.7kW |
| Three phase 380V ± 20% | Three phase 0~Input Voltage | 0.75kW~630kW |
| Overload capacity :150% 1 minute; 180% 1 second;200% transient protection |
Main Features of frequency inverter
ZVF300 Series frequency inverter are high performance open loop vector inverters for controlling asynchronous AC induction motors and permanent synchronous motors . - Output frequency :0-600Hz.
- Multiple password protection mode
- Remote control operation keypad, convenient for remote control.
- V/F curve &multi-inflection point setting, flexible configuration .
- Keyboard parameter copy function . easy to set the parameters for multi-inverters .

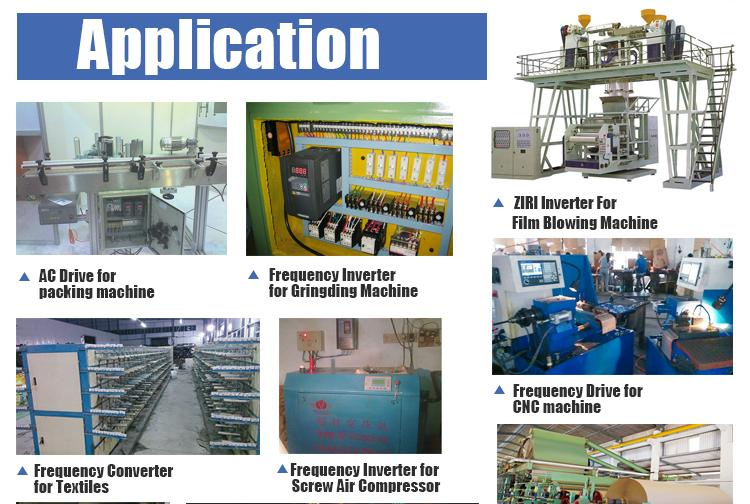

- Wide industry application . to expand special function according to different industries.
- Multiple hardware and software protection and optimized hardware for anti-interference technology.
- Multi-step speed and wobble frequency running (external terminal 15 steps speed control).
- Unique adaptive control technology . Auto current limiting and voltage limiting and under-voltage restrain .
- Optimized external installation and internal structure and independent air flue design , fully enclosed electrical space design .
- Output automatic voltage regulation function .(AVR),automatically adjust the output pulse width . to eliminate the influence of the grid change on load .
- Built-in PID regulation function to facilitate the realization of closed loop control of the temperature ,pressure and flow . and reduce the cost of the control system .
- Standard MODBUS communication protocol . easy to achieve the communication between PLC,IPC and other industrial equipments.
Inverter Outline Dimension
Guide Model for Frequency Inverter
| Inverter Model | Power
(kW)
G/P | Current
(A) | Dimension (mm) | Figure |
| H | H1 | W | W1 | D | d |
| ZVF300-G0R4S2MD | 0.4 | 2.4 | 185 | 175 | 118 | 108 | 170 | 4 | Fig.1 |
| ZVF300-G0R7S2MD | 0.75 | 7.5 |
| ZVF300-G1R5S2MD | 1.5 | 7.0 | 185 | 175 | 118 | 108 | 190 | 4 |
| ZVF300-G2R2S2MD | 2.2 | 10 |
| ZVF300-G0R7T4MD | 0.75 | 2.5 | 185 | 175 | 118 | 108 | 170 | 4 | Fig.1 |
| ZVF300-G1R5T4MD | 1.5 | 3.7 |
| ZVF300-G2R2T4MD | 2.2 | 5.0 |
| ZVF300-G3R7/P5R5T4MD | 3.7/5.5 | 9.0/13 | 215 | 205 | 145 | 135 | 193 | 4 |
| ZVF300-G5R5/P7R5T4MD | 5.5/7.5 | 13/17 |
| ZVF300-G7R5/P011T4MD | 7.5/11 | 17/25 | 265 | 253 | 185 | 174 | 215 | 5.5 |
| ZVF300-G011/P015T4MD | 11/15 | 25/33 |
| ZVF300-G015/P018T4MD | 15/18.5 | 33/37 | 380 | 360 | 220 | 140 | 230 | 6 | Fig.2 |
| ZVF300-G018/P022T4MD | 18.5/22 | 37/45 |
| ZVF300-G022/P030T4M | 22/30 | 45/60 | 460 | 443 | 260 | 177 | 268 | 6 |
| ZVF300-G030/P037T4M | 30/37 | 60/75 |
| ZVF300-G037/P045T4M | 37/45 | 75/90 | 620 | 603 | 265 | 182 | 300 | 8 |
| ZVF300-G045/P055T4M | 45/55 | 90/110 |
| ZVF300-G055/P075T4M | 55/75 | 110/150 |
| ZVF300-G075/P090T4M | 75/90 | 150/176 | 720 | 702 | 365 | 240 | 360 | 9 |
| ZVF300-G090/P110T4M | 90/110 | 176/210 |
| ZVF300-G110/P132T4M | 110/132 | 210/253 |
| ZVF300-G132/P160T4M | 132/160 | 253/300 | 1190 | | 493 | | 390 | | Fig.3 |
| ZVF300-G160/P185T4M | 160/185 | 300/340 |
| ZVF300-G185/P200T4M | 185/200 | 340/380 |
| ZVF300-G200/P220T4M | 200/220 | 380/420 | 1600 | | 660 | | 415 | |
| ZVF300-G220/P250T4M | 220/250 | 420/470 |
| ZVF300-G250/P280T4M | 250/280 | 470/520 |
| ZVF300-G280/P315T4M | 280/315 | 520/600 |
| ZVF300-G315/P350T4M | 315/350 | 600/640 | 1750 | | 750 | | 470 | |
| ZVF300-G350/P400T4M | 350/400 | 640/690 |
| ZVF300-G400/P450T4M | 400/450 | 690/790 |
| ZVF300-G450/P500T4M | 450/500 | 790/860 | 1900 | | 950 | | 520 | |
Fig.4 |
| ZVF300-G500/P560T4M | 500/560 | 860/950 |
| ZVF300-G560/P630T4M | 560/630 | 950/1100 |
| ZVF300-G630T4M | 630 | 1100 |
CHZIRI Package
Why you choose the products from CHZIRI Electrical ?1.CHZIRI Electrical located in Liushi ,Wenzhou -Capital city of low voltage electrical products in China . There have many different factories produce low voltage electrical products .Such as fuses . circuit breakers . contactors . and pushbutton. you can buy complete components for automation system .2. Since 1998.CHZIRI Electrical begin to produce reducer and gear boxes . in 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and related products . 3.CHZIRI Electrical is frequency inverter and soft starter manufacturer .we have big stock in warehouse . so we can offer prompt delivery and professional technical support and fast after sale service .4.CHZIRI Electrical can also provide clients with customized control panel.Wecan design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram .5.CHZIRI Electrical also respectively obtained ISO9001, CE ,CCC certificates.6.CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time , ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.7.CHZIRI Electrical also go aboard to attend the fair every year .8. OEM service can be offered . 9. CHZIRI Electrical can offer the optional parts for frequency inverter .Such as braking unit .braking resistors .EMI Filter .Reactor . CHZIRI Electrical can offer the whole solution for automation system .CHZIRI Inverter and soft starter Sales 's Point .1. We are manufacturer . CHZIRI products are offered with big quantity with small profit . 2.Key parts are imported from Germany and Japan . Such as Infenion IGBT. Rubycon Capacitor or Nichincon capacitor , Chip: TI,ST,ON,. ADDA and ebmpapst fan .3. CHZIRI frequency inverter has the good effect energy conservation , fine speed adjustment performance , stable operation , stable operation , electrical machinery soft start, protect function and self diagnostics fault and other advantages.4.CHZIRI frequency inverter is suitable for all kinds of devices such as metallurgy, plastic, textile machinery , paper manufacturing machinery, food machinery, petrification equipment, drugs manufacture, steel and iron equipment , printing mechanism , packing machinery , blower fan, water pump,hoisting equipment , building materials and so on for driving and speeding control of AC asynchronous motor .5.CHZIRI Inverter and soft starter are certificated with CE.6.Warranty time :16 Months. If the products get damaged by quality problem within the warranty time .we will send you the spare parts for free . If the inverter caused improper and incorrect operation . we will we will not be responsible for the loss caused .7.CHZIRI inverter have built-in RS485 port .and support Modbus communication protocol. 8. CHZIRI frequency inverters and soft starters are easy and convenient to operate .9.CHZIRI inverter have the following protection function : Input phase loss protection, Over current protection ,Overload protection, Over voltage protection ,Under voltage protection, Over heat protection ect.10.Automatic energy-saving operation: Auto optimize V/F curve according to the load changes to realize the energy saving operation . 11.Auto voltage regulation (AVR):When the network voltage changes, it can regulate PWM output automatically to maintain constant voltage.12. Built-in PID: This can form a convenient closed-loop control system (CLCS)and is applicable to pressure control, flow control and other process control .For more details .Feel free to contact with ZIRI Electrical.
1. CHZIRI Electrical located in Liushi, Wenzhou -Capital city of low voltage electrical products in China. There have many different factories produce low voltage electrical products. Such as fuses. Circuit breakers. Contactors. And pushbutton. You can buy complete components for automation system.
2. Since 1998. CHZIRI Electrical begin to produce reducer and gear boxes. In 2003. CHZIRI Electrical begin to produce frequency inverter and soft starter and control panels and related products.
3. CHZIRI Electrical is frequency inverter and soft starter manufacturer. We have big stock in warehouse. So we can offer prompt delivery and professional technical support and fast after sale service.
4. CHZIRI Electrical can also provide clients with customized control panel. We

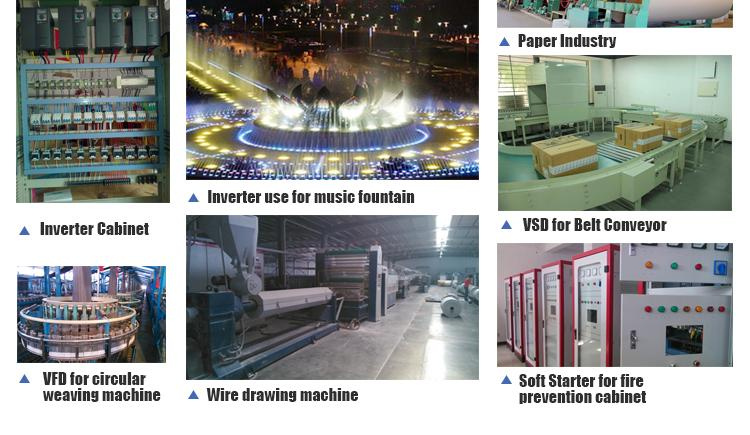

Can design MCC panel and inverter cabinet & soft starter cabinet according to clients the wiring diagram.
5. CHZIRI Electrical also respectively obtained ISO9001, CE, CCC certificates.
6. CHZIRI Electrical set up branch offices in more than 30 cities and established a perfect, professional and efficient sale-and-service system. At the same time, ZIRI Electrical also working up international sales net. CHZIRI products have been exported in large quantity to Europe, South America, Southeast Asia, Middle East.
7. CHZIRI Electrical also go aboard to attend the fair every year.
8. OEM service can be offered.

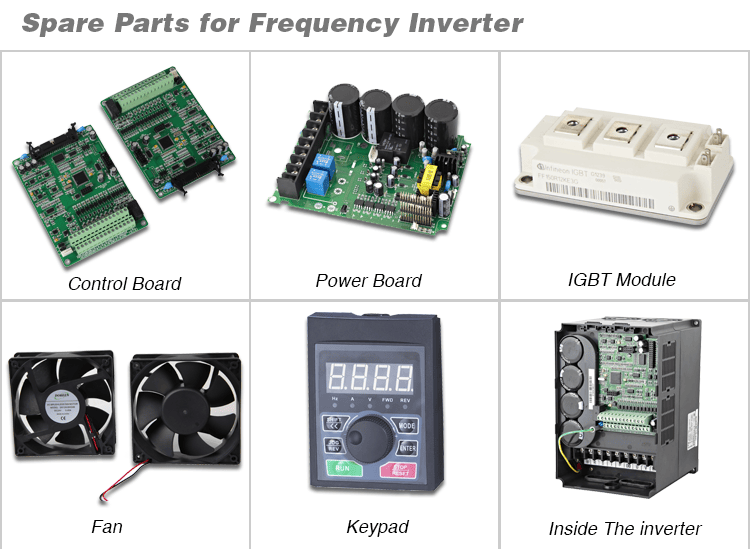

9. CHZIRI Electrical can offer the optional parts for frequency inverter. Such as braking unit. Braking resistors. EMI Filter. Reactor. CHZIRI Electrical can offer the whole solution for automation system.
10. CHZIRI Electrical adhere to the eximious tradition of technical innovation, continue to introduce new generation products to meet market demands. Make great strides forward gradually to high-end application domain, and strive to shoulder heavy responsibilities to create a full of hope for the future.
