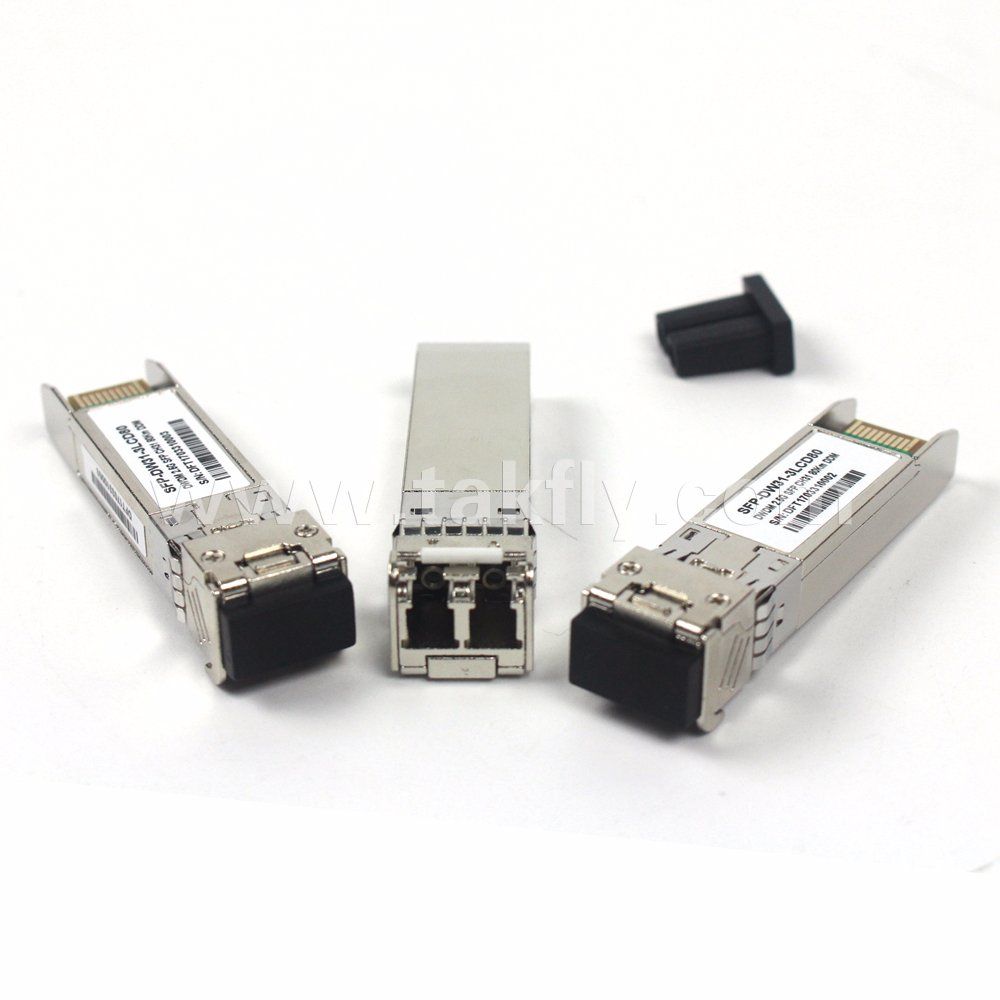

Cisco Compatible 10g 10-20km 1310nm SFP+ Transceiver Ddm
| Price: |
US $ 1-40/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
SFP |
| Item Name: |
SFP Transceiver Ddm |
| Working Rate: |
10g |
| Mode Type: |
Single Mode |
| Wavelength: |
1310nm |
| Reach Distance: |
10km |
| Operating Temperature: |
-10~70, Expand -40~85 |
| Customzied: |
Available |
| Usage: |
Laptop |
| Type: |
Wired |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
GS |
| Condition: |
New |
Product Description
Cisco Compatible 10g 10-20km 1310nm SFP+ Transceiver DdmSFP Optical Transceivers DDM are hot-swappable, compact media connectors that provide instant fiber connectivity for your networking gear. They are a cost effective way to connect a single network device to a wide variety of fiber cable distances and types.
What we can do for you?? Order inquiry: Keep working time from 8 AM to 23 PM to gurantee the first reply
to clients,and 24 hours no Cellphone power off
Order production: Keep very close touch with production department to gurantee the right delivery time to clients
Before shipment: Our sales would double check the order quantity,package and strength of cartons to avoid lost and damage
After shipment: Keep tracking shipping status and reporting to clients
Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR

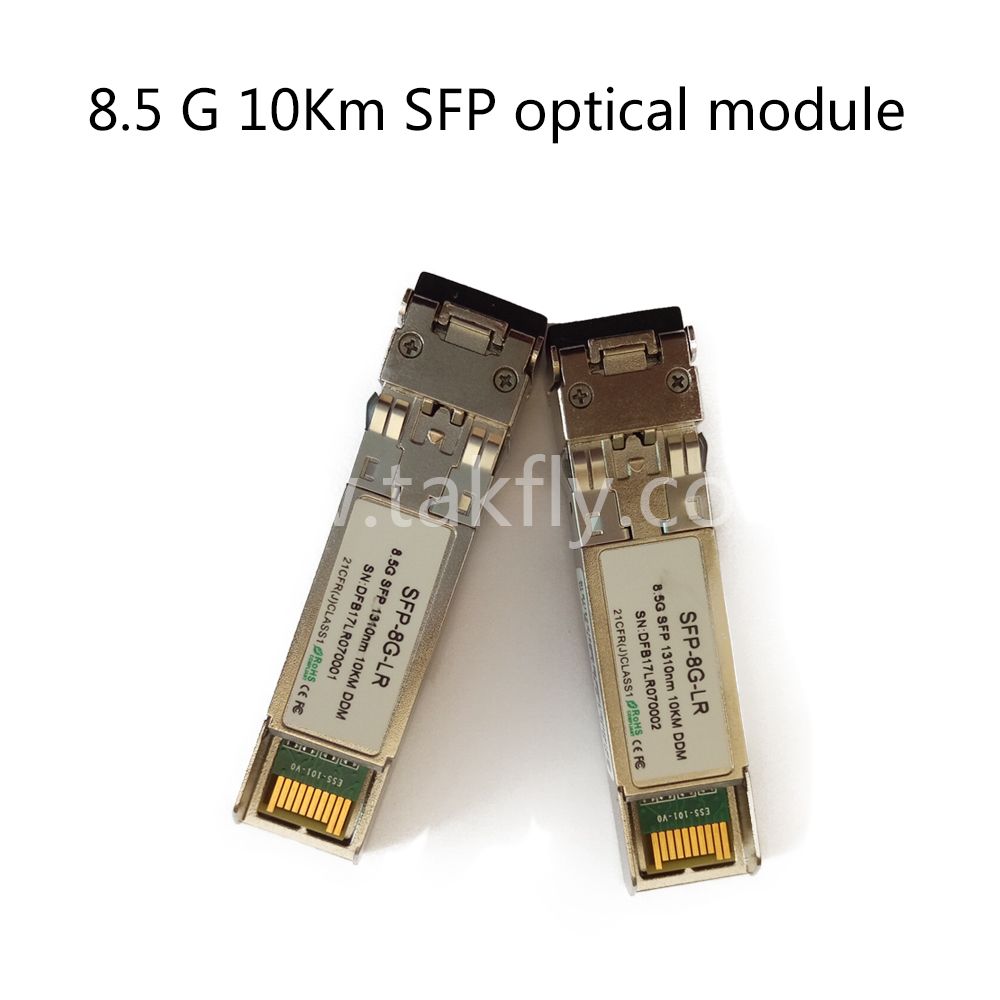

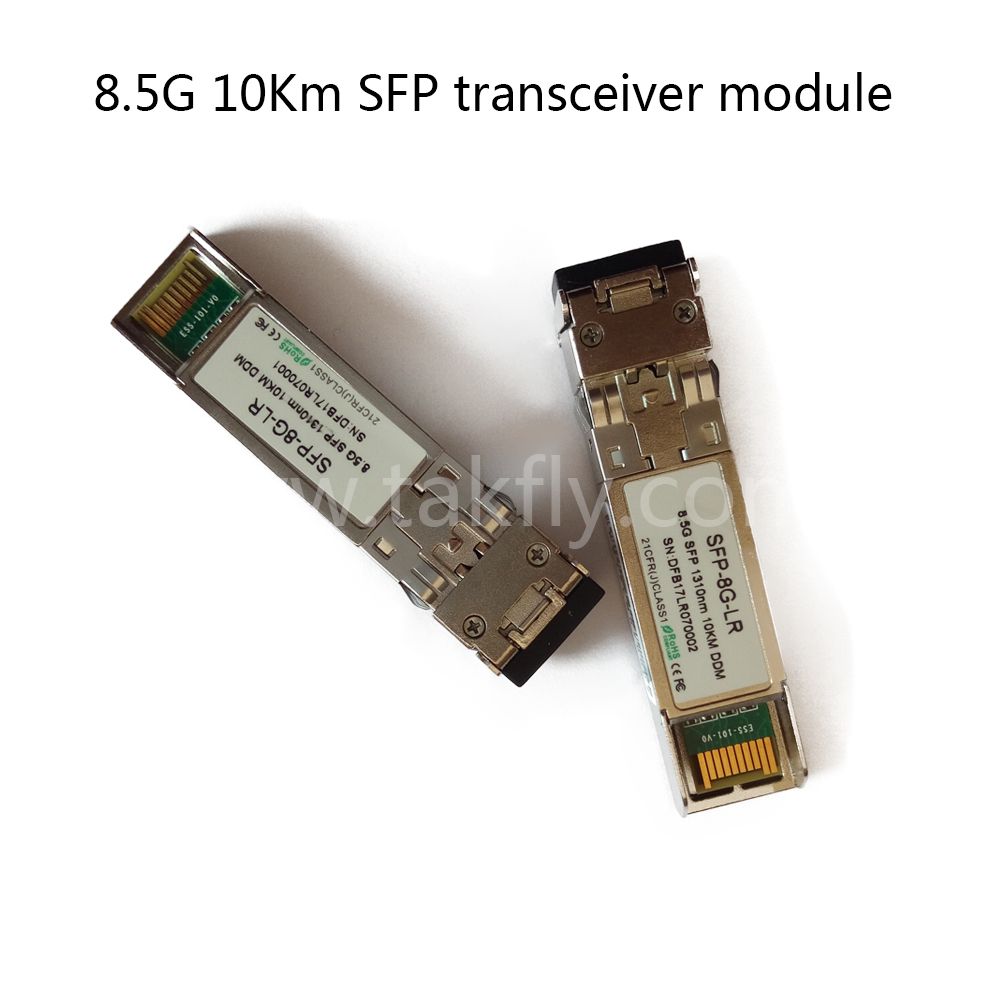

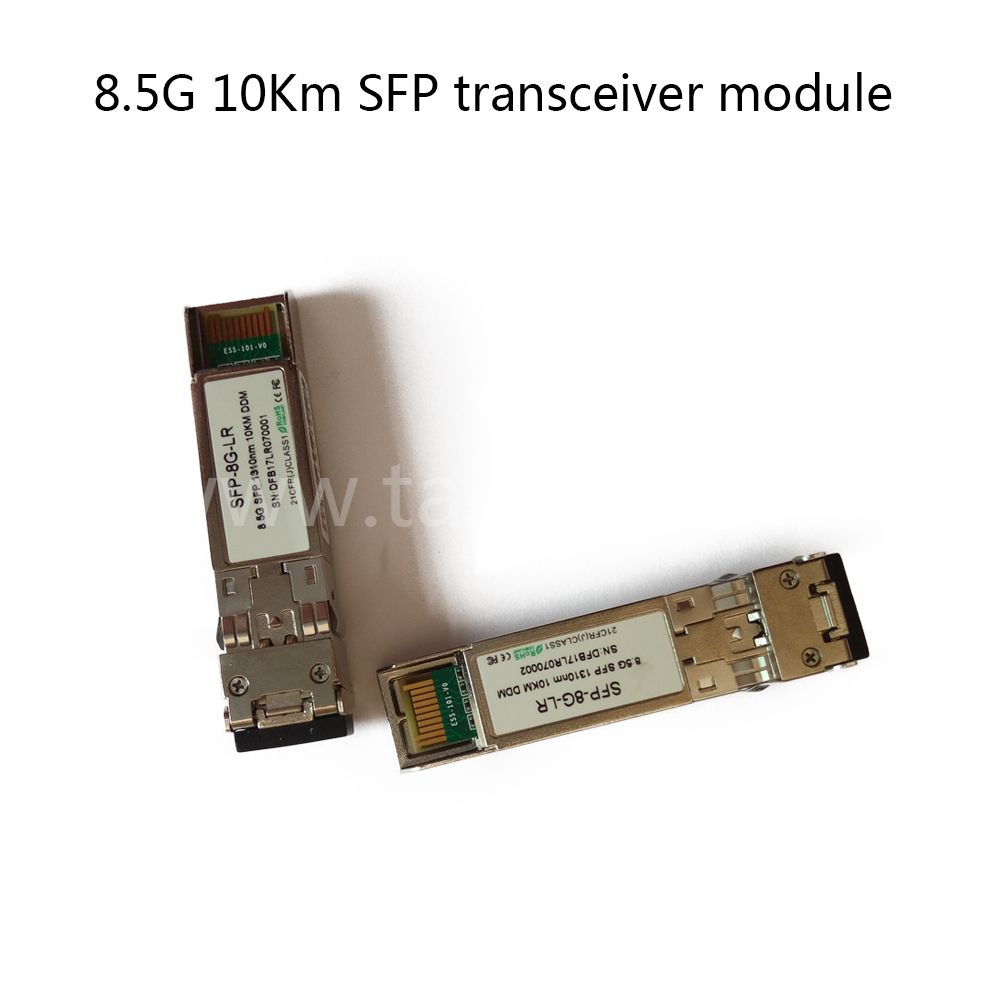

Takfly's DF-318G-LRC SFP+ transceivers are designed for use in Fibre Channel links up to 8.5 Gb/s data rate and up to 10 km link length. They are compliant with FCPI-4 Rev. 8.001 and SFF-8472 Rev 10.23, and compatible with SFF-84322 and applicable portions of SFF-8431 Rev. Takfly's DF-318G-LRC Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. 3.04. The product is RoHS compliant and lead-free per Directive 2002/95/EC5.ApplicationsTri Rate 1.0625/2.125/4.25/8.5Gbs Fiber Channel
Features1.Up to 8.5Gb/s bi-directional data links
2.Hot Pluggable SFP+ footprint
3.Built-in digital diagnostic functions
4.1310nm DFB laser transmitter

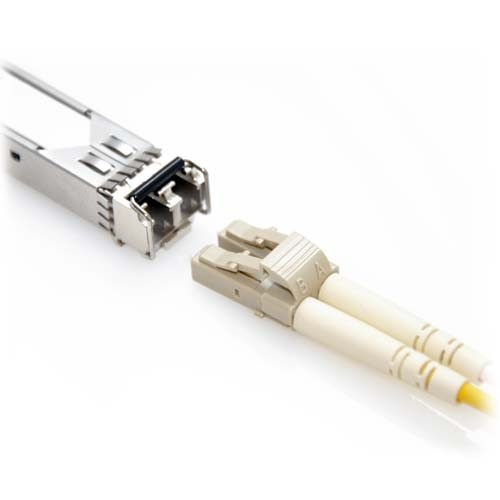

5.Duplex LC connector
6.RoHS compliant and Lead Free
7.Up to 10km on 9/125um SMF
8.Single 3.3V power supply
9.Operating case temperature: -10 to 70ºCDetail pic
Spec| Brand | Takfly or OEM |
| Place of origin | China |
| Condition | New |
| Form Factor | SFP+ |
| Wavelength: | 1310nm |
| Distance | 10KM |
| Data Rate (max) | 8.5Gb/s |
| Low End Case Temperature (°C) | -10°C |
| High End Case Temperature (°C) | 70°C |
| Diagnostics | Digital |
| Transmitter | VCSEL |
| Receiver | PIN |
| Voltage Supply | 3.3--5v |
| Connector | Dual LC |
| Warranty | 1 year |

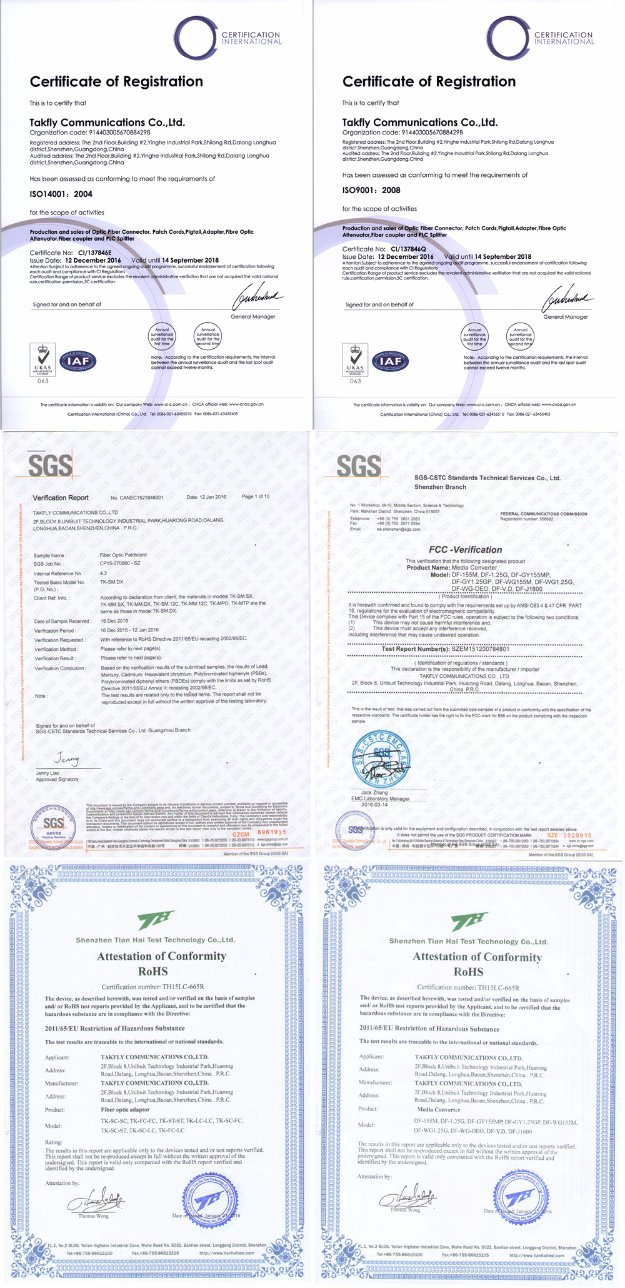

| Certificate | CE,FCC,RoHS |
| Compatible with | Huawei,ZTE,etc. |
| DDM | Yes |
| Time of delivery | Within 24 hours |

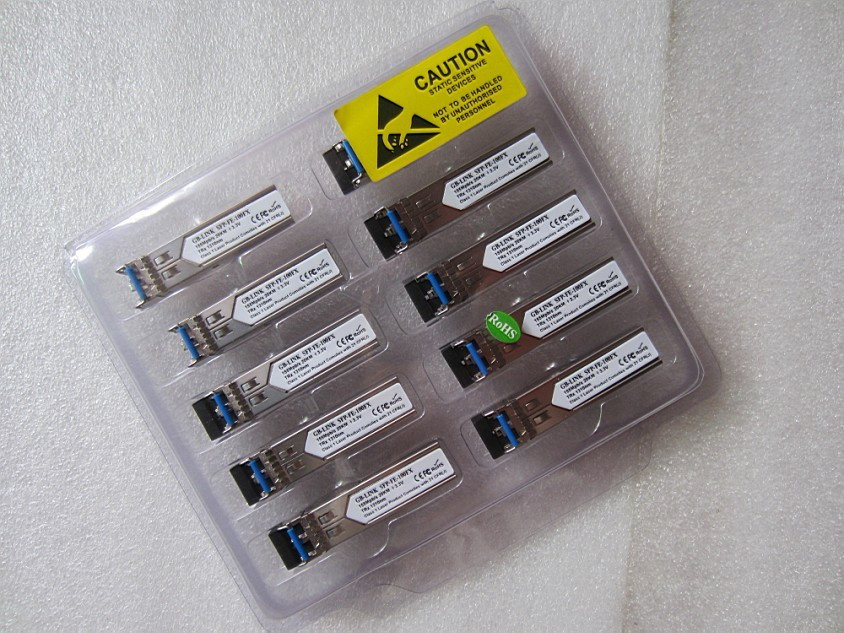

| Package | 10 pcs/plate |
Any doubt about SFP optical Transceiver,please leave me an inquiry or contact me directly.
