Prod Model: |
sfp module |
Item Name: |
SFP+ |
Working Rate: |
10g |
Mode Type: |
Single Mdoe |
Fiber Type: |
Dual Fiber |
Interface: |
LC |
Reach Distance: |
10km |
Ddm: |
Available |
Customized: |
Acceptable |
Usage: |
Laptop |
Type: |
Wired |
Support Network: |
Ethernet |
Information Content: |
Data |
Certification: |
GS |
Condition: |
New |
Product Description

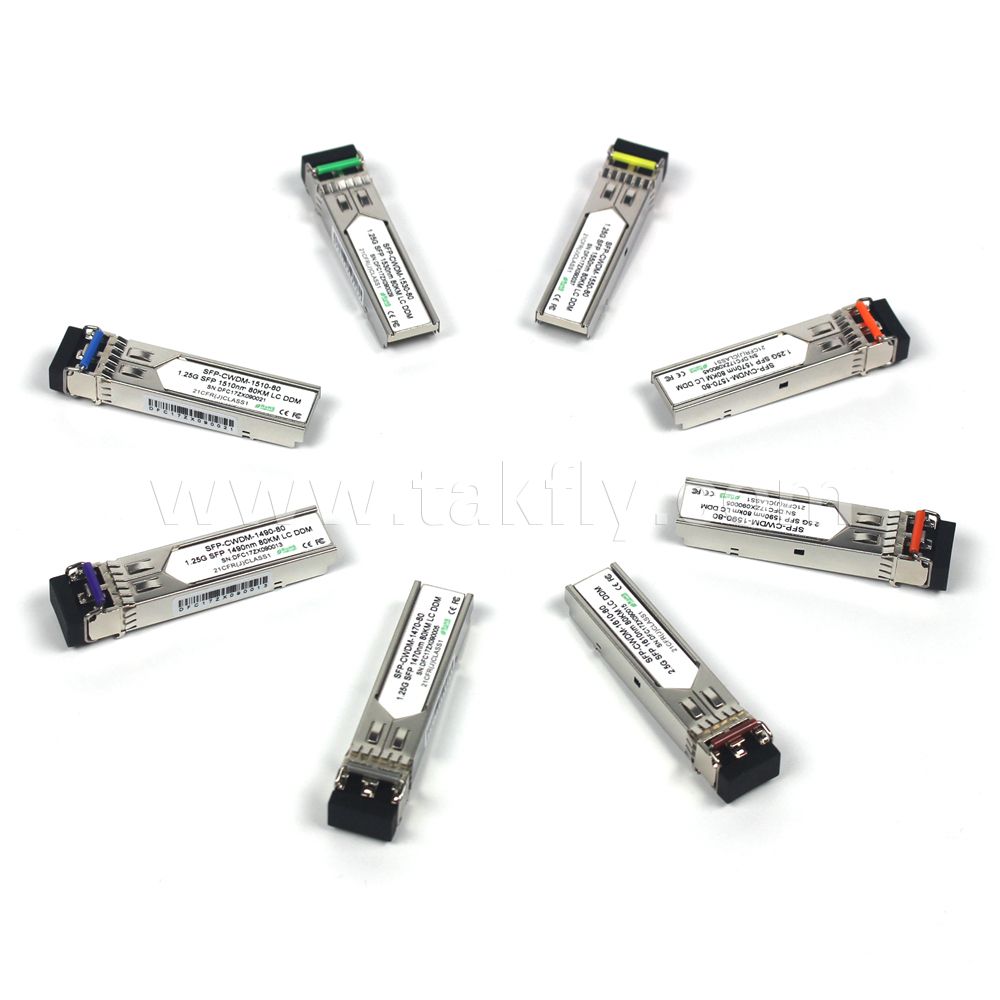

Cisco Compatible 10g SFP 40km LC SFP Transceiver/Module/SFPSFP module is hot-swappable, compact media connectors that provide instant fiber connectivity for your networking gear. They are a cost effective way to connect a single network device to a wide variety of fiber cable distances and types.
Features Optical interface compliant to IEEE 802.3ae 10GBASE-LR
Electrical interface compliant to SFF-8431
Hot Pluggable
1310nm DFB transmitter, PIN photo-detector
Operating case temperature: 0 to 70 °C
Low power consumption
Applicable for 10km SMF connection
All-metal housing for superior EMI performance
Advanced firmware allow customer system encryption information to be stored in transceiver
Cost effective SFP+ solution, enables higher port densities and greater bandwidth
SFP module Applications 10GBASE-LR at 10.3125Gbps
10GBASE-LW at 9.953Gbps
Other optical links
CharacteristicsThe following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
Spec | Unit | Values |
Operating Reach | Km | 10 |
Transmit |
Center wavelength (range) | nm | 1260 -1355 |
Side Mode Suppression Ratio (min) | dB | 30 |
Launched power |
- maximum | dBm | +0.5 |
- minimum | dBm | -7.2 Notes1 |
OMA | dBm | -5.2 |
OMA-TDP (min) | dBm | -6.2 |
Transmitter and dispersion penalty | dB | 3.2 Notes4 |
Average launch power of OFF transmitter (max) | dBm | -30 |
Extinction ratio (min) | dB | 3.5 Notes2 |
RIN12 OMA (max) | dB/Hz | -128 |
Optical Return Loss Tolerance (min) | dB | 12 |
Receiver |
Center wavelength (range) | nm | 1260-1355 |
Receive overload (max) in average power1 | dBm | 0.5 |
Receive sensitivity (min) in average power1 | dBm | -14.4 Notes3 |
Receiver sensitivity (max) in OMA (footnote 2) | dBm | -12.6 Notes3 |
Receiver Reflectance (max) | dB | -12 |
Stressed receiver sensitivity (max) in OMA2 | dBm | -10.3 |
Vertical eye closure penalty (min)3 | dB | 2.2 |
Stressed eye jitter (min)2 | UIp-p | 0.7 |
Receive electrical 3dB upper cutoff frequency (max) | GHz | 12.3 |
Receiver power (damage, Max) | dBm | 1.5 |
Notes: The optical power is launched into SMFMeasured with a PRBS 231-1 test [email protected] with a PRBS 231-1 test [email protected] BER≤10-12 4. In G.652 and G.655(NDSF) |
Electrical characteristicsThe following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
Parameter | Symbol | Min. | Typical | Max | Unit | Notes |
Data Rate | | - | 10.3125 | - | Gbps | |
Power Consumption | | - | 1200 | 1500 | mW | |
Transmitter |
Single Ended Output Voltage Tolerance | | -0.3 | - | 4.0 | V | |
C common mode voltage tolerance | | 15 | - | - | mV | |
Tx Input Diff Voltage | VI | 400 | | 1600 | mV | |
Tx Fault | VoL | -0.3 | | 0.4 | V | At 0.7mA |
Data Dependent Input Jitter | DDJ | | | 0.10 | UI | |
Data Input Total Jitter | TJ | | | 0.28 | UI | |
Receiver |
Single Ended Output Voltage Tolerance | | -0.3 | - | 4.0 | V | |
Rx Output Diff Voltage | Vo | 300 | | 850 | mV | |
Rx Output Rise and Fall Time | Tr/Tf | 30 | | | ps | 20% to 80% |
Total Jitter | TJ | | | 0.70 | UI | |
Deterministic Jitter | DJ | | | 0.42 | UI | |
Our Services: 1.Order inquiry: Keep working time from 9AM to 23PM to gurantee the first reply to clients,and 24 hours
no Cellphone power off
2.Order production: Keep very close touch with production department to gurantee the right delivery time to clients

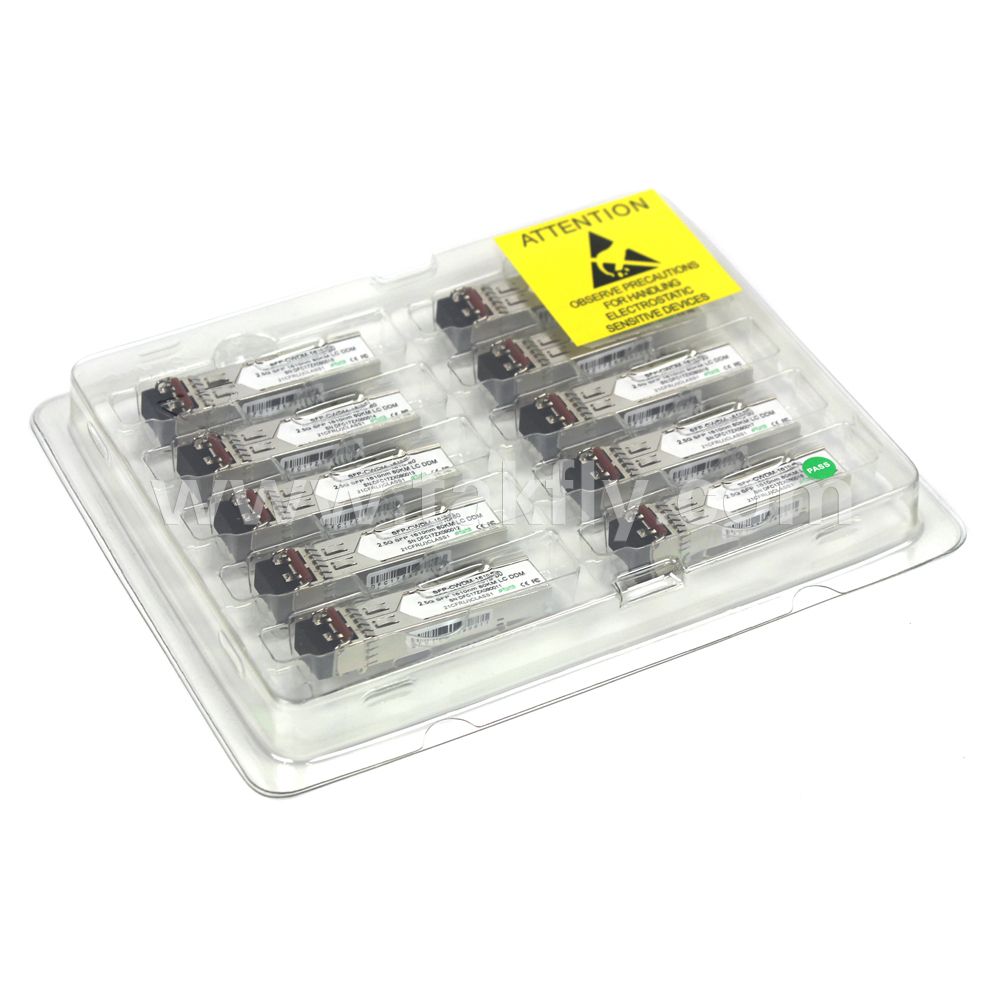

3.Before shipment: Our sales would double check the order quantity,package and strength of cartons to
avoid lost and damage
4.After shipment: Keep tracking shipping status and reporting to clients
5.Shipment: DHL,UPS,FEDEX,TNT,EMS,SEA,AIR
Any query about Cisco compatible SFP Module,please leave me an inquiry or contact me directly.
