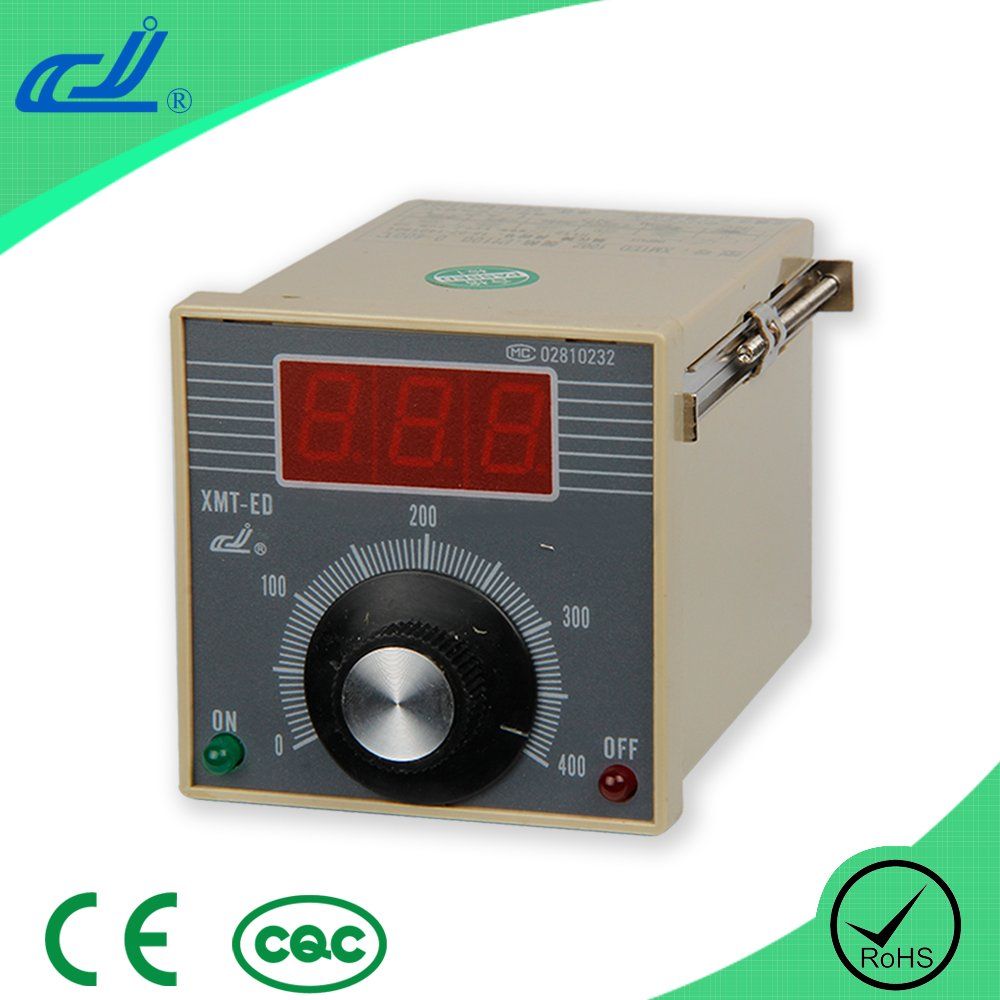

Cj Digital Electronic Temperature Meter Xmted1001/2

XMTED digital electronic temperature adjuster can be combined with diverse thermocouples to render an automatic measuring and control over the temperature. The adjusters therein serve for the entire measurement distance indication and full range regulating. The adjuster is the 2-digital regulating method. The adjusters have functions of the cold end automatic compensation and couple-breakage protection. The adjusters are nice-looking in style, easy for use cheap in price, providing a relatively high comparability between performance and price, widely used in the plastic machinery, packing machines, food-processing machinery as well as the light industrial, textile printing and dyeing industries which require the control on the temperature.

  Technical specification:
1.       Input:  E
2.       Range: 0 to 300ºC
3.       Accuracy: display less then ±1%F·S, temperature control less than 1.5%F·S
4.       Contact capacity: 220VAC, 7A(dissipative load)
5.       Power voltage: AC85-242V  50Hz/60Hz, consumption power: 2W
6.       Environment: temperature: 0~50ºC; humidity: less then 85% RH
7.       Size: 72(W)×72(H)×130(D)

Method to use:
The adjuster is installed into an installation hole with a frame, the wiring modules on the back the phase is 220VAC input to supply the instrument. 1,2 feet are thermocouple input feet. 7,8,9 feet are relay control feet. "7" is higher, "8" is general, "9" is lower. 11,12 feet are AC220V. When the temperature-setting is higher than the indicated value, the general and lower voltages are connected, while general and higher voltages are disconnected with green indicator bulb lighting up and the red one turning off; the setting is lower than the actual indication, the general and lower voltages are disconnected and the general-higher voltages are connected with the red indicator bulb lighting up and the green one turning off.
