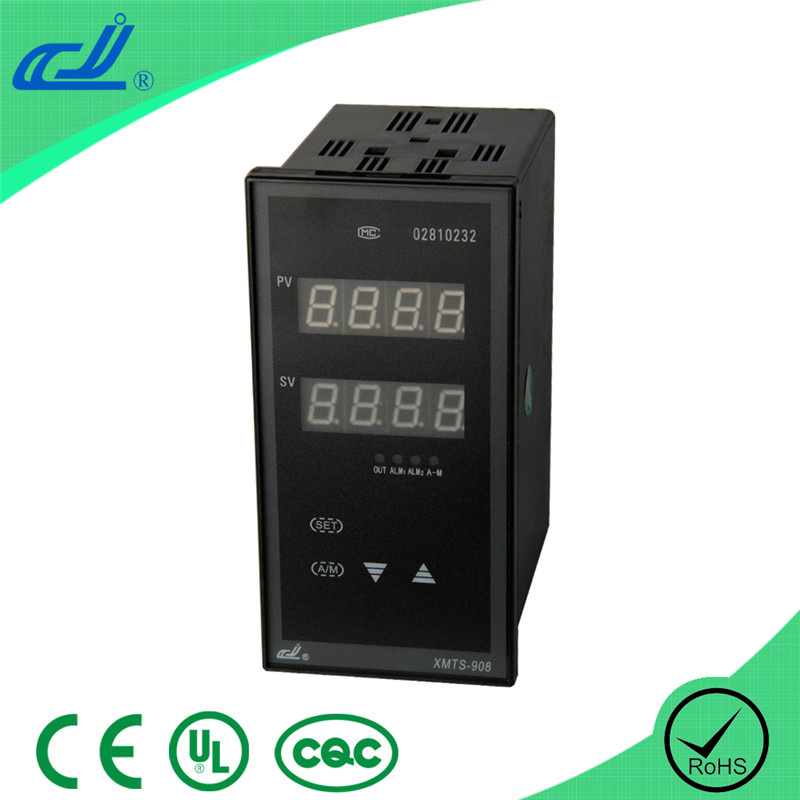

Cj Temperature Controller for Printing (XMTS-908)

Prod Model:	XMTS-908

Product Description

XMT908 intellectual ability temperature controller
Intelligence industrial regulation instrument
A high performance


XMT-908 intelligence-ability temperature controller is a kind of high performance & reliability intelligence-

ability temperature control meter, they are widely used in the automatic control system of the

temperature, chemical, ceramics, light, metal, petrochemical and heat treatment industry

Main Technical Indexs

1. Measurement deviation: ≤ ± 0.5%F@S± 1.

2. Sampling cycle: 0.5S.

3. Control cycle: Relay output 2~120S, other is 2S...

4. Relay output contact capacity: AC250V/7A (resistance load) or AC250V/0.3A (perceptual load).

5. Driving controllable pulse output: ≥ 3V scope, ≥ 40us width's over zero or trigger contact pulse.

6. Driving solid relay signal output: Driving electric current≥ 15mA, voltage≥ 9V...

7. Continuous PID: 0~10mA (load 500± 200Ω ), 4~20mA (load 250± 100Ω ), or 0~5V (load≥ 100kΩ ), 1~5V (load≥ 100kΩ ).

8. Power supply: AC90V~242V, 50/60Hz.

9. Working condition: Temperature 0~50.0, relative humidity≤ 85%RH, without corrode and strong electric
radiation.

10. Exterior and hole size(mm): 80× 160× 120 76× 156;

Panel instruction(consult)

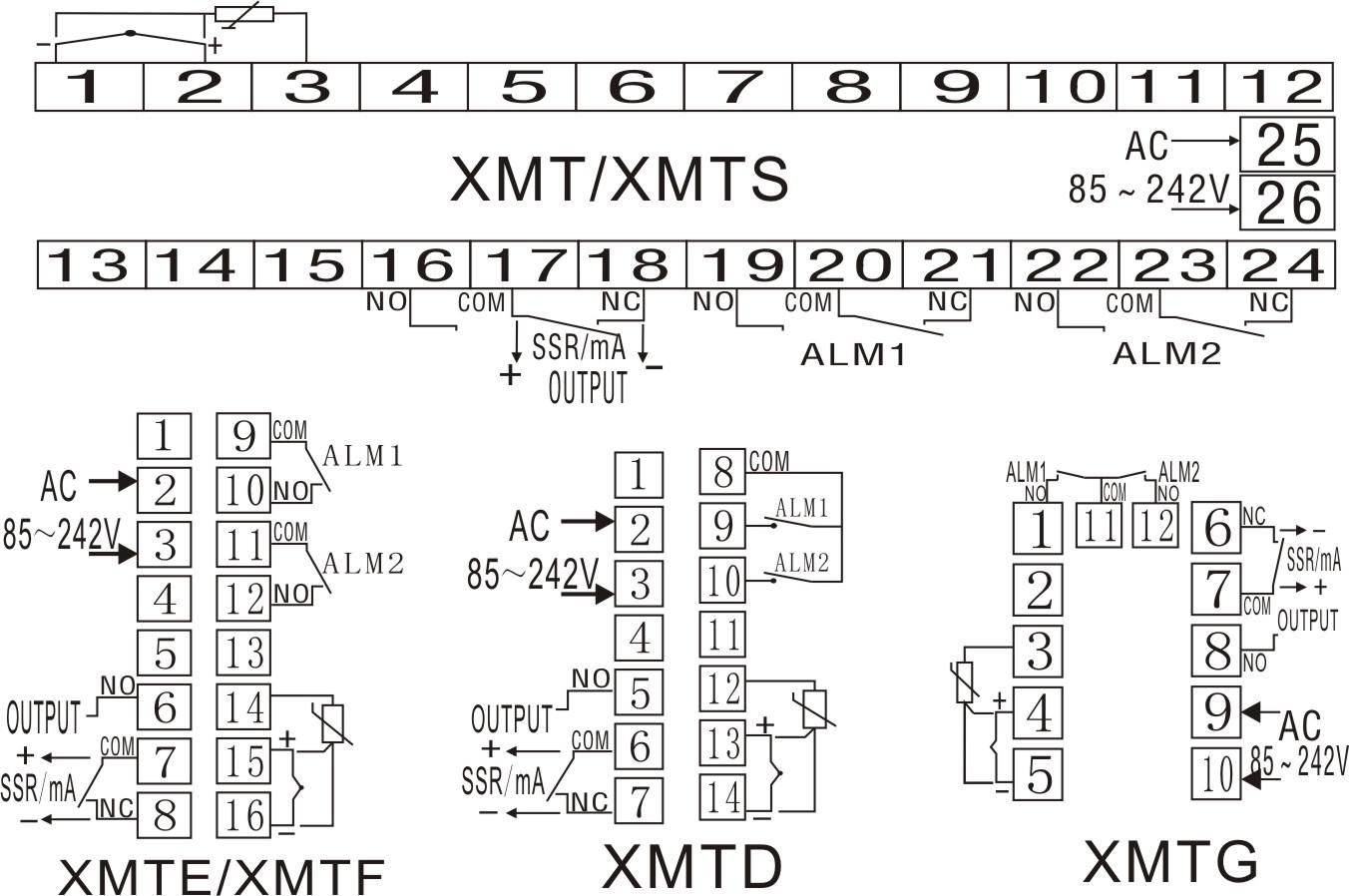

Connection scheme(consult)
