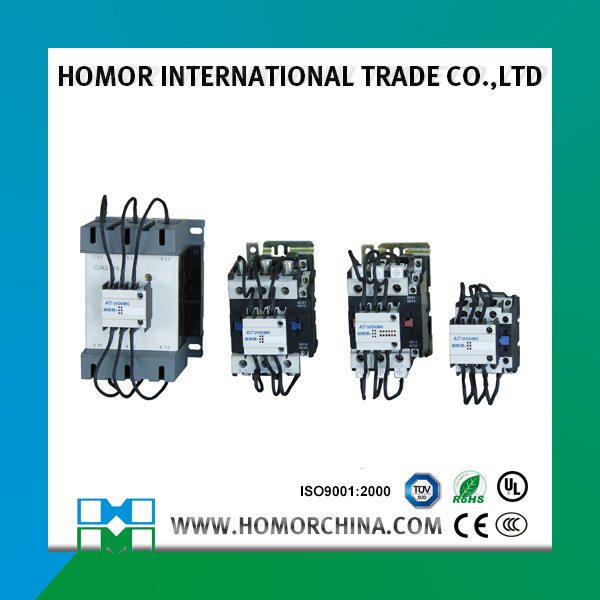

Cj19 Switch-Over Capacitor Contactor

Name: Cj19 Switch-Over Capacitor Contactor
Brand: all-electronics-online.com
SKU: 725184092
Availability: InStock
Rating: 4.6 (125 reviews)

Price:	US $ 6.81-49.2/Piece
Min Order:	20/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

General description:
CJ16/19 is developed by our company on the base of 3TK44 capacitor contactor of Siemens company Germany.It's structure is compact,main circuit composed with resistance on-off switch,joint the main circuit is convenience,is nidely used as a contactor in controlling small electric capacitor,the model meaning as right.

Features:
The contact system of contactor is three-phase main circuit, composed by eight pieces contact block from upside and daminside. There is one contact block was switch on in advance in each main circuit,switch-overressistor only two,the cpacitor group is jointed as triangle,so when resistor switch over circuit was sitchon,every capacitor circuit will e connected with resistor.
The contacor have two pieces of auxilliary contact block,the function is 2NO,2NC or 1NO+1NC,this is chosed by user.
The mounting of this contactor is very convenience,you can use two pieces of M4 screw make it stable, or can use 35mm Din real mount it.Over all Dimension as following.

Model	Reted insultion voltage (V)	Reted voltage	Rated Current (A)	Working current at AC6B (A)	Longtime work rated high voltage(A)	Rated controlling capacitance(KVAR)
CJ19-25	660	220/380	25	17	25	12
CJ19-32			32	23	32	16
CJ19-43			43	29	43	20
CJ19-63			63	43	63	30
CJ19-95			95	63	95	40-50
CJ19-115			115	95	115	60

Shipment:
1,Shipping can delivery by sea,air,or express according to customer requirement
Payment:
1. Small order under 3000USD T/T100% in advance
2. 30% deposit and 70% before shipping or after received copy of B/L
3. L/C also acceptable

Warranty:
1.We provide 1.5 year warranty.
2. Compensation will be paid if product had badly quality problem.

Prod Model:	CJ19
