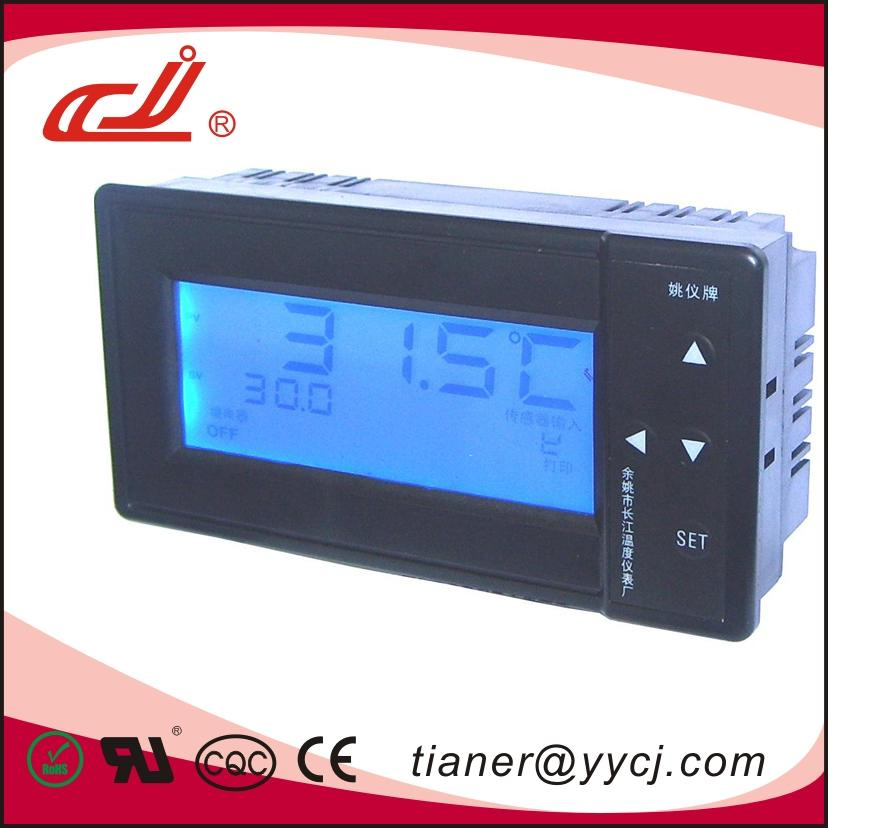

Cjlc-908 Cj Temperature Controller with LCD Display

Name: Cjlc-908 Cj Temperature Controller with LCD Display
Brand: all-electronics-online.com
SKU: 710499452
Availability: InStock
Rating: 4.5 (131 reviews)

Price:	US $ 30.8-61.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

1. Measurement deviation: ≤ ± 0.5%F@S± 1.
2. Sampling cycle: 0.5S.
3. Control cycle: Relay output 2~120S, other is 2S...
4. Relay output contact capacity: AC250V/7A (resistance load) or AC250V/0.3A (perceptual load).
5. Driving controllable pulse output: ≥ 3V scope, ≥ 40us width's over zero or trigger contact pulse.
6. Driving solid relay signal output: Driving electric current≥ 15mA, voltage≥ 9V...
7. Continuous PID: 0~10mA (load 500± 200Ω ), 4~20mA (load 250± 100Ω ), or 0~5V (load≥ 100kΩ ), 1~5V (load≥ 100kΩ ).
8. Power supply: AC90V~242V, 50/60Hz.
9. Working condition: Temperature 0~50.0, relative humidity≤ 85%RH, without corrode and strong electric radiation.
10. Exterior and hole size(mm): 160× 80× 120 152× 76;

Company	Yuyao Gongyi Meter Co.,Ltd.
Contact	Cheryl
Tel	008657462816433
E-MAIL
Address	No.9 Changqing Road,Yuyao City,Zhejiang Province

Prod Model:	CJLC-908
Display:	LCD
Type:	Temperature Controller
Control Type:	Digital
Control Method:	Electronic Type
Usage:	Temperature Control

Yuyao Gongyi Meter Co., Ltd And Its Subsidiary, Yuyao Changjiang Temperature Meter

Factory, Have Been Devoting Themselves To The Development And manufacturing Of

Industrial Process Automation Controller Instruments Since 1995. Through Decades Of

Improvement, Gongyi Now Is A Top One Chinese Instrument Manufacturer, Claiming A

Large Domestic And Overseas Market Share, sales of CJ temperature controller.

Main products: Temperature controller, humidity controller, electrical instrument, time relay, paperless recorder, silicon-controller, voltage regulator and all kinds of temperature sensor, humidity sensor, temperature transmitter and safety barrier. All the instruments have the function to communicate with computer, and provide the computer industrial control interface. (DCS System)

"CJ" series Temperature Meter has been ISO9001-2008 quality system' S grant, CE and kinds of certification, and has international facture calculate appliance' S license ( CMC 02810232 )
