Cjx1 - AC Contactor
Price: |
US $ 2.98/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,D/P,Western Union |
Prod Model: |
CJX1 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Low Price: |
Good Quality |
Use: |
Industrial |
Theory: |
Voltage Relay |
Size: |
Miniature |
Usage: |
Household Appliances Relay, Communication Relay |
Product Description
Product Description
Application
CJX1 series AC contactors are suitable for frequency 50/60Hz, rated insulation voltage up to1000V, rated operation current 9~475A under AC-3 duty. It is mainly used for making/breaking electric circuit at a long distance & for frequent starting/stopping & with thermal relay to COM-pose a magnetic motor starter. The product conforms to IEC60947-4-1 standard.
Product Details
Basic Info
Model NO.:CJX1
Type: AC Contactors
Electricity Type: AC
Number of Pole: 3
Phase: 3
Usage: Industrial
Frequency: 50/60Hz
Rated Insulation Voltage up to: 1000V
Rated Operation Current: 9~475A Under AC-3 Duty
Standard: Iec60947-4-1
Export Markets: Global
Additional Info
Trademark: VIBBA or OEM
Packing: Carton
Standard: ISO9000; CE; CB; CCC
Origin: China
Production Capacity: 5000 Pieces/month

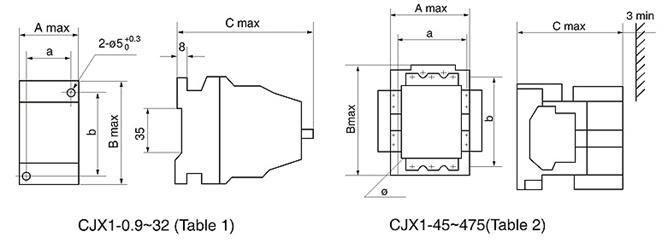

Dimension
Type |
CJX1-9
CJX1-12 |
CJX1-16
CJX1-22 |
CJX1-32 |
CJX1-45
CJX1-63 |
CJX1-75
CJX1-85 |
CJX1-110
CJX1-140 |
CJX1-170
CJX1-205 |
CJX1-250
CJX1-300 |
CJX1-400
CJX1-475 |
|
Mechanical endurance(¡ Á 10 6 ) |
10 |
10 |
10 |
8 |
8 |
8 |
8 |
8 |
8 |
Conventional thermal current(A) |
20 |
30 |
45 |
80 |
100 |
160 |
210 |
300 |
400/550 |
Rated insulation voltage(V) |
660 |
660 |
660 |
1000 |
1000 |
1000 |
1000 |
1000 |
1000 |
Rated(380V)operating current(A) |
AC-3 |
9/12 |
16/22 |
32 |
45/63 |
75/85 |
110/140 |
170/205 |
250/300 |
400/475 |
AC-4 |
3.3/4.3 |
7.7/8.5 |
15.6 |
24/28 |
34/42 |
54/68 |
75/96 |
110/125 |
150 |
Power of controllable motor(KW)AC-3 |
380V |
4/5.5 |
7.5/11 |
15 |
22/30 |
37/45 |
55/75 |
90/110 |
132/160 |
200/250 |
660V |
5.5/7.5 |
11 |
23 |
39/55 |
67 |
100 |
156 |
235 |
375 |
Power of controllable motor(KW)AC-4 |
380V |
1.4/1.9 |
3.5/4 |
7.5 |
12/14 |
17/21 |
27/35 |
38/50 |
58/66 |
81 |
660V |
2.4/3.3 |
6/6.6 |
13 |
20.8/24 |
29.5/36 |
46.9/60 |
66/86 |
100/114 |
140 |
Frequency of operation(l/h) |
AC3 |
1000 |
750 |
750 |
1200/1000 |
1000/850 |
1000/750 |
700/500 |
700/500 |
500/420 |
AC4 |
250 |
250 |
250 |
400/300 |
300/250 |
300/200 |
200/130 |
200/130 |
150 |
Electrical endurance(¡ Á 10 6 ) |
AC3 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
1.2 |
AC4 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
Operating voltage range of coil |
(0.8~1.1)Ue |
Power consump-tion of coil |
Attracting(VA) |
10 |
10 |
12.1 |
17 |
32 |
39 |
58 |
84 |
115 |
Starting(VA) |
68 |
69 |
101 |
183 |
330 |
550 |
910 |
1430 |
2450 |
Rated insulation voltage of auxiliary contacts(V) |
690 |
690 |
690 |
690 |
690 |
690 |
690 |
690 |
690 |
Conventional thermal current of auxiliary contacts(A) |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
Rated operating current of auxiliary contacts(A) |
AC15380/220 |
6/10 |
6/10 |
4/6 |
4/6 |
4/6 |
4/6 |
4/6 |
4/6 |
4/6 |
|
DC13220V |
0.45 |
0.45 |
0.48 |
0.48 |
0.48 |
0.48 |
0.48 |
0.48 |
0.48 |
Rated voltage of the control coil(V) |
50Hz |
24, 36, 48, 110, 127, 220, 380, etc |
60Hz |
24, 110, 220, 440, etc. |
