Cjx2 LC1 25A 3p No Nc Silver Electricial AC Coil Contactor Modular Electronic Contactor

Name: Cjx2 LC1 25A 3p No Nc Silver Electricial AC Coil Contactor Modular Electronic Contactor
Brand: all-electronics-online.com
SKU: 818091655
Availability: InStock
Rating: 4.8 (36 reviews)

Price:	US $ 2.95/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	CJX2 LC1
Certificate:	Ce, ISO9001
Rated Current:	09-95A
Custome-Made:	OEM
Quality Guarantees:	2 Years
Rated Voltage:	220V/380V
Color:	Black

Product Description

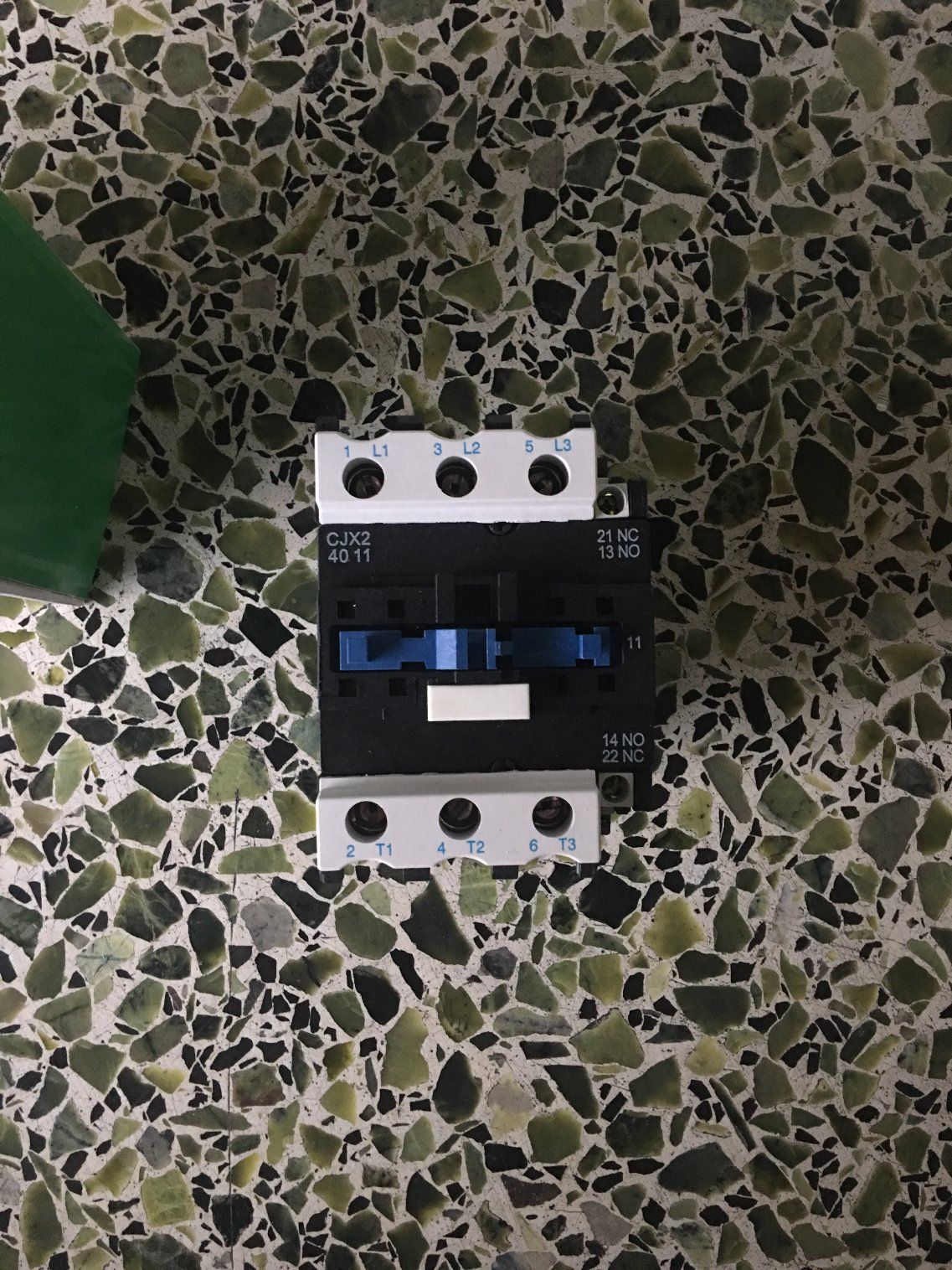

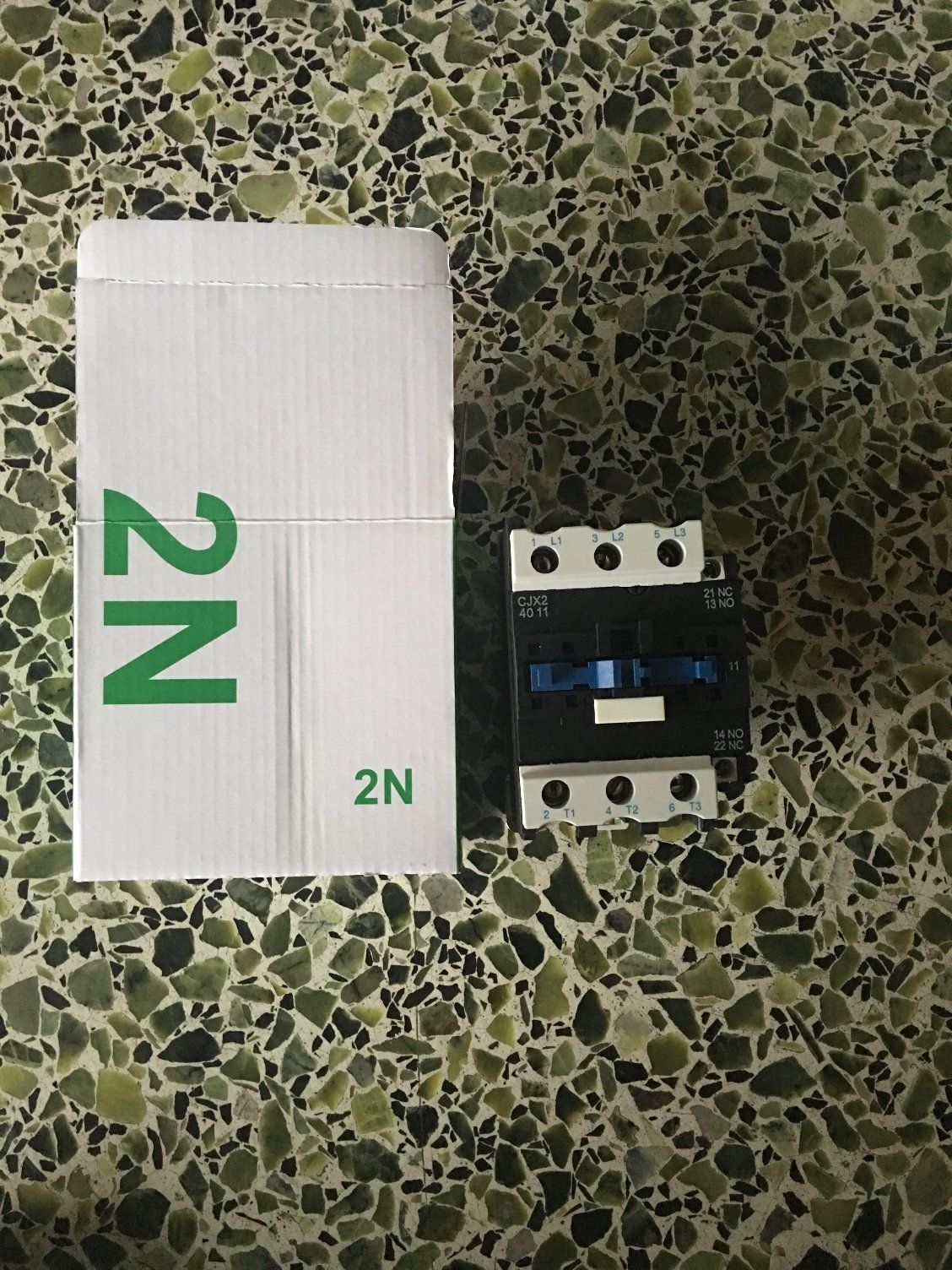

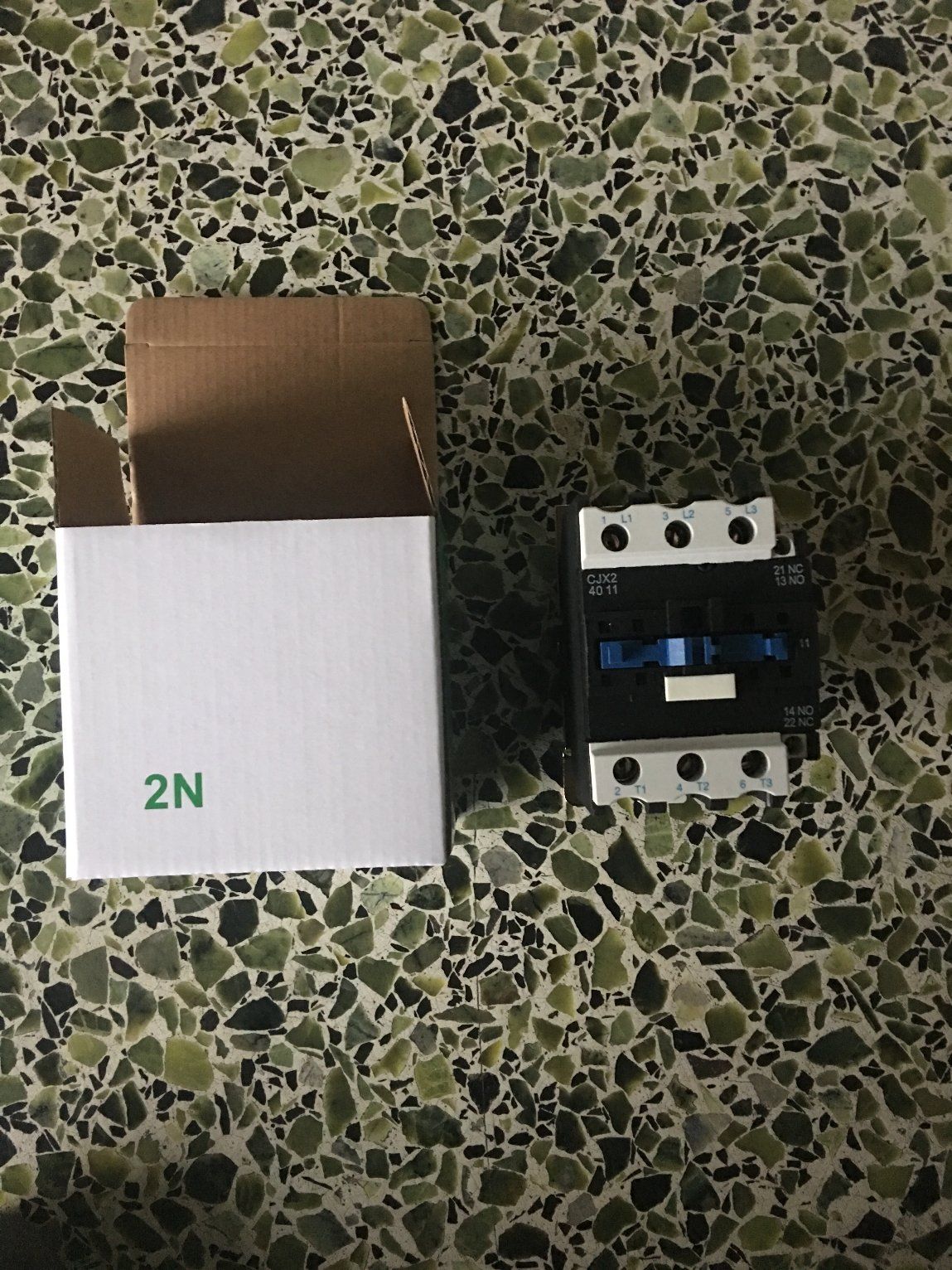

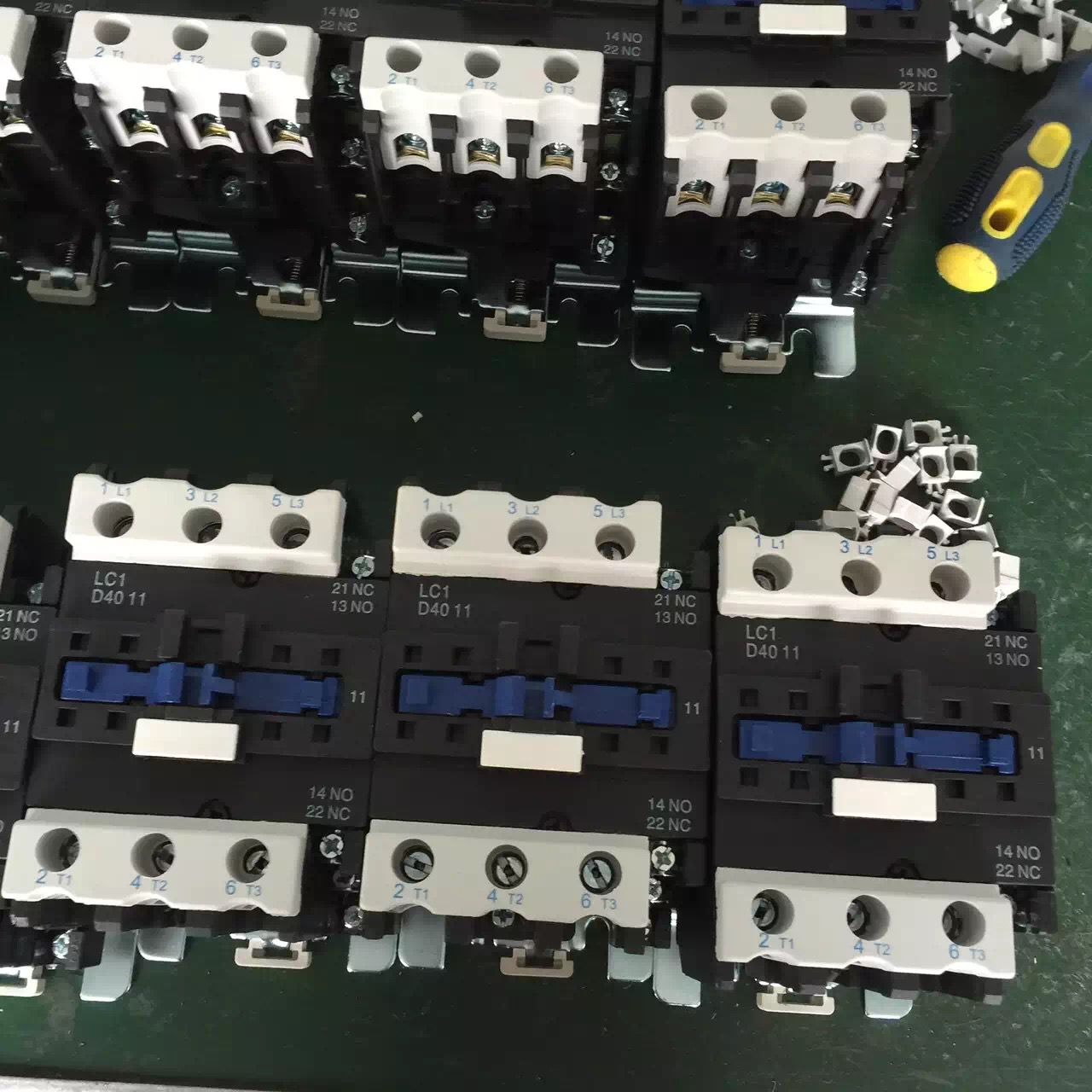

CJX2 LC1 25A 3P NO NC Silver Electricial AC Coil Contactor Modular Electronic Contactor

CJX2 series of new type AC contactor (hereinafter referred to as the new contactor), is mainly used in the circuit of AC 50Hz (or 60Hz), voltage up to 690V, and the rated working current up to 620A under the AC-3, 400(380)V applicable categories, for remote switch on and off the circuit, frequent starting and control of AC relay to protect the circuit that may have operation overload. Meet the standards: GB14048.4 IEC60947-4-1

Specification

Type		LC1-D09	LC1-D12	LC1-D18	LC1-D25	LC1-D32	LC1-D40	LC1-D50	LC1-D65	LC1-D80	LC1-D95
Rated workingcurrent (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated workingcurrent (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standardpower ratingsof 3-phase motors 50/60Hz incategory AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x104)	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x104)	20	20	20	20	20	15	15	15	10	10
Mechanical life (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO
