Cm1 Moulded Case Circuit Breaker 25ka~100ka 2p~4p

Name: Cm1 Moulded Case Circuit Breaker 25ka~100ka 2p~4p
Brand: all-electronics-online.com
SKU: 824785845
Availability: InStock
Rating: 4.4 (41 reviews)

Price:	US $ 17-45/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Quality assurance high voltage MCCB 36KA 3 pole Mo
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Installation:	Open Frame
Structure:	MCCB
Poles Number:	2
Certification:	CCC

Product Description

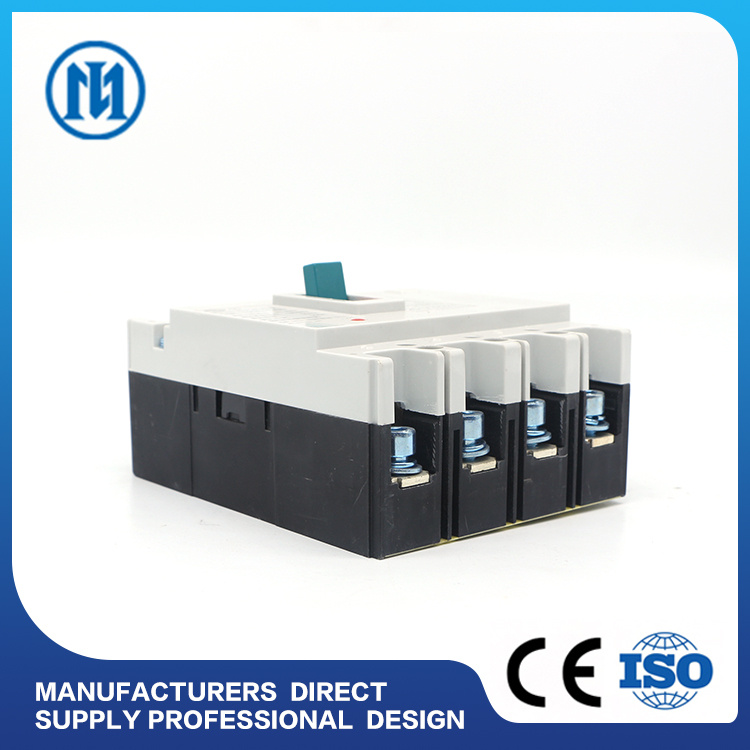

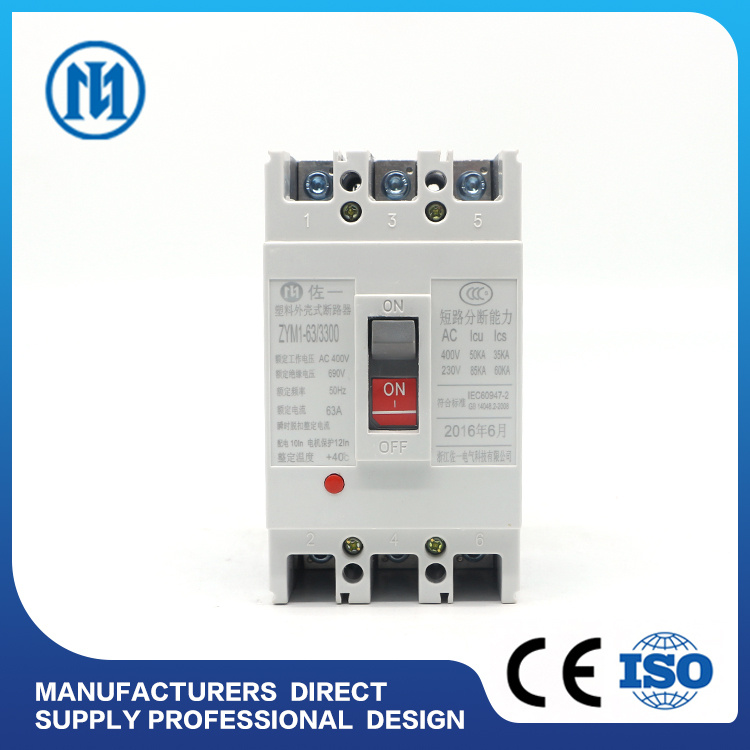

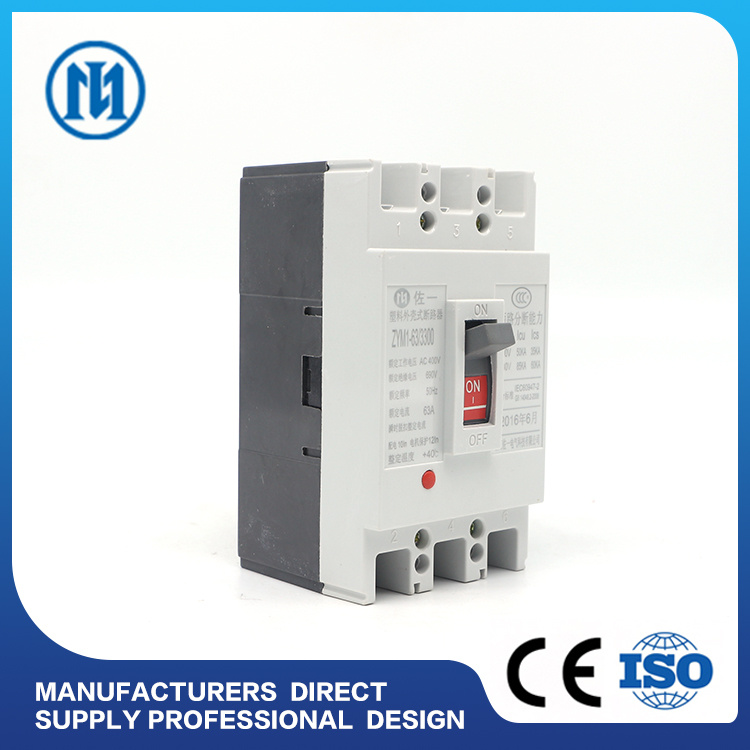

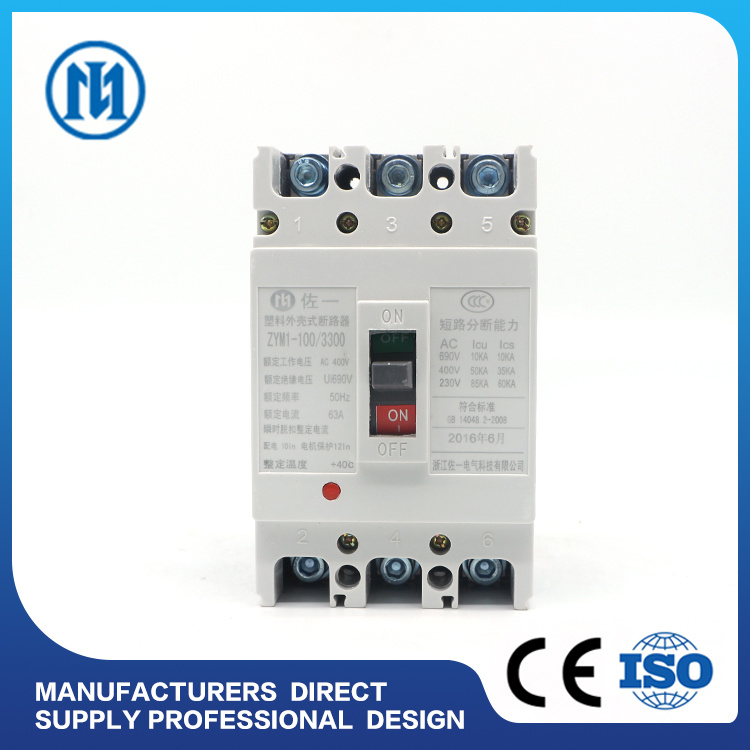

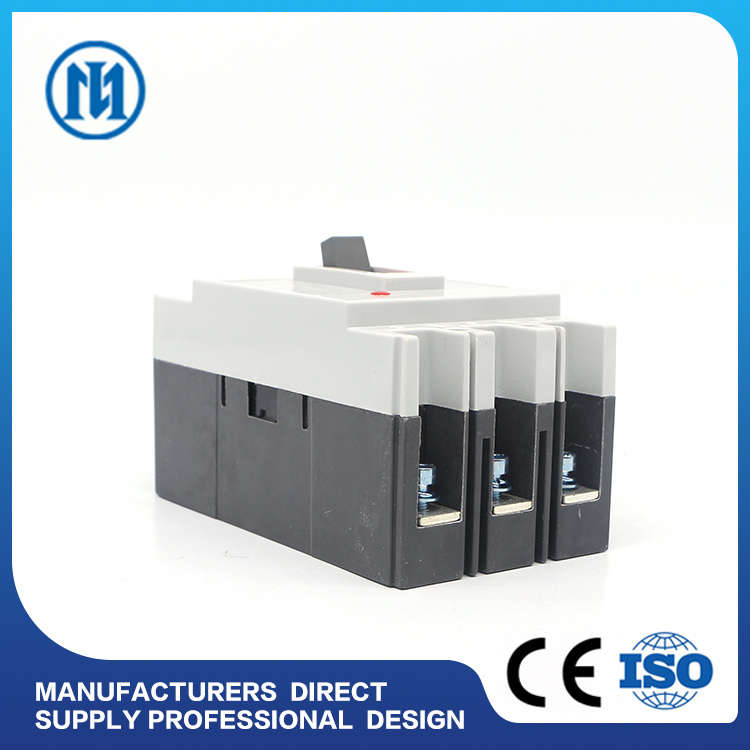

3P 125A moulded case circuit breaker - MCCB

APPLICATION

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

3P 125A MOULDED CASE CIRCUIT BREAKER - MCCB is new type product developed and manufactured by adopting international advanced technology. 3P 125A MOULDED CASE CIRCUIT BREAKER - MCCB is a supplied with rated insulation voltage 800V and used for circuit of AC 50HZ, raged operating voltage AC 380V or below rated operation current up to 660A for infrequent changing over and starting of the motors. Equipped with the protection devices for over-current, short circuit and under voltage, the 3P 125A MOULDED CASE CIRCUIT BREAKER - MCCB is capable of preventing damage of circuits and supplying unites. The 3P 125A MOULDED CASE CIRCUIT BREAKER - MCCB confirms to IEC60947-2 standard.

SPECIFICATION

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Type	Rated current (A)	Number of Poles	Rated insulation Voltage (V)	Rated operating voltage (A)	Arcing-over distance (mm)	Ultimate short circuit breaking capacity (KA)	Service short circuit breaking capacity (KA)	Operation performance
Type	Rated current (A)	Number of Poles	Rated insulation Voltage (V)	Rated operating voltage (A)	Arcing-over distance (mm)	Ultimate short circuit breaking capacity (KA)	Service short circuit breaking capacity (KA)	ON OFF
CM1-63L	6,10,16,20,25,32,40,50,63	3P,4P	660V	380V	0	25	18	1500 8500
CM1-63M	6,10,16,20,25,32,40,50,63				0	50	35
CM1-100C	10,16,20,25,32,40,50,63,80,100				0	25	18
CM1-100L					0(≤50)	35	22
CM1-100M					0(≤50)	50	35
CM1-100H					0(≤50)	85	50
CM1-225C	100,125,160,180,200				≤50	25	18	1000 7000
CM1-225L					≤50	35	22
CM1-225M					≤50	50	35
CM1-225H					≤50	85	50
CM1-400C	225,250,315,350,400				≤50	35	25	1000 4000
CM1-400L					≤50	50	35
CM1-400M					≤50	65	42
CM1-630C	400,500,630				≤100	35	25
CM1-630L					≤100	50	35
CM1-630M					≤100	65	42
CM1-630H					≤100	100	65
CM1-800M	630,700,800				≤100	65	42
CM1-800H	630,700,800				≤100	100	65
