CMOS Battery Coin Cell Cr2032 3V Battery

Name: CMOS Battery Coin Cell Cr2032 3V Battery
Brand: all-electronics-online.com
SKU: 718237582
Availability: InStock
Rating: 4.7 (87 reviews)

Price:	US $ 0.025-0.06/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

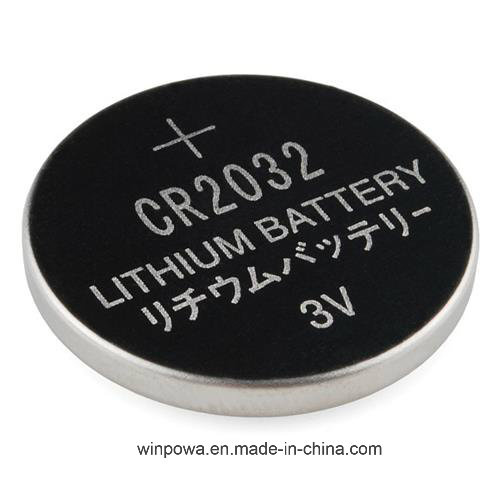

CMOS battery coin cell cr2032 3V battery

Product overview
Chemical System : Coin/button Type Manganese Dioxide Lithium battery
Model No. : CR2032
Nominal Dimensions:20.00×3.20mm
Nominal Voltage : 3.00V
Average Weight : 3.10g
Applications : Watch, calculator, electronic toy, etc.
Shelf Life : Not less than 95%of the service capacity,
following 1st year storage at 20ºC.
Standard Capacity :210mAh(continuous discharge at 20 ºC under 0.20mA discharge current to 2.0V voltage)

Lithium button battery Chemistry:

Chemical Composition	CAS No.	EC#	Weight (%)
Manganese Dioxide	1313-13-9	215-202-6	41.1
Li	7439-93-2	231-102-5	2.31
Iron	7439-89-6	231-096-4	45.23
PC	108-32-7	203-572-1	5.77
DMC	616-38-6	210-478-4
DO	---	---
Lithium Perchlorate	7791-03-9	232-237-2

Constant resistor discharge characteristics:

>70h load resistor: 1,000ohms; EV: 2V; at 25ºC RH 55% ambient

Heavy metal test repot by TUV:

If you need more test reports, please contact us, thanks.

FAQ:

Q:Can you help us for freight?

A:Yes,we also have trustable forwarders for you option, if you need.

Q:Can we have our own lithium button cell battery packaging design?

A:Of cause, customized packaging is available, no MOQ request.

Q:How long is your warranty?

A:We offer 1 years warranty after order delivery.

Prod Model:	CR2032
Color:	Silver
Charging Type:	Non-rechargeable
Nominal Voltage:	3V
Battery Type:	LiMnO2 Battery
Recycling:	Non-Recyclable
Size:	AA
Certification:	SASO
Package:	Blister

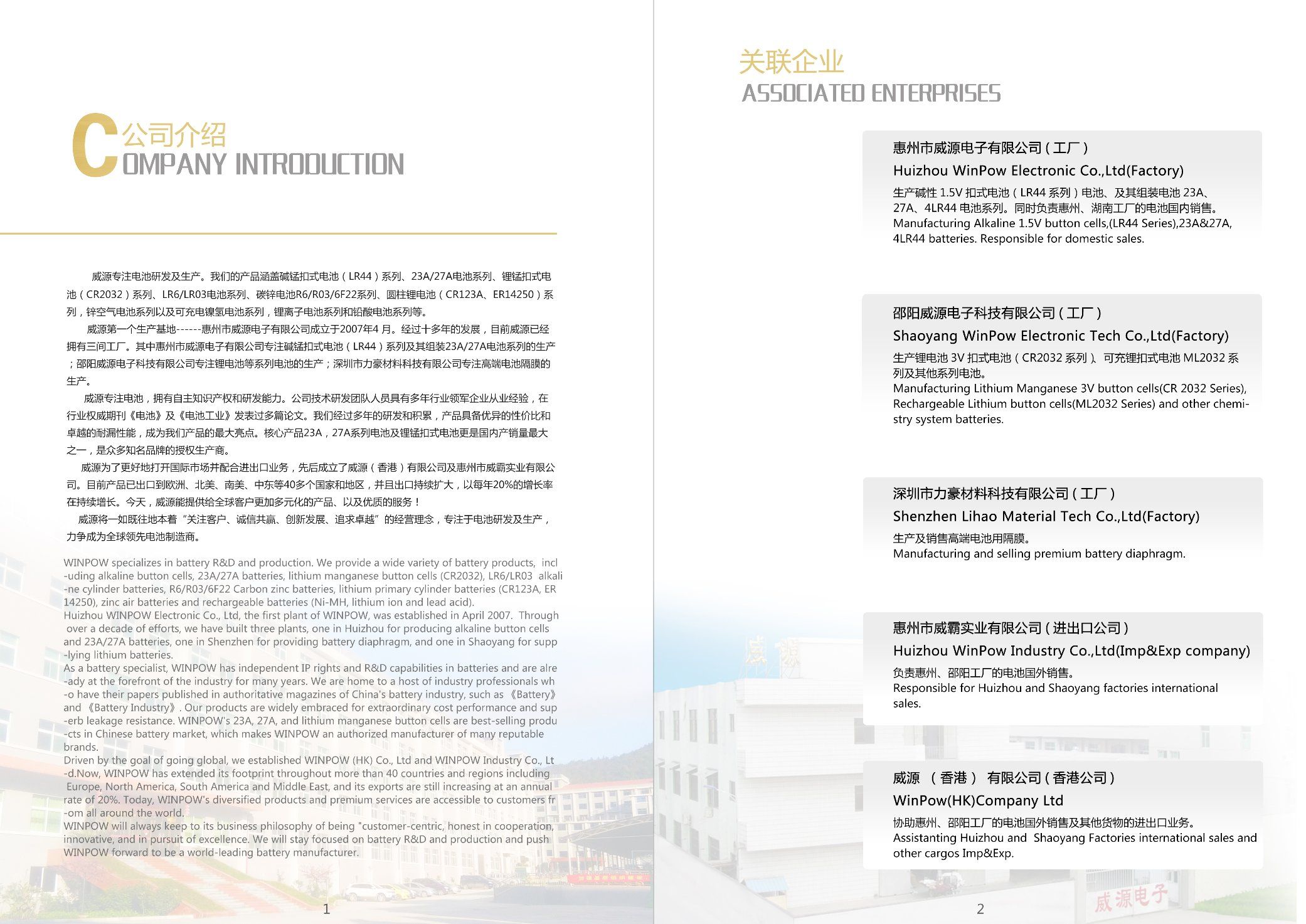

WINPOW specializes in battery R&D and production. We provide a wide variety of battery products, including alkaline button cells, 23A/27A batteries, lithium manganese button cells (CR2032), LR6/LR03 alkaline cylinder batteries, R6/R03/6F22 Carbon zinc batteries, lithium primary cylinder batteries (CR123A, ER14250), zinc air batteries and rechargeable batteries (Ni-MH, lithium ion and lead acid).

Huizhou WINPOW Electronic Co., Ltd, the first plant of WINPOW, was established in April 2007. Through over a decade of efforts, we have built three plants, one in Huizhou for producing alkaline button cells and 23A/27 batteries, one in Shenzhen for providing battery diaphragm, and one in Shaoyang for supplying lithium batteries.

As a battery specialist, WINPOW has independent IP rights and R&D capabilities in batteries and are already at the forefront of the industry for many years. We are home to a host of industry professionals who have their papers published in authoritative magazines of China's battery industry, such as Battery and Battery Industry. Our products are widely embraced for extraordinary cost performance and superb leakage resistance. WINPOW's 23A, 27A, and lithium manganese button cells are best-selling products in Chinese battery market, which makes WINPOW an authorized manufacturer of many reputable brands.

Driven by the goal of going global, we established WINPOW (HK) Co., Ltd and WINPOW Industry Co., Ltd. As yet, WINPOW has extended its footprint throughout more than 40 countries and regions including Europe, North America, South America, and Middle East, and its exports are still increasing at an annual rate of 20%. Today, WINPOW's diversified products and premium services are accessible to customers from all around the world.

WINPOW will always keep to its business philosophy of being "customer-centric, honest in cooperation, innovative, and in pursuit of excellence. We will stay focused on battery R&D and production and push WINPOW forward to be a world-leading battery manufacturer.
