CNC AC Contactor 660V contactor electrical contactor 4 Poles Contactor (CJX2N-F)
Specifications
CJX2N-F 660V contactor electrical contactor
1)CE, IEC, 3C, SGS,
2) China top 500
3) sale more than 100 countrieS
About CNC
1. China Top 500 Enterprise.
2.26 years rich experience in manufacturing electrical products.
3. Sales in over 100 countries.
4. Pass ISO9001, ISO14001 CCC CE CB IEC ICO certificate and standard.
Product Description

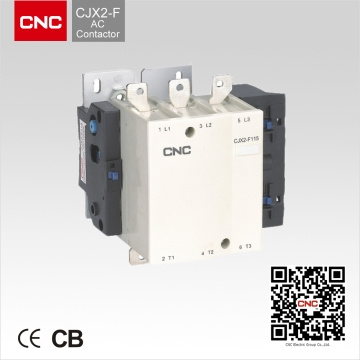

CNC AC Contactor CJX2N-F 660V contactor electrical contactor
CNC AC Contactor CJX2N-F 660V contactor electrical contactor is suitable for using in the circuits the rated voltage up to 660V AC 50Hz or 60Hz, rated current up to 95A, for making & breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine- interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC 60947-4, GB14048-4.
Our Services
In most time, the buyer need not to pay any customs. Well declare it as a gift and a low value to avoid the tax. But sometimes in some countries, the customs officer is strict. We are not accountable for any customs fee, Please check it out the customs policy at your own place, such as Italy and Holland. If you have to pay thecustoms fees, it is your duty to your own country, the buyer should understand this situation. Buyers are responsible for any insurance. Please contact with us advance if you need.
Packaging & Shipping
1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Orders processed timely after the payment verification.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.
4. The images shown are not the actual item and are for your reference only.
5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.
6. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!
7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.
We mainly use China post air mail / Hong Kong post air mail / Singapore post air mail/DHL/UPS/FedEx/EMS.
China post air mail / Hong Kong post air mail /Singapore post air mail takes about 7-40 days(or more) at usual; DHL/UPS/FedEx takes about 3-7 days at usual; EMS takes about 7-15 days at usual.
Company Information
Do you know about us?
1. China Top 100 Industrial Electrical Enterprise
2. Netion High-tech Enterprise
3. Our Laboratory is China Key Industrial Electrical Laboratory;
4. We have completely sales service system, ensure every detail is going smooth.
5. We have new designed products each year by our R&D Dpartment.
6. Perfect testing system ensure each product is qualified.
7. Want know more of us? Waiting for your inquiry.
| Type | CJX2-09 (LC1-D09) | CJX2-12 (LC1-D12) | CJX2-18 (LC1-D18) | CJX2-25 (LC1-D25) | CJX2-32 (LC1-D32) | CJX2-40 (LC1-D40) | CJX2-50 (LC1-D50) | CJX2-65 (LC1-D65) | CJX2-80 (LC1-D80) | CJX2-95 (LC1-D95) |
| Rated working current (A) | AC3 | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC4 | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 |
| AC3 capacity of three-phase squirrel-cage motor AC3(kW) | 220/230V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
| 380/400V | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| 415V | 4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 |
| 440V | 4 | 5.5 | 9 | 11 | 15 | 22 | 30 | 37 | 45 | 45 |
| 500V | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 |
| 660/690V | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 |
| Rated heat current (A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 |
| Electrical life | AC4X104 | 20 | 20-15 | 20-7 | 15-7 | 15-7 | 10-7 | 7 | 7-6 | 7-5 | 7-5 |
| AC3X106 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 1.6 | 1.6 | 1.6 |
| Mechanical lifeX106 | 20 | 20 | 20 | 20 | 20 | 20 | 50 | 20 | 10 | 10 |
| Number of the contact | 3P+NO |
| 3P+NC |
| Matched auxiliary contact type | LA1-DN02(2NC),LA1-DN11(1NO+NC),LA1-DN20(2NO),LA1-DN22(2NO+2NC),LA1-DN40(4NO,LA1-DN04(4NC),LA1-DN13(1NO+3NC),LA1-DN31(3NO+1NC) |
| Matched time delay auxiliary contact type | Time delay after power on:LA2-DT0(0.1-3S),LA2-DT2(0.1-30S),LA2-DT4(10-180S),Time delay after power off:LA3-DR0(0.1-3S),LA3-DR2(0.1-30S),LA3-DR4(10-180S) |
