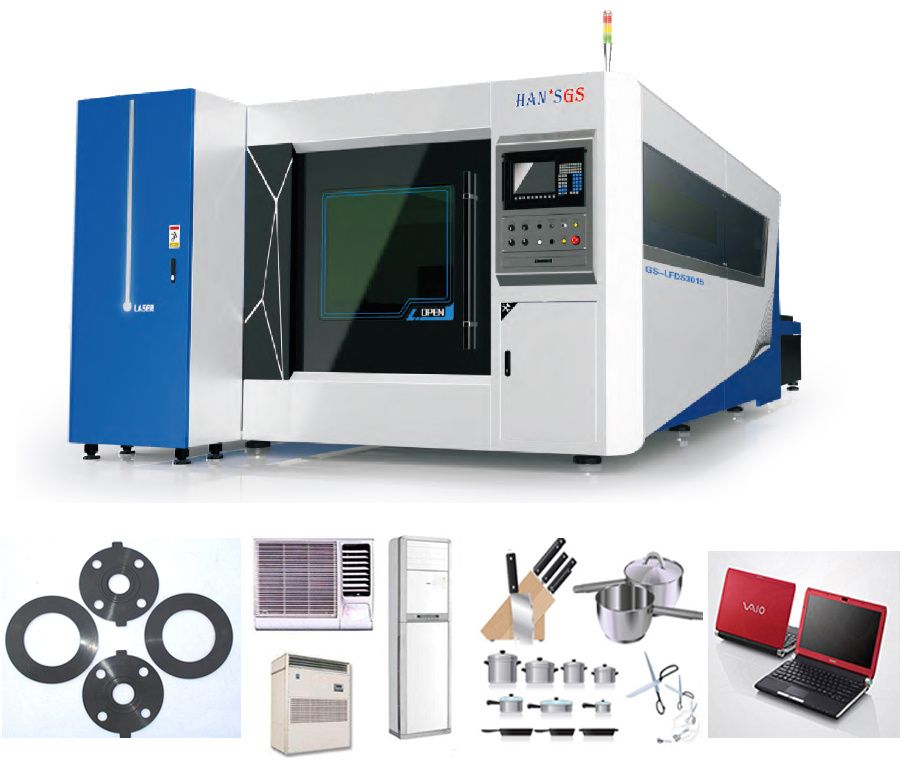

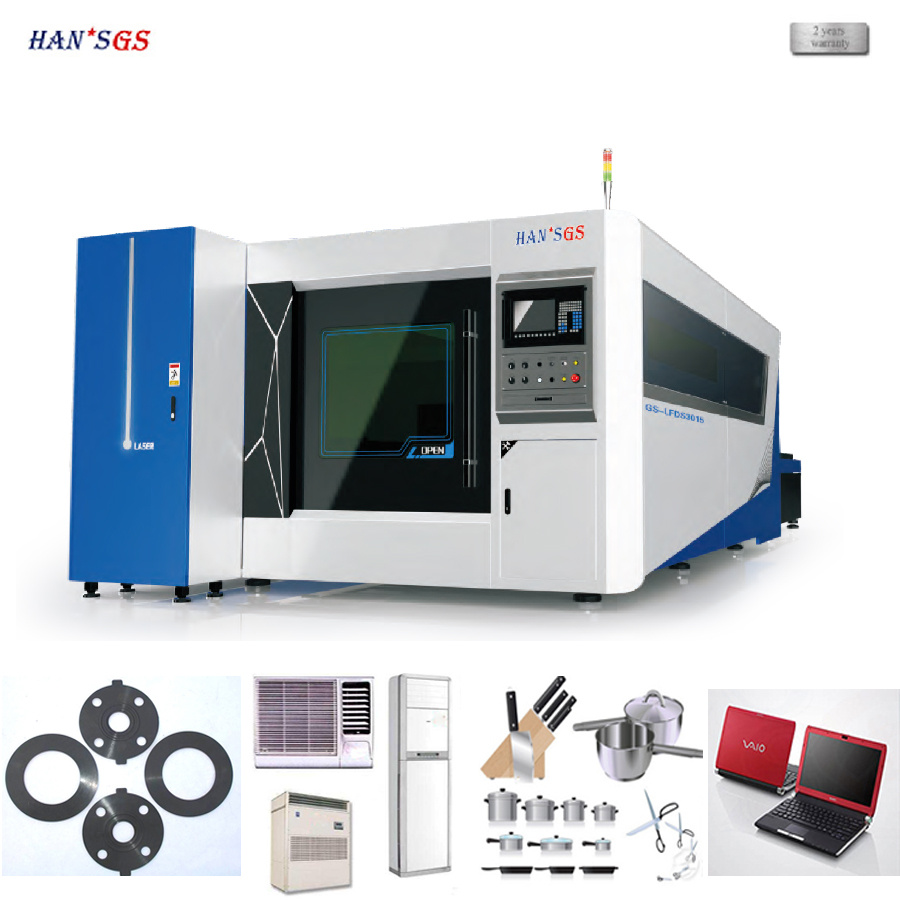

CNC Laser Cutter, Fiber Laser Cutting Machine for Stainless Steel, Carbon
| Price: |
US $ 3000-150000/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Cnc laser cutter , fiber laser cutting machine forstainless steel, carbon
Specialized Highly Follow-up Sensor
1. Oscilloscope function, detects the change of capacitance and height in real time.
2. Warning when panel is collided and lack, prevent accidental collision to the laser head.
3. Edge detection, auto finding plate edge, leapfrog lift, segmental perforation, lift height can be set arbitrarily.
4. One key calibration, fast, easy and convenient to operate.
5. Matched with any cutting head and spray nozzle, auto adapted the capacitance parameter.
Product
Fiber Laser Cutting Machine Technical Parameters | Model | GS-LFDS3015 | GS-LFDS3015 | GS-LFDS3015 |
| Laser source medium | Fiber |
| Cutting range(L*W) | 3000mm × 1500mm | 3000mm × 1500mm | 3000mm × 1500mm |
| Z axle stroke | 150 mm |
| Max cutting speed | 40m/min | 42m/min | 45m/min |
| Max positioning speed | 140m/min |
| Wok platform size/Max height of feeding material | 4250x2500mm/more than 120mm |
| Cooling form | water cooling |
| Laser wavelength | 1070nm |
| Output power of laser source | 1000W (imported) | 1500W (imported) | 2000W (imported) |
| Min. cutting gap | ≤0.1mm | ≤0.125mm | ≤0.125mm |
| Positioning accuracy of X, Y and Z axles | ±0.03 mm |
| Repeated positioning accuracy of X, Y and Z axles | ±0.02 mm |
Thickness of cutting material
(according to material) | 0.2-8mm | 0.2-12mm | 0.2-16mm |
| Drive model | Imported servo motor |
| Power requirement | 380V,50/60Hz |
| Working temperature | 5ºC-45ºC |
| Continuous working time | 24 Hours |
| Machine weight | About 5950Kgs |
| Outer dimension | 7828mm x 3741mm x 1940mm |
| Total protection level of power supply | IP54 |
Oblique Gear
Adapted to various working conditions, dust prevention, high accurate movement for a long time.
1. Adopts the most advanced grinding technique, accuracy grade is up to DIN6h grade, GB4 grade, the world's highest grade for quantity production.
2. The cumulative error of grinding accuracy is 0.012/30mm (any 300mm).
3. Heat treatment, support various strength.
4. With square and circle type, easy to integrate during apply.
5. Various materials: alloy steel, stainless steel, engineering plastics.

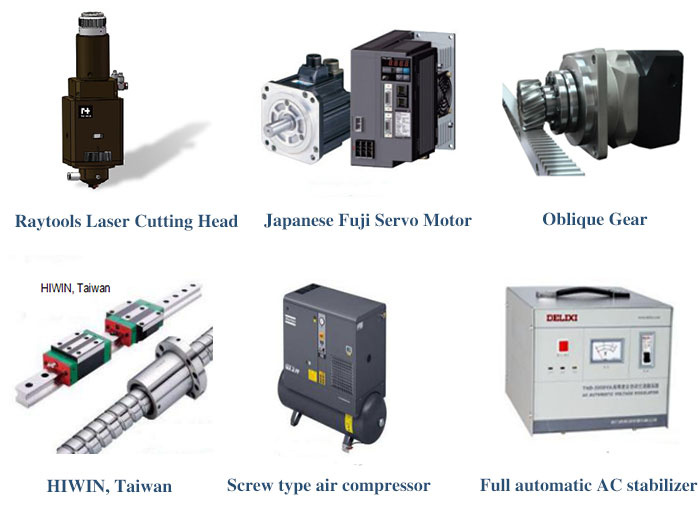

Laser cutting machine components

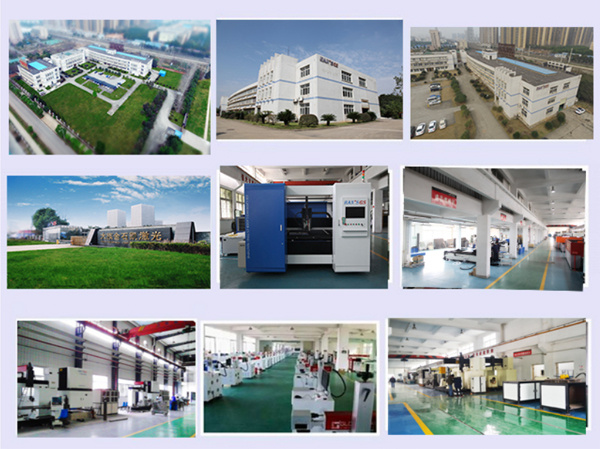

Our company
1.Almost 20 years,we build-up the richest technology foundation in China.We can guarantee that no other companies can compete with us about the technology.
2.In 2007,Hans Laser Group mergered and acquisted goldensky company.
3.Hans Laser is the largest laser machine?manufacturer in Asia.Hans Laser is a listed company,and the stock code is 002008.Hans Laser has more than 30 service points in 30 countries.Because of our richest technology of laser,Hans Laser Group purchased our goldensky,and we changed our company name to?Wuhan Hans Goldensky Laser System CO., LTD.Hans Laser overseas service points help us a lot and ensure our global service.
Cutting Materials
It is used to cut the metal materials,such as stainless steel, carbon steel, alloy steel, silicon steel, spring steel, galvanize plate, pickled plate, copper plate, aluminum plate, etc.
Application Industry
Widely used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, kitchen utensils and appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
| Prod Model: |
GS-LFDS3015 |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Certification: |
Ce, ISO 9001:2000 |
| Automation: |
Semi-Automatic |
| Condition: |
New |
| Type: |
Laser Cutting Machine |
| Type For Fold-Bending Machine: |
Laser Cutting Machine |
| Type For Pipe And Tube Bending Machine: |
Laser Cutting Machine |
| Power Source: |
Fiber Laser |
Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008). We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine. We also provide automatic processing solving plans.
Company has been successively undertaken the national development and reform commission (NDRC) national high-tech industrialization demonstration projects, the top ten key projects in Hubei province, Wuhan city top ten industrial projects of science and technology, and other government science and technology projects, including three products listed as a key project of national torch plan by the national ministry of science and technology. We successively obtains the national innovation fund, the electronic information industry development fund and a number of special fund support of Hubei province and Wuhan city, to be listed as the key innovation enterprise in east lake development zone, the key support leading enterprise in "large-scale laser equipment system integration and the new type laser manufacturing field" in Wuhan's 11th five-year plan.
Most of the products of our company has fully independent intellectual property rights, widely used in steel metallurgy, petroleum, tobacco, automobile, machinery, aerospace, chemical, home appliances and other manufacturing industries. In the future, the company will continue to be based on innovation of new and high technology, using its own technology advantages to contribute to the industrialization development of laser processing complete equipment.
