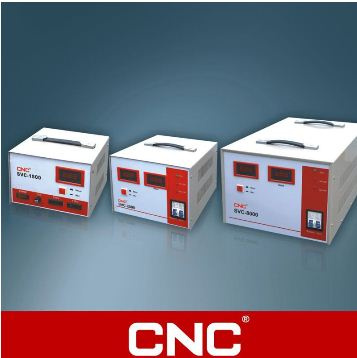

SVC Single Phase High Accuracy Automatic AC Voltage Stabilizer:
General:
SVC voltage stabilizer This voltage stabilizer is of common type, SVC voltage stabilizer has the function of connecting through the commercial power. Compared with other voltage stabilizers, SVC voltage stabilizer has the advantage of great variety, complete specification, nice appearance and obvious features of high efficiency, no wave distortion, reliable performance, working continually for long time, besides, SVC voltage stabilizer is provided with short time delay and over voltage protection, and the long time delay and under voltage protection also can be set according to user requirement. SVC voltage stabilizer is an ideal stabilized voltage supply, widely used in any locations requiring electricity and ensures your power device can run normally.
Specification:
1. Model: SVC
2. Function: Control circuit & servo motor
3. Input voltage: 160~250V/70~130V
4. Output voltage: 220± 3% with 110V± 3%
5. Rated capacity: 500VA, 1kVA, 1.5kVA, 2kVA, 3kVA, 5kVA, 7.5kVA, 7.5kVA, 10kVA, 15kVA, 20kVA
6. Rated frequency: 50/60Hz
7. Ambient temp.: -15~40
8. Features: High power factor, high efficiency
9. Certificate: ISO9001: 2000, ISO14001: 1996, CE
|
|
TND500VA~3000VA |
TND5000VA~30000VA |
|
Input voltage accuracy |
150~250V |
160~250V |
|
Output voltage |
Regulation accuracy |
220V± 3%, 110V± 4% |
220V± 3% |
|
Under-voltage protection |
184± 4V ( set accoding to users requirement, generally not set) |
|
Over-voltage protection |
246± 4V |
|
Efficiency |
> 90% |
|
Regulating speed |
< 1s (when input voltage varies 10%) |
|
Frequency |
50Hz or 60Hz |
|
Ambient temp, Relative humidity |
-5º C~+40º Cless than 90% |
|
Waveform distortion |
No additional distortion |
|
Model |
Specification & capacity (VA) |
Overall size (W*D*L) mm |
TQY(PC) |
Package size/set(W*D*L) mm |
Gross weight kg |
Net weight kg |
|
Single-phase movable type SVC |
SVC-500 |
195*160*140 |
4 |
420*240*350 |
20 |
18 |
|
SVC-1000 |
205*200*150 |
4 |
510*280*390 |
22.5 |
21 |
|
SVC-1500 |
205*200*160 |
4 |
510*280*390 |
27 |
25.5 |
|
SVC-2000 |
240*285*200 |
1 |
375*310*270 |
11 |
10.5 |
|
SVC-3000 |
240*300*235 |
1 |
385*315*305 |
13.5 |
12.5 |
|
SVC-5000 |
240*475*205 |
1 |
550*315*270 |
23 |
22 |
|
SVC-7500 |
295*475*240 |
1 |
555*370*305 |
29 |
28 |
|
SVC-10000 |
295*475*240 |
1 |
555*370*305 |
33 |
32 |
|
Single-phase cubicle type SVC |
SVC-5000 |
310*280*450 |
1 |
430*390*560 |
29 |
25 |
|
SVC-7500 |
310*280*450 |
1 |
430*390*560 |
38 |
33 |
|
SVC-10000 |
310*280*530 |
1 |
430*390*610 |
42 |
37 |
|
SVC-15000 |
320*420*620 |
1 |
540*510*790 |
58 |
54 |
|
SVC-20000 |
320*420*620 |
1 |
540*510*790 |
61 |
57 |
|
SVC-30000 |
380*420*740 |
1 |
530*480*850 |
66 |
60 |
