| Prod Model: |

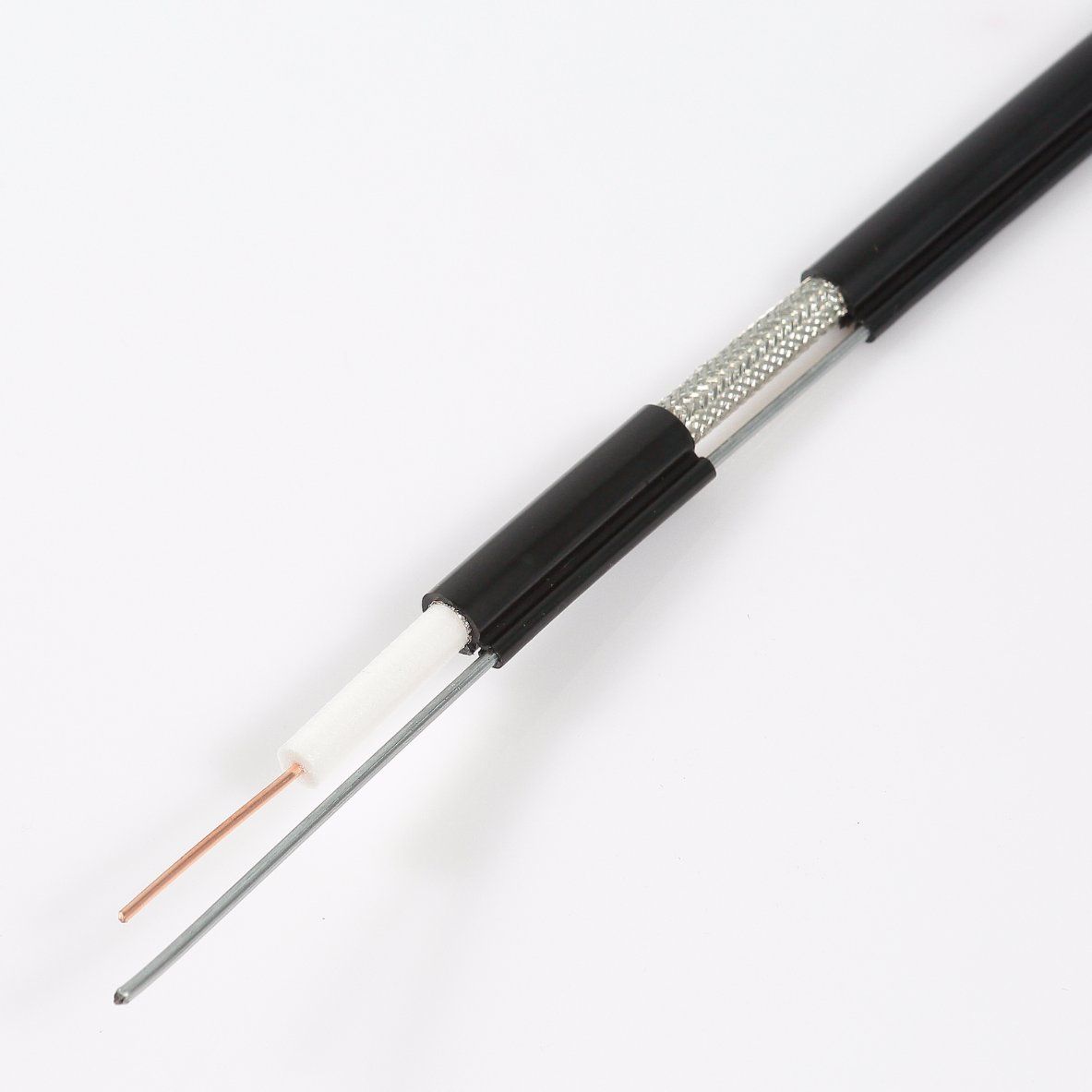

Coaxial Cable RG11 |
| Application: |
Coaxial Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Certification: |
RoHS |
| Brand: |
Jiuxin |
Product Description
High Quality 75 OHM RG11 Belden Coaxial Cable| Construction |
| inner conductor | material | copper clad steel wire |
| Diameter | 1.63±0.015 mm |
| insulation | material | physically foamed PE |
| dia. | 7.11±0.15 mm |
| outer conductor | 1st shield | Bonded Al/PET Tape
7.29 mm(Nom) |
| 2nd shield | Al-Mg Alloy Wire Braid |
| 3rd shield | non-boned AL/PET/AI tape |
| 4th shield | Al-Mg Alloy Wire Braid |
| jacket | material | PVC |
| diameter | 10.34±0.20 mm |
| Mechanical properties |
bending
radius | single
typical | 50 mm
100 mm |
| pulling strength | 384 N |
| adhesionforce | >60 N |
| Electrical properties |
| impedance | 75±3 Ω |
| capacitance | 51 pF/m |
| propagation velocity | 82 % |
| DC breakdown voltage | 6.0 kV |
| insulation resistance | >10000 MQ.km |
| screening attenuation | >>75@50-1000MHz dB |
| Attenuation and average power |
| frequency,MHz | max.attenuation@20°C,dB/100m |
| 55 | 3.15 |
| 211 | 6.23 |
| 300 | 7.38 |
| 450 | 9.02 |
| 550 | 9.97 |
| 750 | 11.97 |
| 865 | 13.05 |
| 1000 | 14.27 |
| Return loss, dB |
| 5-1000 MHz | ≥20 |
| Standards |
| 2011/65/EU | compliant |
1.Application CATV-community antenna television
CCTV-closed-circuit television
DBS-direct broadcasting satellite
2.Characteristics Impedance: 75+/-3 Ohm
Velocity of Propagation: 85%
Capacitance: 54 pF/m
Return Loss: 20dB min
3.Packing
Packing length: 100yard/roll , 305m/roll .
Inner packing : plastic cover / wooden drum / paper drum .
Outer packing : 2 or 3 roll / carton box .
Other packing as client's request .
4.About US
Suzhou Jiuxin Cable Co. Ltd was founded in 2003. is a professional manufacture of coaxial cable. located in Qidu town ,Wujiang District of Suzhou City. Company occupies the workshop area 3000 square meters, and employs 200 people.

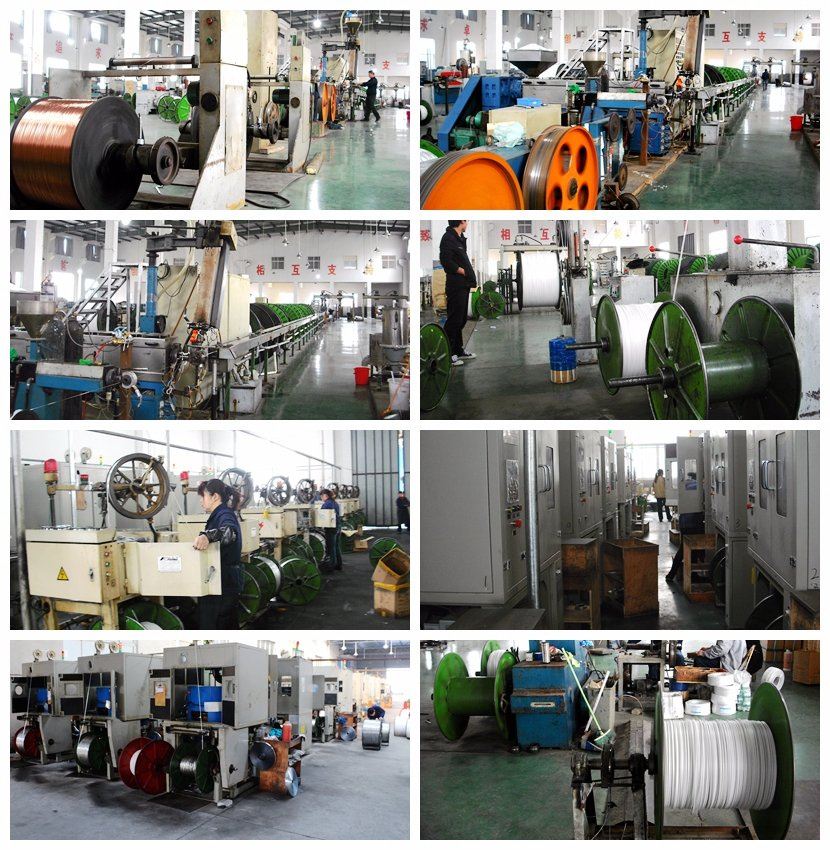

The company mainly produces CATV television cable (coaxial cable) SYWV75-5 series, SYWV (Y) 75-7 series, SYWV (Y) 75-9 series, SYWV (Y)75-12 series, SYWLY75-9/12 aluminum pipe cable series, RG6 series and RG11 series and so on. Inspection by professional organizations, the company's products meet national standards, and we have got SARFT registration certificate and ISO quality system certification.5.Production workshop
6.Question & Answer 1. What is your MOQ?
Generally, we make mass production based on MOQ 500pcs, single blister packing, since our sub-supplier ask
for 500pcs MOQ for blister. So if bulk package is ok for you, we can accpet lower order quantity.
2. How about your delivery date?
Normally our delivery date is about 25-30days after payment received.
3. Can you supply sample for customer
We can supply sample for customer's quality checking before placing new order to us, the delivery
cost will be charged on customer's account.
4. How about your price?
We will do our best to offer a good price for our customers, usually our price is worked out according
to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!

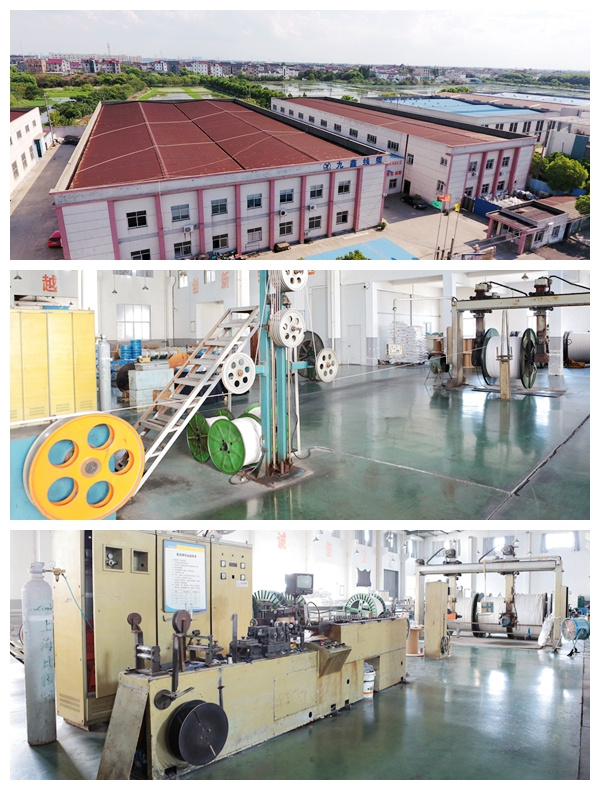

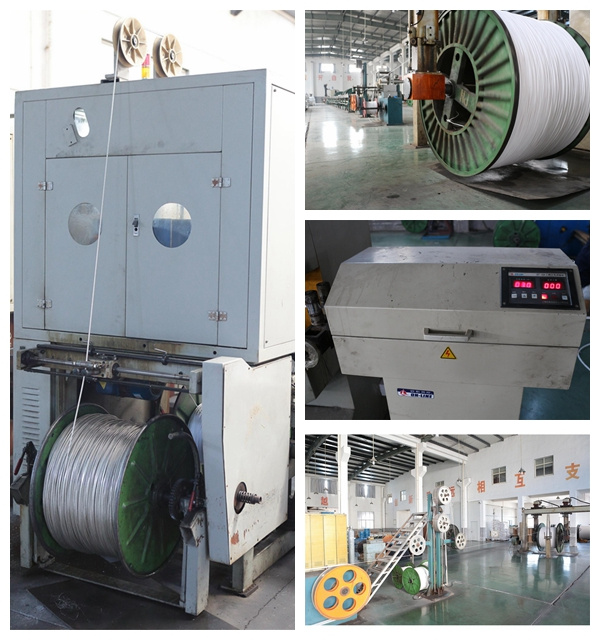

Suzhou Jiuxin Cable Co. Ltd was founded in 2003. Is a professional manufacture of coaxial cable. Located in Qidu town, Wujiang District of Suzhou City. Company occupies the workshop area 3000 square meters, and employs 200 people.
The company mainly produces CATV television cable (coaxial cable) SYWV75-5 series, SYWV (Y) 75-7 series, SYWV (Y) 75-9 series, SYWV (Y)75-12 series, SYWLY75-9/12 aluminum pipe cable series, RG6 series and RG11 series and so on. Inspection by professional organizations, the company's products meet national standards, and we have got SARFT registration certificate and ISO quality system certification.
Providing excellent service to all customers is the basic policy of Jiuxin. With excellence in quality control and the responsibility of management, we will continuously devote to company future and staff well-beings.
