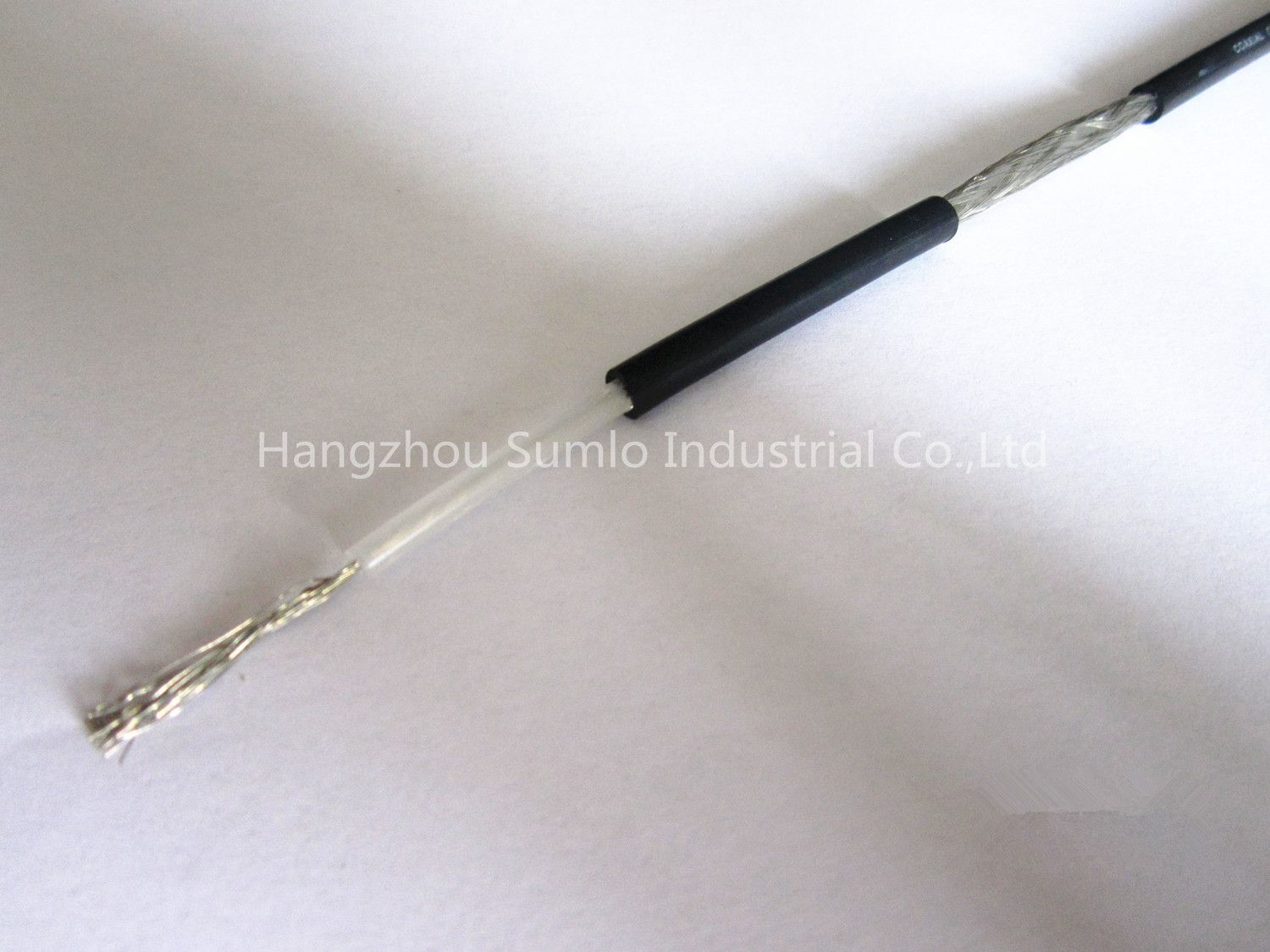

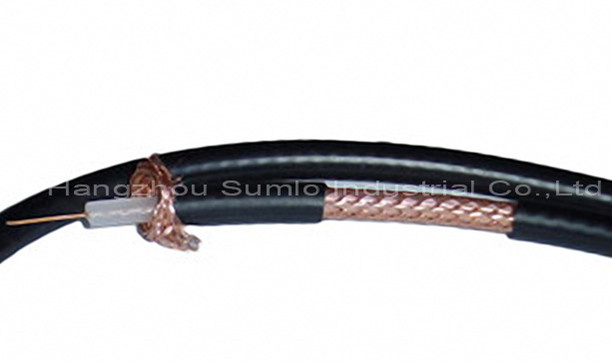

Coaxial Cable Rg58/U

Prod Model:	RG58/U, RG58A/U, RG58C/U
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Coaxial Cable:	Mil Spec Cable
Application:	Coaxial Cable
Cover Material:	PVC
Certification:	CCC
Conductor Material:	Tc/Bc
Type:	Solid PE Mil-Spec

Brief: SUMLO CABLE - CATV AND MATV COAXIAL CABLE

Sumlo Cable supplies wires and cables, predominantly coaxial cable for CATV (Community Antenna Television), MATV (Master Antenna Television), base stations and wireless communication.

We also provide cable for MIL spec, UTP (Unshielded Twisted Pair) cable, OFC (Optical Fiber Conductive) cable, audio cable, power cable, electric cable, etc. Our R&D department can design cable according to customers' requirements. These cables are manufactured by companies including Commscope, Belden and TFC.
Sumlo Cable operates according to the ISO: 9002 quality standard.

COAXIAL CABLE FOR CATV AND MATV
CATV cable, a foamed PE (polyethylene) cable, is a high frequency, low loss cable that is widely used for satellite TV systems. Cable specifications can be designed according to customers' requirements.

Sumlo Cable's stock of HFC (Hybrid Fiber Coaxial) cable for CATV and MATV systems includes drop cable (braiding outer conductor type) and distribution cable (aluminium tube outer conductor type). Drop cables consist of the following types: RG59, RG6, RG7 and RG11. Distribution cables include 500 and 540 serial types.

Sumlo Cable's latest coaxial cable products are the JIS series and RG series cables. These cables are mainly used for video signal transmission from fixed and mobile wireless communication equipment or similar electronic devices.

UK STANDARD COAXIAL CABLE FOR CATV
Sumlo Cable supplies a wide range of UK coaxial cables for broadcast applications. The following is a brief outline of these products.

ANTENNA DOWNLEAD FOR UHF TRANSMITTERS
75ohm coaxial cables are used for the reception of UHF analogue and digital signals broadcast from terrestrial transmitters. The 'c'and 'RF' cable range is designed for use in areas where the signal level ranges from average to strong.

BROAD AND VIDEO COAXIAL CABLES
Sumlo cables offer excellent signal integrity due to narrower electrical tolerances and improved shielding. They include:
Standard video coaxial cables - these screened cables, for use in broadcast installation, are available with PVC or LSZH outer sheaths
Miniature 75ohm coaxial cable - suitable for video signal distribution including RGB type systems, these cables are also available with PVC or LSZH sheaths precision serial digital video coaxial cables

DROP CABLE
Ideal for use in areas where reception levels of UHF signals from terrestrial transmitters are poor, these 75ohm double-screened low loss cables provide an optimum and reliable electrical performance while retaining a low overall diameter for ease of installation. Drop cables are used as the subscriber feeder cable, often connecting to the set top box in DTH, IRS, MATV and CATV systems.

Dual cable versions are designed for use with the twin tuner set top boxes where electrical performance and screening between the cables is critical.

RADIO FREQUENCY CABLE
Single- and double-screened 50ohm and 75ohm coaxial cables are the most popular cables from our wide range of URM and RG type cables.

TRUNK CABLE
75ohm double-screened low loss trunk cables offer an optimum attenuation performance for main trunk / distribution use in IRS (Integrated Reception System), MATV and CATV systems where longer cable runs are required.

SUMLO CABLE
Sumlo Cable has supplied cable to more than 50 countries worldwide. Our commitment to our customers continues to drive Sumlo towards greater advances in our products, backed with pride in our past innovations.
