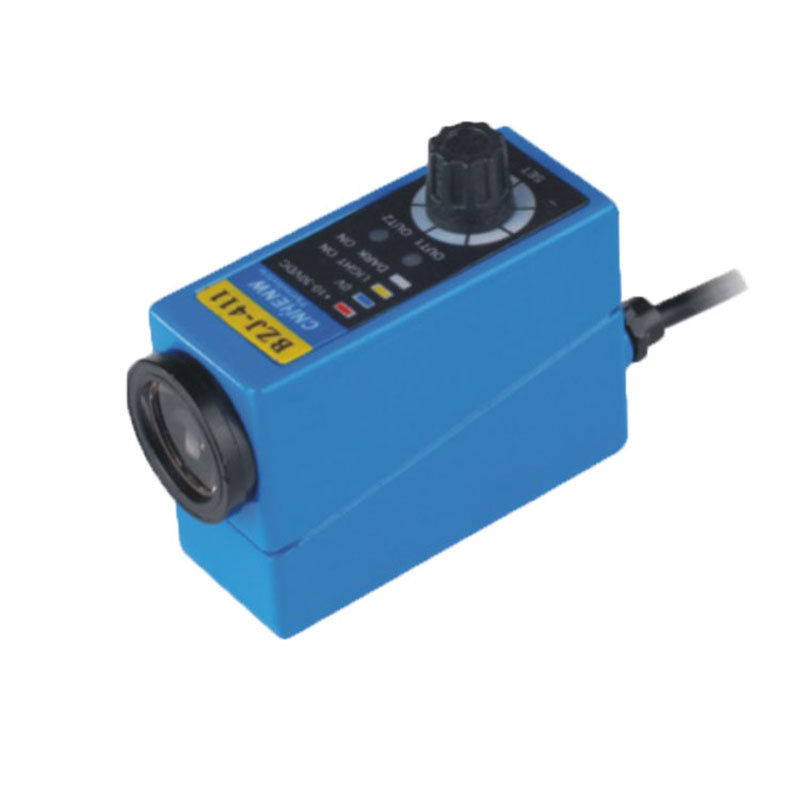

Color Mark Photoelectric Sensor Switch Bzj-411

Name: Color Mark Photoelectric Sensor Switch Bzj-411
Brand: all-electronics-online.com
SKU: 834480585
Availability: InStock
Rating: 4.5 (35 reviews)

Price:	US $ 10/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Photoelectric Sensors detect photo-optical workpieces. DESON provides many varieties of Sensor, including diffuse-reflective, through-beam, retro-reflective, and distance-settable Sensors, as well as Sensors with either built-in or separate amplifiers.

Features :

Compact volume
High precision of repeated location
Diversified exterior structures
Good performance of anti-interference.
Many output forms
High on-off frequency.
Wide voltage range
Dust proof, vibration proof, water proof and oil proof.
With short-circuit protection and inverted connecting protection.
Long service life

BZJ-411	Color mark sensor
Chromatogram of light	R: Red,G: Green, B: Blue, W: White
Logic classification	P: PNP, N: NPN

Model	BZJ-411RP	BZJ-411RN
	BZJ-411GP	BZJ-411GN
	BZJ-411BP	BZJ-411BN
	BZJ-411WP	BZJ-411WN
Size	234456mm
Supply voltage	10-30VDC
Ambient temperature	0-50°C
Detecting method	Coaxial reflection
Sensing distance	9mm
Chromatogram of light	Red, Green, Blue, White
Facula	Circular
Response time	200us/500us
Output current	<200mA
Output type	PNP	NPN
Shell material	Metal
Cable length	2m
Protection	RP-power protection, load short-circuit protection
Weight	0.2kg

Inductance type

LM5 LM6 LM8 LM8-T LM12 LM12-T LM18 LM18-T LM30 LM30-T LMF1 LMF2 LMF3 LMF11 LMF37 LMF340 PR08 PR12 PR18 PR30 E2E-2 E2E-X4 E2E-X5 E2E-X8 E2E-X10 E2E-X18

Capacitance type

CM12 CM18 CM30 CMF37 E2K

Hall type

SM8 SM12 SM18

Mimic linear type

XM12 XM18 XM30 XMF37 XMF38

Ultrasonic type

UB400 UB500 UB1000 UB1500 UB2000

Safety explosion-proof type

AM8 AM12 AM18 AM30

Reed type

TCS1-E TCS1-F

Photoelectric type

G12 G15 G16 G18 G30 G50 G63 G139

Color mark and Area secure type

BZJ-211 BZJ-311 BZJ-411 BZJ-511 KS-C2 Z3N-TB22 GM20 GM40

Prod Model:	BZJ-411
Detection Distance:	9mm
Working Voltage:	DC10-30V/AC90-250V
Output Form:	NPN / PNP / Two Wire / SCR
State:	No / Nc
Cable Length:	2m
Type:	Photoelectric Switch
Production Process:	Flush or Non-Flush
