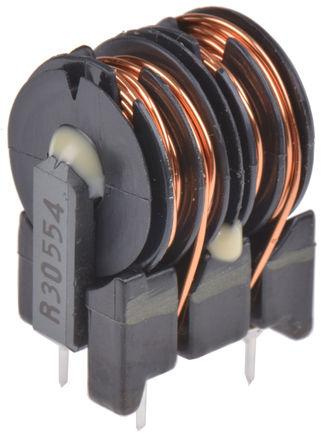

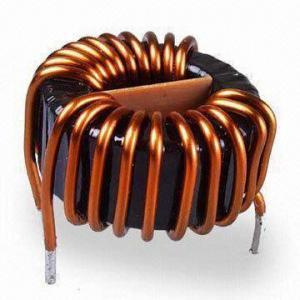

Common Mode Choke

Common Mode Choke
Price: US $ 1-3/Piece
Min Order: 2000/Piece
Pay Type: T/T
Contact Supplier
Showroom Product Company Profile
The common mode inductance, also called the common mode choke, is a coil with symmetrical turns and opposite turns on a closed magnetic ring. The ideal common mode choke has an inhibitory effect on the common mode interference between the L (or N) and the E, while there is no inductance suppression between the L and the N in the presence of differential mode interference. But the incomplete winding of the actual coil will lead to the generation of differential mode leakage inductance. When the signal current or the supply current flows in the two windings in opposite directions, the magnetic flux produced is offset against each other, and the choke presents a low impedance. The common mode noise current (including the current loop caused by disturbance, also called longitudinal current) through the two winding when the same direction, the magnetic flux to the same sum, choke present high impedance, which plays the role of common mode noise suppression.




Prod Model: UT20
Type: Choke Inductor
Structure: Inductive Choke
Brand: Epy
ANHUI EMPATHY INTERNATIONAL Co., Ltd (EMPATHY INTERNATIONAL Co., Ltd), established in 2012, is an import and export trading company specialized in electronic components and durable goods. Different from traditional import and export trading companies, our company mainly serves end customers abroad and is known for stable and flexible trading system, outstanding product quality and excellent commercial integrity. Moreover, fast response and good service have won many new and old customers favorable comments, new markets are constantly developed.

ANHUI EMPATHY INTERNATIONAL Co., Ltd follows the international trade custom, adhering to a business philosophy of mutual benefit, where contracts are honored and commercial integrity is maintained. We have established broad cooperation with international commercial circles and financial circles, which helps to link China to the global markets. Empathy International is willing to cooperate with friends overseas and domestic and seek common development.
