Competitive Price Printed Circuit Board PCB and PCBA Assembly
| Price: |
US $ 1.5-2PCS |
| Trade Terms: |
FOB,DAT,DAP |
| Min Order: |
1PCS |
| Pay Type: |
L/C,T/T,Paypal |
Ucreate LTD PCB's aim Customer Satisfaction is Always Our First Priority!
*Quality Policy
*Top Quality and high efficiency
*Improve continuously
*Achieve customer's satisfaction

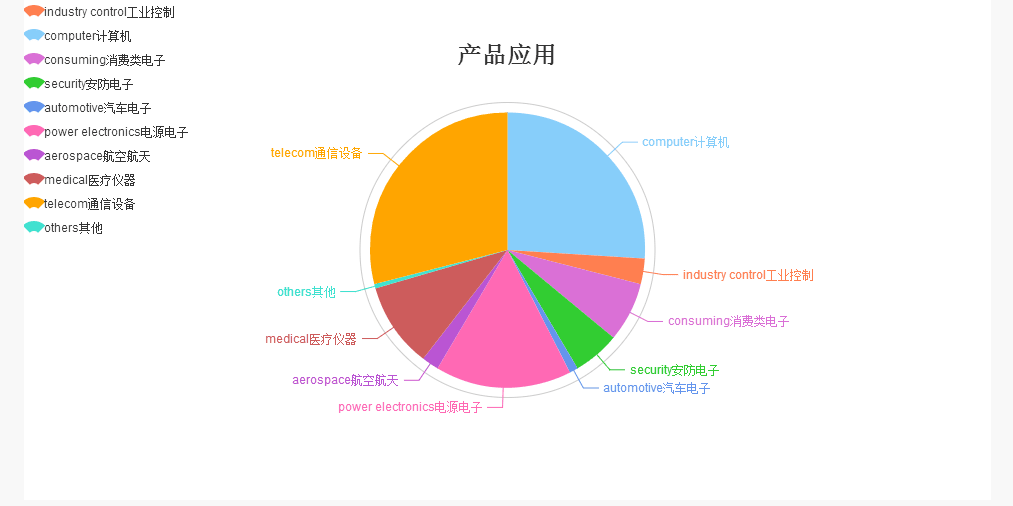

1.Products Application

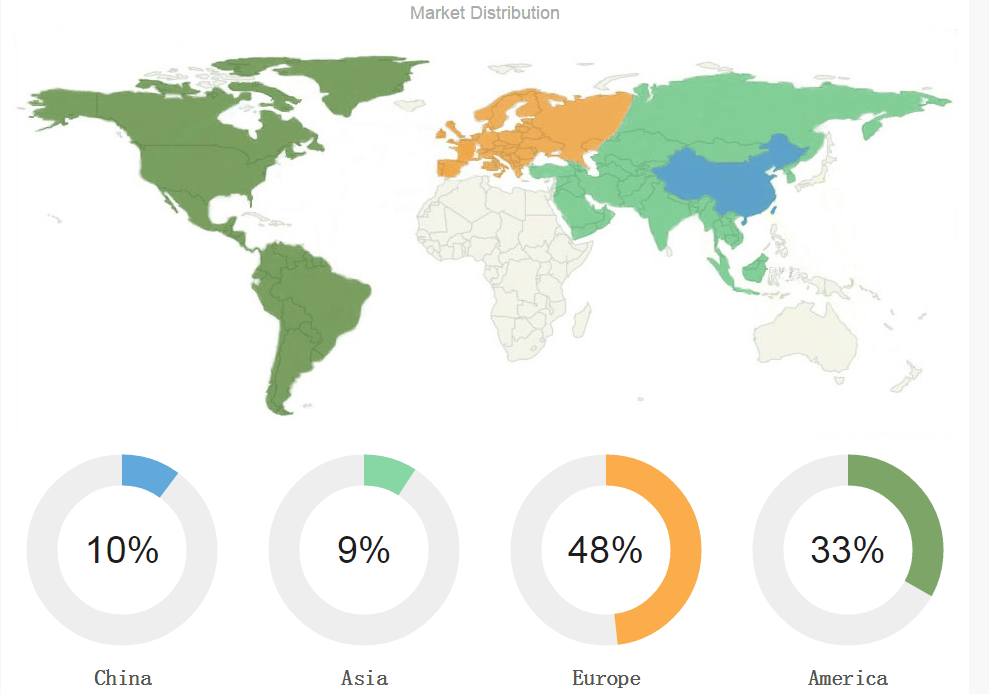

2. Market Distribution
3.Technical Capabilities| Items | Speci. | Remark |
| Max panel size | 32" x 20.5"(800mm x 520mm) | |
| Min trace width/ space (inner layer) | 4mil/4mil(0.1mm/0.1mm) | |
| Min PAD (inner layer) | 5 mil(0.13mm) | hole ring width |
| Min thickness(inner layer) | 4 mil(0.1mm) | without copper |
| Inner copper thickness | 1~4 oz | |
| Outer copper thickness | 0.5~6 oz | |
| Finished board thickness | 0.4-3.2 mm | |
Board thickness tolerance control | ±0.10 mm | ±0.10 mm | 1~4 L |
| ±10% | ±10% | 6~8 L |
| ±10% | ±10% | ≥10 L |
| Inner layer treatment | brown oxidation | |
| Layer count Capability | 1-30 LAYER | |
| alignment between ML | ±2mil | |
| Min drilling | 0.15 mm | |
| Min finished hole | 0.1 mm | |
| Hole precision | ±2 mil(±50 um) | |
| tolerance for Slot | ±3 mil(±75 um) | |
| tolerance for PTH | ±3 mil(±75um) | |
| tolerance for NPTH | ±2mil(±50um) | |
| Max Aspect Ratio for PTH | 8:1 | |
| Hole wall copper thickness | 15-50um | |
| Alignment of outer layers | 4mil/4mil | |
| Min trace width/space for outer layer | 4mil/4mil | |
| Tolerance of Etching | +/-10% | |
| Thickness of solder mask | on trace | 0.4-1.2mil(10-30um) | |
| at trace corner | ≥0.2mil(5um) | |
| On base material | ≤+1.2mil
Finished thickness | |
| Hardness of solder mask | 6H | |
| Alignment of solder mask film | ±2mil(+/-50um) | |
| Min width of solder mask bridge | 4mil(100um) | |
| Max hole with solder plug | 0.5mm | |
| Surface finish | HAL (Lead or Lead free), immersion Gold, Immersion Nickel, Electric Gold finger, Electric Gold, OSP, Immersion Silver. | |
| Max Nickel thickness for Gold finger | 280u"(7um) | |
| Max gold thickness for Gold finger | 30u"(0.75um) | |
| Nickel thickness in Immersion Gold | 120u"/240u"(3um/6um) | |
| Gold thickness in Immersion Gold | 2u"/6u"(0.05um/0.15um) | |
| Impedance control and its tolerance | 50±10%,75±10%,100±10% 110±10% | |
| Trace Anti-stripped strength | ≥61B/in(≥107g/mm) | |
bow and twist
| 0.75% | |

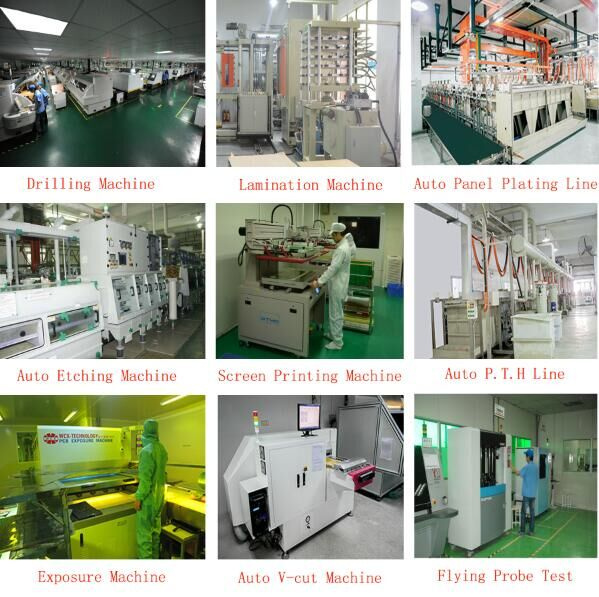

4.Products Equipment

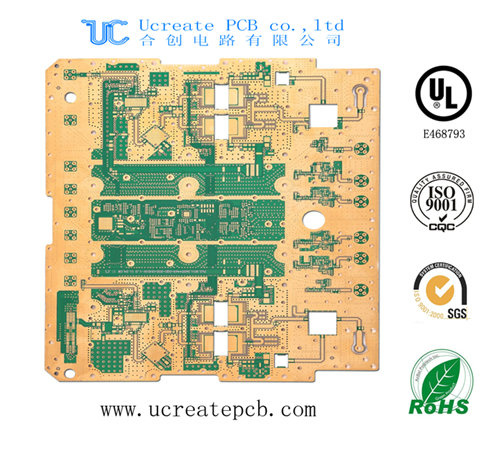

| Prod Model: |
UC-5566 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Board Layer: |
10L |
| Surface Finihsing: |
Immersion Gold |
| Lead Time: |
6-8 Working Days |
| Structure: |
Multilayer Rigid PCB |
| Material: |
Polyester Glass Fiber Mat Laminate |
| Production Process: |
Subtractive Process |
| Processing Technology: |
Enig |
Established in 2004, Ucreate PCB Co., Ltd is a professional manufacturing enterprise majoring in high end and multi-layer Printed Circuit Board.
Along with more than 10 years' development, Ucreate has settled its factories both in Shenzhen and Huizhou city, covering facility area 12000 Square meters, with more than 800 employees, among them, 150 with highly professional who are no less than 10 years expert in PCB field. Now we are reaching a monthly capability of 30000 Square meters.
Our main products range from Multilayer PCB, High frequency PCB, Metal base PCB, Hi-Tg heavy copper foil PCB and Mixed Dielectric base PCB, HDI, rigid-flex PCB, and many other customized PCB with special performance which are widely used in Communication, power supply, computer, consumer electronics, industrial control, medical device, Aeronautics and Astronautics high technology field and spread over America, Europe and some Asia Districts, achieving their satisfication.
Ucreate has been certificated with ISO9001, ISO14001, UL from US and Canada, all of our products are with RoHS certification.
Under the mission " high quality, exact delivery, customers' satisfactions, continuous development, Common innovation ", We believe Ucreate will develop better and better with your participation.
