Conference Room Sound System UHF Wireless Microphone Professional

Name: Conference Room Sound System UHF Wireless Microphone Professional
Brand: all-electronics-online.com
SKU: 799091695
Availability: InStock
Rating: 4.9 (84 reviews)

Price:	US $ 1-650/Piece
Min Order:	2/Piece
Pay Type:	T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	GS8008
Receiver Number:	One
Mic Number:	Eight
Model No:	Cm8008
Frequency Range:	UHF500-900MHz
Frequency Stability:	+/- 0.001%
Dynamic Range:	> 100dB
Frequency Response:	40Hz-20kHz
Power Supply:	DC 12V~17V
Working Temperture:	-10ºC-50ºC
Working Distance:	50-100m
Style:	Gooseneck Microphone
Application:	Meeting
Signal Transmission:	Wireless
Directivity:	Uni-direction
Sound Channel:	Stereo
Transducer Principle:	Condenser Microphone
Connector(',s):	XLR 3 Pin
Wireless Technology:	UHF
Output Impedance:	50-1000Ω
Sound Field Force:	Microphone

Product Description

Conference Room Sound System UHF Wireless Microphone Professional

GS8008 gooseneck conference room sound system descriptions:

Skytone GS8008 is professional conferenceroom sound system with exellent quality and outstanding perfomance. The GS8008 UHF wireless microphone consists of 1 receiver and 8 microphones.This GS8008 wireless conference system can be widely used in various occasions such as conference hall and lecture contest.

GS8008 UHF wireless professional microphone parameters:

8 channel wireless conference microphone Specification
Working frequency	UHF 500MHz-900MHz
Modulation Mode	FM
Channel spacing	500KHz
frequency stability	±0.001%
Dynamic range	>100dB
Maximum deviation	±30KHz
Frequency response	40Hz-20KHz
Integrated S / N	>105dB
Integrated T.H.D	<0.5% @1khz
Working distance	100M
Working Temperture	-10ºC-50ºC
Receiver Specification
Oscillation mode	PLL integrated control
Working frequency	UHF 500MHz-900MHz
frequency stability	±0.001%
Maximum deviation	±30KHz
Modulation Mode	FM
Integrated S / N	>105dB
Integrated T.H.D	<0.5% @1khz
Sensitivity	1.2/UV@S/N=12dB
Power supply	DC 12V~17V
Audio output	Independence 0-400mV Hybrid 0-300mV
Power	6W
Mic speacification
Battery	DC 4.5V(1.5V AA x 3)
Power consumption	100mA
Carrier frequency	UHF500~900MHz
frequency stability	±25kHz
Integrated S / N	>105dB
Adjacent channel interference ratio	>80dB
Dynamic range	>100dB
Cartridge type	condenser
Frequency response	40Hz-20KHz
Mic sensitivity	-47±3dB@1kHz
Oscillation mode	PLL integrated control
RF output power	10MW

Main features of GS8008 conference room sound system:

1.Gooseneck microphone rod supports freely turning.

2.LCD displays the working contents, and the rods shows the working situation.

3.Infrared automatic frequency, easy to use.

4.External antennas has strenghthen environment adaptive capacity.

5.Anti-interference design prevents all the complicated signals, and make your voice be perfectly presented to audience.

6.8 channels receive signals.

7.UHF frequecy transmit signal, the frequency range is 500MHz-900MHz.

8.5 sets equipments can be used simultaneously in the same show.It means using 5 receivers and 40 transmitters at the same time.

9.Receiver LCD shows the working channel, working frequecy and received signal strength indicator.Each screen displays 2 channels working condition.

Transmitter LCD indicates the signal channel, working frequency, mute state and current battery level.

10.4 rubber receiving antennas at the back of the receiver to strengthen the receiving signal.

11.Microphone electricity consumption is 80mA.It is powered by 1.5V AA*4, and can be used continuously for 16 hours.

12.Milky light can show the working condition, when the system is working, the milky light turns blue.

13.Working distance is 80-100 meters in open area, and 50-80 meters in complex environment.

14.Reliable Surface Mount Technology (SMT) production.

15.Professional audio output: XLR balanced output and 6.3 unbalanced output.

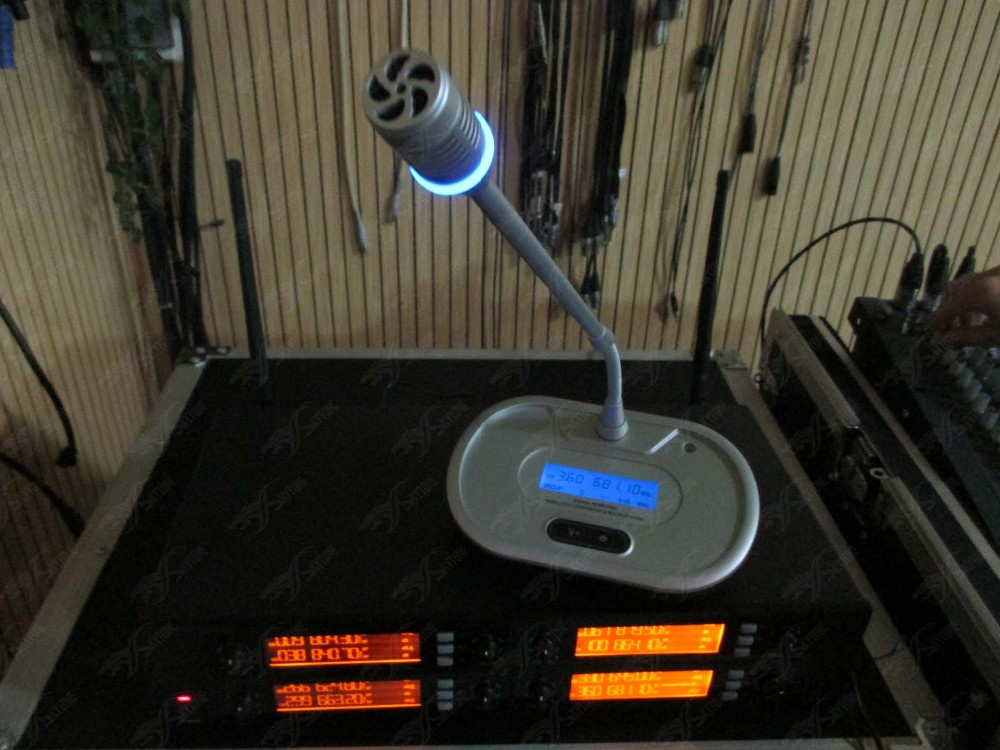

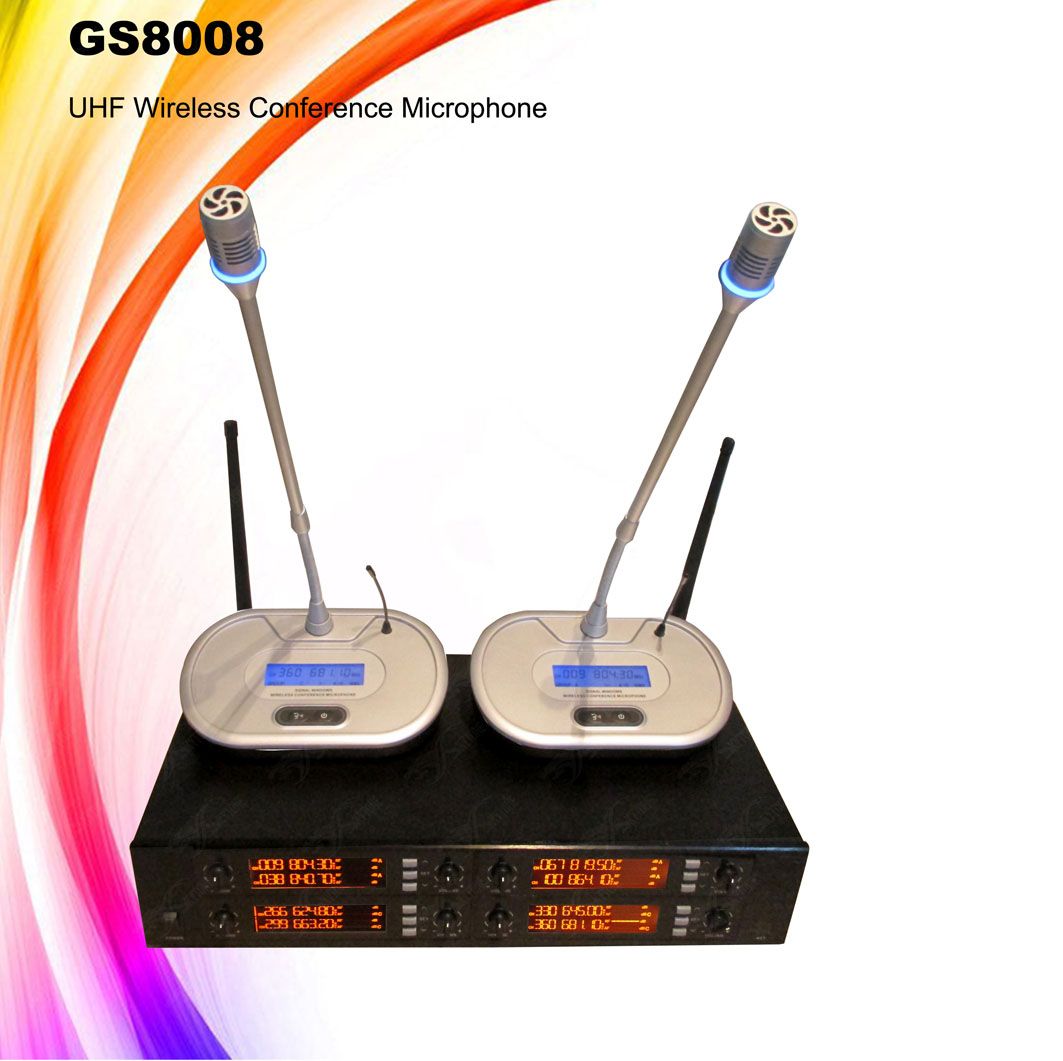

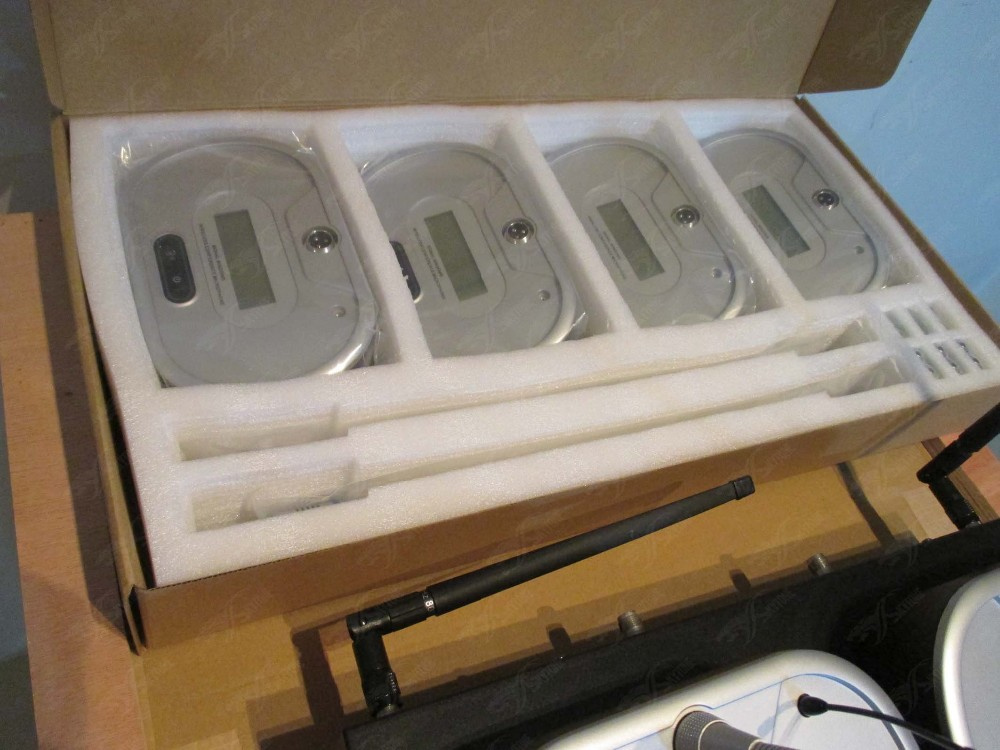

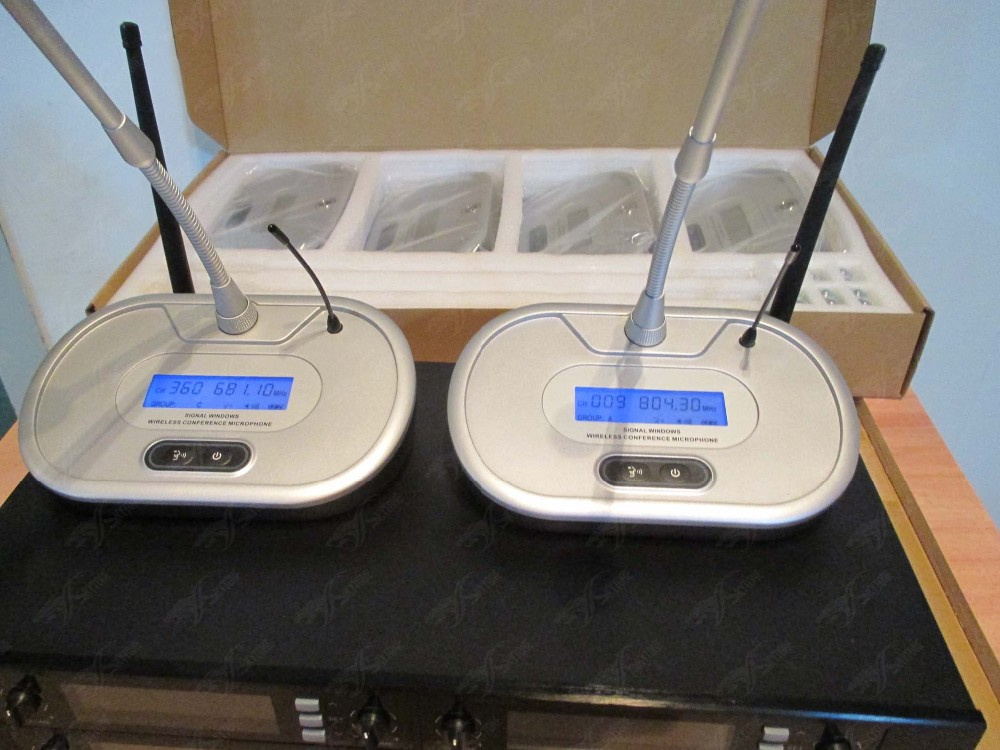

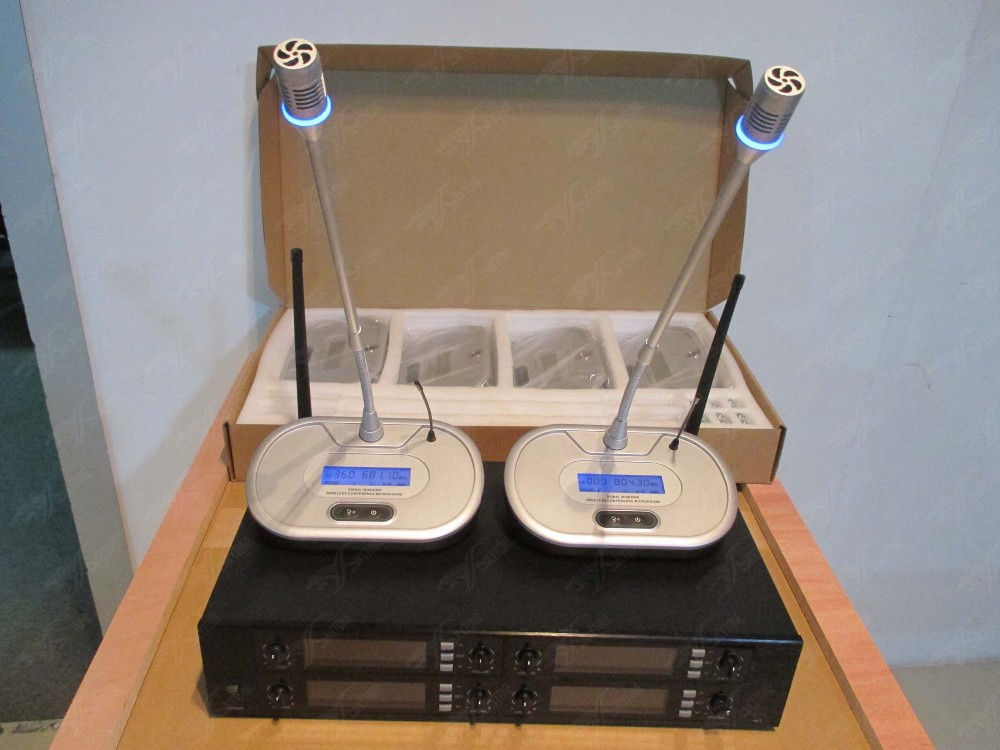

Photos of GS8008 conference sound system UHF professional wireless microphone:

Welcome to visit our company website:
www.skytone-audio.com

Guangzhou Skytone Audio Co., Limited, was founded in 2004. Our office is located in the beautiful, bustling Guangzhou City, in Yilong Industrial Zone, Baiyun District, near Baiyun Lake, with 1000 square meters company.

And our factory is located in Panyu district, Guangzhou city with more than 2000 square meters.

Skytone is White hair in PRO Audio business. We are specialized in professional loudspeakers, karaoke speakers, amplifiers and other audio peripheral such as microphone, mixer, equalizer, compressor, ect.

Quality is Skytone's culture. Our company gains a good reputation with good management mechanism, advanced technology, strong force of R&D, excellent quality and perfect after-sales services. There are many departments in our company including R&D, engineering, production, marketing, after-sales services and personnel.

To meet market developments and customers' needs, our company will continue to improve the product structure, operational management, as well as comprehensive quality of the staff. With brand-new products, vigorous power and stable paces, we will work hand-in-hand with customers home and abroad to create brilliant future!

Making your world sound better!
