Contactor Relay 24V 125A Power Contactor

Name: Contactor Relay 24V 125A Power Contactor
Brand: all-electronics-online.com
SKU: 836016235
Availability: InStock
Rating: 4.9 (86 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SW80-65
Brand Name:	Albright
Model Number:	Sw80-65
Quality:	Reliable
Warranty:	1 Year
Place Of Origin:	Anhui
Port:	Shanghai
Voltage:	24V
Current:	125A
Color:	Black

Product Description

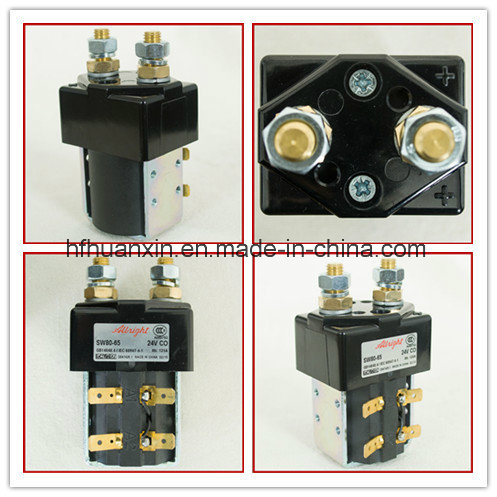

Contactor Relay 24V 125A Power Contactor

Product Description:

Specifications:

Manufacturer: ALBRIGHT (made in China)

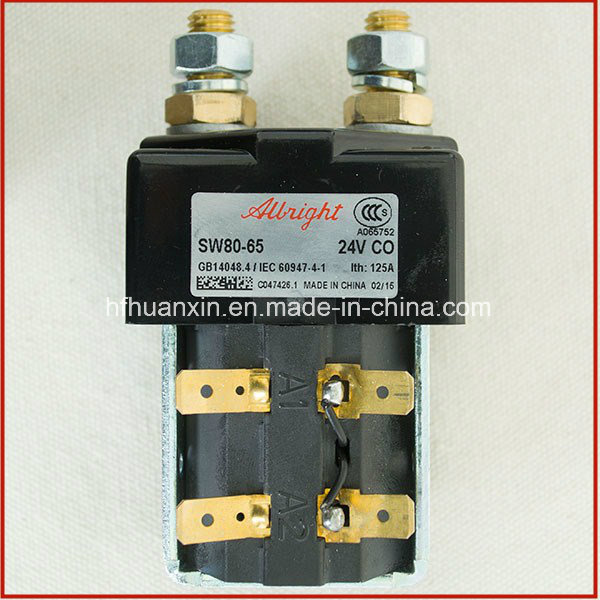

Model: SW80-65
Contactor Type: Single Pole Single Throw, SPST
Main Circuit Current Rating: 125A
Main Circuit Voltage Rating: 24V DC
Weight: about 0.35kg

Notice: SW80-65 is a Single Pole Single Throw contactor, wildly applied in electric vehicles' (typical application: pallet truck & stacker) controlling system.

Overview

The SW80 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks, and telecom and power distribution applications. Developed for both interrupted and uninterrupted loads, the SW80 is suitable for switching Resistive, Capacitive and Inductive loads.

Interrupted current: opening and closing on load with frequent switching (results in increased contact resistance)
Uninterrupted current: no or infrequent load switching requirements (maintains a lower contact resistance)

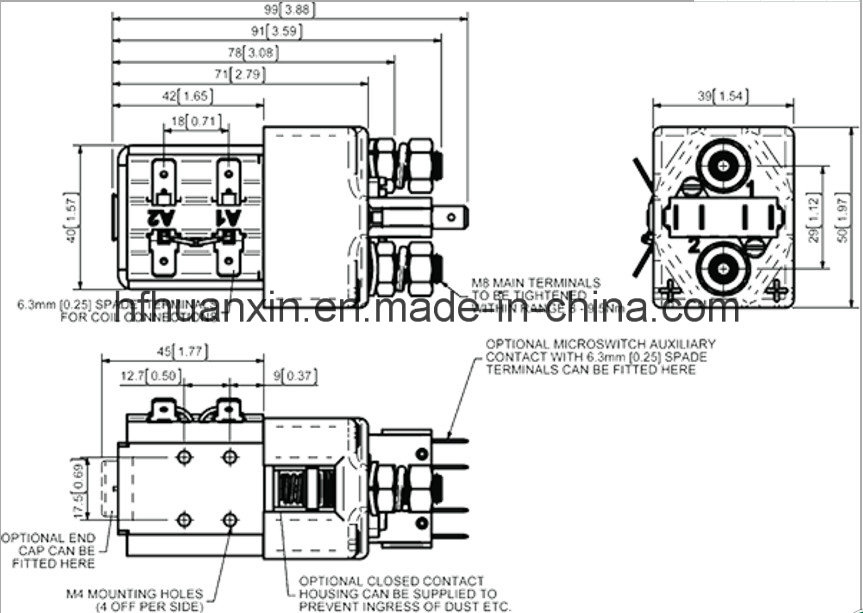

The SW80 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW80 has M8 stud main terminals and 6.3mm spade coil connections. Mounting is via M4 tapped holes or mounting brackets, either supplied fitted, or as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.

Our Service

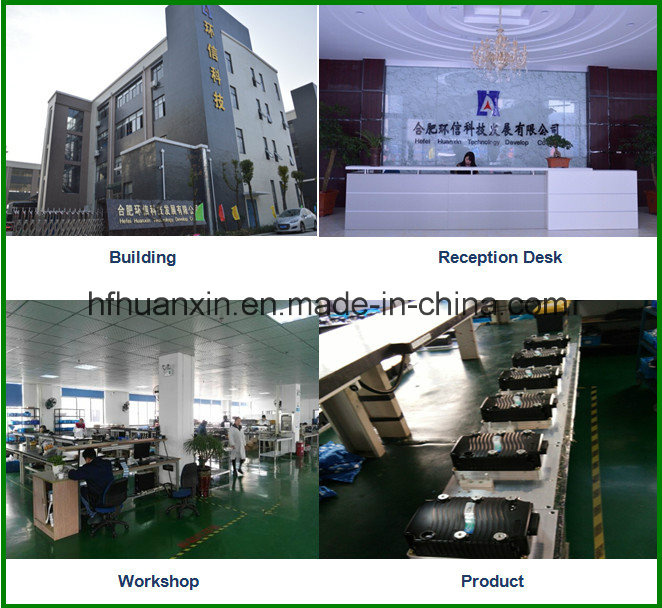

Hefei Huanxin Technology Development Co., Ltd. has been devoting ourselves to developing and manufacturing and other since 2004. We are located in Hefei, Anhui Province, with convenient transportation access. We employ over 101 - 200 People staff members. We have achieved great improvement since our company was founded in 2004. We abide by the motto of Firstclass quality, Reasonable price, Best service and Professional product support.

Packing & Delivery

Package:Normally we use the standard exporting packaging. We also can according to clients' request .

1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperating.
2. By Air: Delivery from the Shanghai airport to customer's destination city air port.
3. By Sea: Delivery from the Shanghai sea port .
