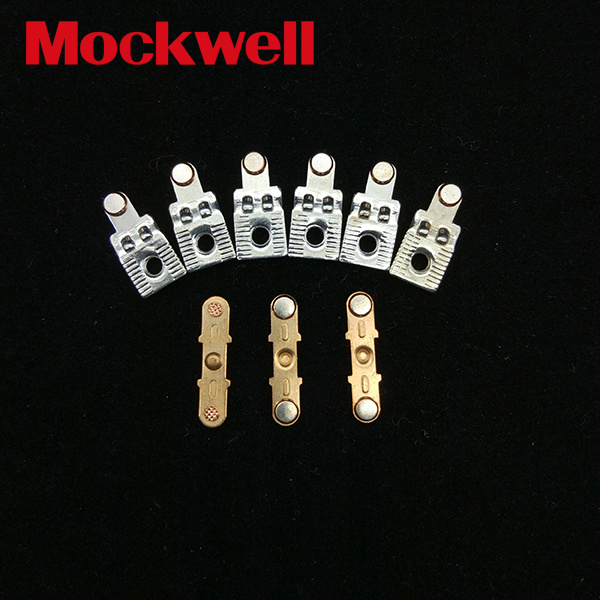

Contacts for LC1-D09 (CJX2-09)

Name: Contacts for LC1-D09 (CJX2-09)
Brand: all-electronics-online.com
SKU: 820644145
Availability: InStock
Rating: 4.3 (146 reviews)

Price:	US $ 0.30-0.40/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Material:	Silver

Product Description

The MC1 series contactor is used in reote motor(<45kW) control application.
Rating up to 690V, 95A(AC3).(09A, 12A, 18A, 25A, 32A, 40A, 50A, 65A, 80A, 95A)
Standard: IEC/EN60947-4-1
Ambient temp: -5-40 C
Coil voltage(24V, 36V, 48V, 110V, 220V, 230V, 380V, 415V)

Type		MC-D09	MC-D12	MC-D18	MC-D25	MC-D32	MC-D40	MC-D50	MC-D65	MC-D80	MC-D95
Rated working current (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated working current (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
AC3 capacity of phase 3 squirrel-cage motor AC3 (KW)	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/440V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	440V	4	5.5	9	11	15	22	30	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	45
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC4×104	20	20-15	20-7	15-7	15-7	10-7	7	7	7-5	7-5
Electrical life	AC4×10³	2	2	2	2	2	2	2	2	1.6	1.6
Mechanical		20	20	20	20	20	20	20	20	10	10
Number of the contact		3P+NO				3P+NC+NO
Number of the contact		3P+NC				3P+NC+NO
