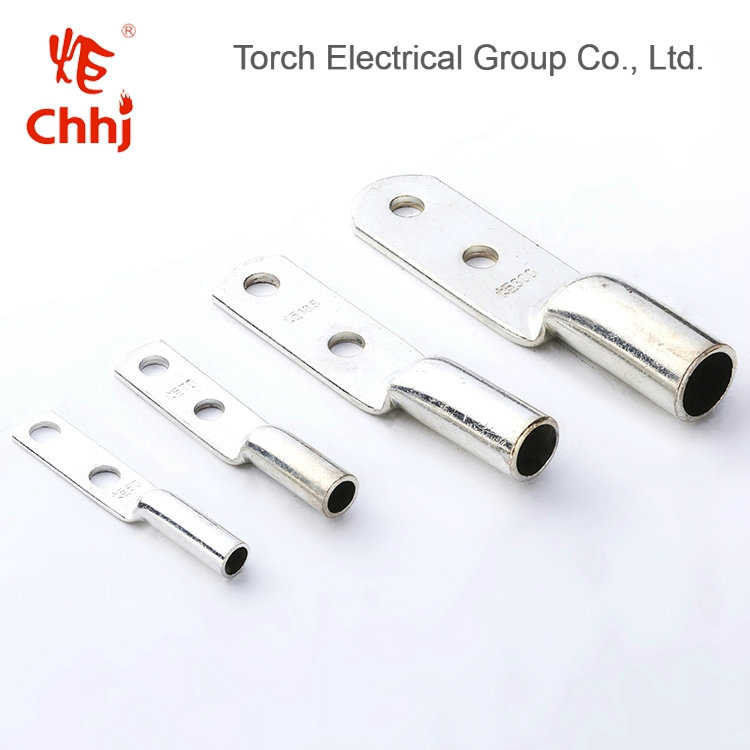

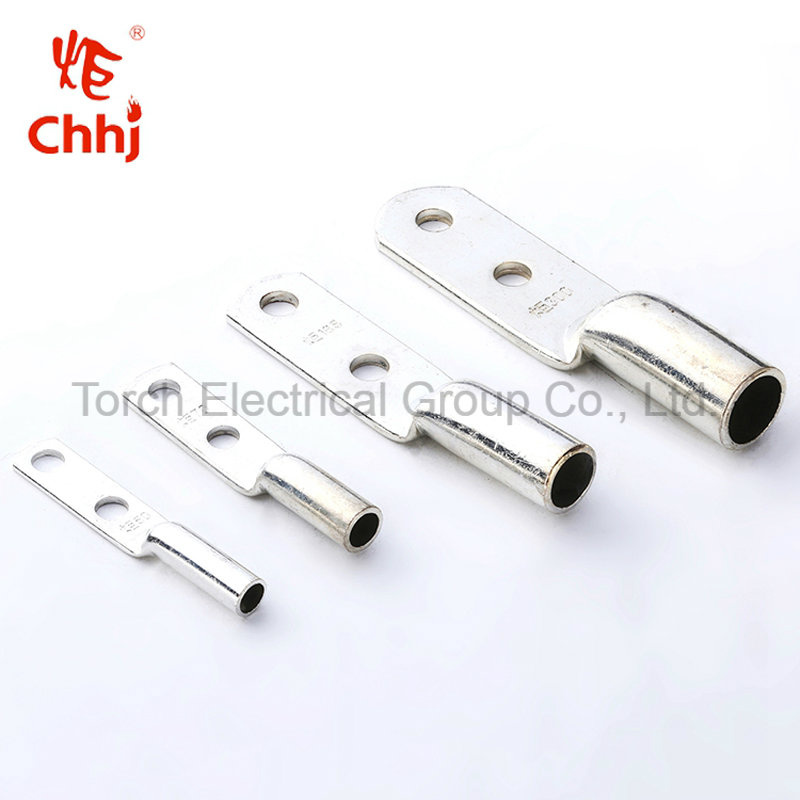

Copper Cable Lug, Long Barrel-Dt (G)
| Price: |
US $ 0.1/Piece |
| Trade Terms: |
FOB |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
DTG Tin Plated Heavy Duty Copper Lug Crimp Terminal Connector In Good Quality
These terminals are designed for high voltage applications up to 33kv.
They are manufactured from high purity copper tube, annealed & tin plated.
The extended barrel enhances both electrical and mechanical performance.
The absence of an inspection hole to prevent moisture entry into the crimped joint makes these terminals suitable for outdoor applications.
| DT(G) Copper Cable Lugs(tubular) |
| |
| Cat.No. | Dimensions(mm) |
| ø | d | D | L |
| DT(G)-10 | 8 | 5 | 8 | 48 |
| DT(G)-16 | 8 | 6 | 9 | 54 |
| DT(G)-25 | 8 | 7 | 10 | 62 |
| DT(G)-35 | 8 | 8 | 11 | 65 |
| DT(G)-50 | 10.5 | 10 | 13 | 70 |
| DT(G)-70 | 12.5 | 12 | 16 | 81 |
| DT(G)-95 | 12.5 | 14 | 18 | 86 |
| DT(G)-120 | 12.5 | 15 | 19 | 95 |
| DT(G)-150 | 14.5 | 17 | 22 | 100 |
| DT(G)-185 | 16.5 | 19 | 24 | 110 |
| DT(G)-240 | 16.5 | 21 | 26 | 121 |
| DT(G)-300 | 16.5 | 23 | 30 | 131 |
| DT(G)-400 | 18.5 | 26 | 34 | 145 |
| DT(G)-500 | 21 | 30 | 38 | 168 |
| DT(G)-630 | 21 | 35 | 45 | 200 |
| DT(G)-800 | 22.5 | 40 | 50 | 225 |
| DT(G)-1000 | 22.5 | 48 | 60 | 250 |
| Remark: | | | | *(Standard type) |
| Prod Model: |
DT(G) |
| Material: |
Copper |
| Application: |
Transmission of Electrical Signals |
| Type: |
Cable Lug |
| Interface Type: |
Crimping Type |
| Certification: |
ISO9001 |
| Brand: |
Chhj |
Fire, the initial of light; The soul of torch. --- The Torch Corporation
The Yueqing Torch Hardware Factory opened in 1987. Our corporation altered into Zhejiang Torch Electric Power Fittings Co., Ltd in 1992 and it initially turned out the modern enterprise shape. Moreover, the torch brand began to make a figure in the market. Our corporation altered into Torch Electric Power Fittings Co., Ltd and promoted to no regional-scale enterprise in April, 2009. Our corporation altered into Torch Electric Co., Ltd and promoted to no regional and collective corporation in December, 2012.
Our corporation had 108, 800 square meter factories with registered capital 111 million RMB and fixed capital 350 million RMB. Its annual production capability had amounted to 600 million RMB.
Till now, through decades of unremitting hard work and integrity, our corporation has grown into the first domestic modern enterprise with leading products such as electric power fittings, cable accessories, composite insulators, surge arresters, high-voltage electrical apparatus, etc. Besides, our corporation provides professional solution programs for transmission and distribution lines.
Our corporation successively gained the honor of "National High and New Technology Enterprise", "Supplier of Qualified Bid of National Grid Companies", "Zhejiang Double Good Enterprise", "Zhejiang Famous Brand", " Wenzhou Trustworthy Products", etc. Its torch brand product is awarded as "Zhejiang Outstanding Science and Technology Products".
Our products are provided to national grid companies, south grid companies and electric companies in many provinces in a long time period with high praise. Marketing network covers the whole country with regions over 600 provincial, municipal and county level distribution companies and products are exported to America, Southeast Asia, European countries and other more than 20 countries.
Our corporation adheres to its industry and pursues development and its transformation and upgrading boost span. "Torch" comprehensively carries out"5S" site managing model and guides into advanced "ERP" managing systems while establishing strict ISO9001 quality managing systems, ISO-14001 environment protection systems and OHSAS18001 professional health and safety managing systems. Our corporation has implemented advanced lean production strategies and successively introduced large quantities of industry-leading production and inspection equipments, such as 1000-ton friction screw presses, 1200-ton profile extrusion machines, inspection equipment spectrum analyzer imported from Germany, large-tonnage crimping machines with ultrasound monitoring systems, etc. Moreover, our corporation has modern electric power fittings, cable accessories, insulators, zinc oxide arrester production workshops, world-leading dust-free assembly workshops, inspection centers, technology research and development centers, etc. Meanwhile, in accordance with strict and concrete quality control and production inspection systems, every procedure of product design, purchase, manufacture, storage has its strict quality control and concrete measurement and inspection to ensure the quality stability.
Torch is stick to the road of science and technology industry and established
Our group set up the research project of a complete set of fittings for 500kV electric transmission line in 2011 in order to meet the demand of ultra-high voltage transmission line. And products are inspected and approved for volume production by China Electric Power Enterprise League in 2012, and then our group entered into the area of development and production of complete sets of fittings for ultra-high voltage transmission line.
Since every kind of product has passed the checkout of domestic authority inspection departments. It has "Production Certificate" issued by National Bureau of Quality Inspection. And all series of products are underwritten by PICC.
