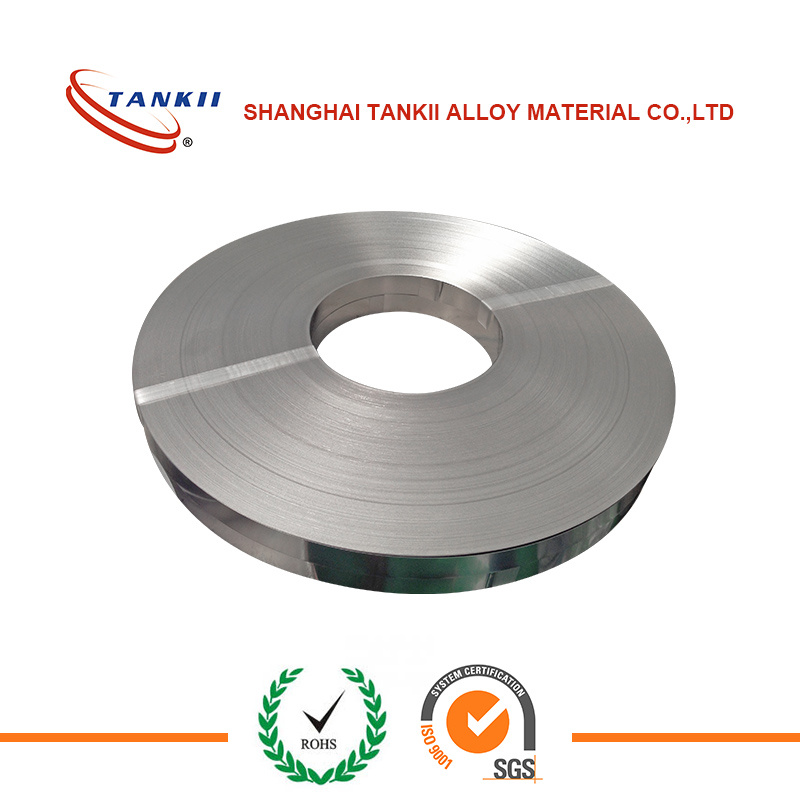

Copper Nickel Electric Heating Wire/StripCUNi14 (NC020)

Copper Nickel Electric Heating Wire/StripCUNi14 (NC020)
Price: US $ 18-24kg
Min Order: 20kg
Pay Type: L/C,T/T,Western Union,Paypal
Copper Nickel Electric Heating Wire/StripCUNi14 (NC020)

The company also provides processing: cuni1 cuni2 cuni6 cuni8 cuni10 cuni19 cuni23 cuni30 cuni34 cuni44 cumn3 and constantan 6 j40 6j11
Copper and nickel and purpose: according to the characteristics of low resistance alloy has good corrosion resistance, good welding performance and machining performance, wide application and thermal overload relays, electric heating element in the low voltage circuit breaker and other low voltage apparatus.
Strip specification range
Thickness: 0.01-7 (mm) width: 5-300 (mm), wire diameter 0.05-7 (mm)
Chemical compositionNiMnCu
content140.585.5
The highest use temperature (300 ºC)
Resistivity (20 ºC) mu Ω/m, 0.2 + / - 5%
Temperature coefficient of resistance (a10-6 / %) < 30
Tensile strength (Mpa) >= 310
For copper electromotive force V / ºC - 28
Melting point (1115 ºC)







Prod Model: CuNi14
Density: 8.9G/M³
Elongation: 25%
Sample: free
Standard: ASTM/GB/JIS/DIN/EN
Shanghai Tankii Alloy Material Co., Ltd. Focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy, thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate. We've already got ISO9001 quality system certificate and approval of ISO14001 environmental protection system. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating etc. We also proudly have independent R&D capacity.

Shanghai Tankii Alloy Material Co., Ltd has accumulated lots of experiences over 35 years in this field. During these years, more than 60 management elites and high science and technology talents were employed. They participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome alloy, precision alloy, thermocouple wire, fecral alloy, copper nickel alloy, thermal spray alloy have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnership with our customers. Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and Customer Service.
