Copper Rubber Insulated 35mm2 Flexible Welding Wire
| Price: |
US $ 0.35-3.5/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
Welding Wire |
| Rated Voltage: |
250/440V ; 300/500V ; 450/750V |
| Cross Section(mm2): |
10mm2~400mm2 |
| Color: |
Red/White/Blue/Black/Green/Yellow(Optional) |
| Latest Export To: |
Denmark, Greece, Malaysia |
| OEM: |
Available |
| Origi: |
Shanghai, China |
| Sample: |
Free Sample Available |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Certification: |
VDE |
| Application: |

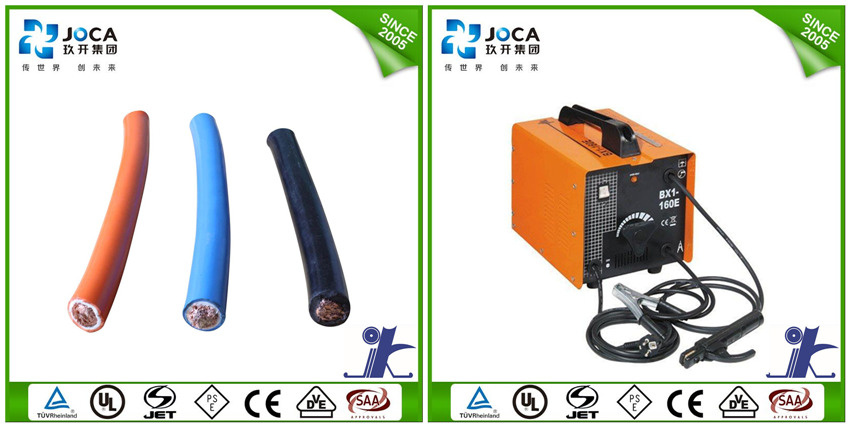

Welding Machine |
| Sheath Material: |
Rubber/PVC |
| Insulation Material: |
Rubber/PVC |
| Range Of Application: |
Welding Machine or Other Moveable Equipment |
| Brand: |
Jiukai |
Product Description

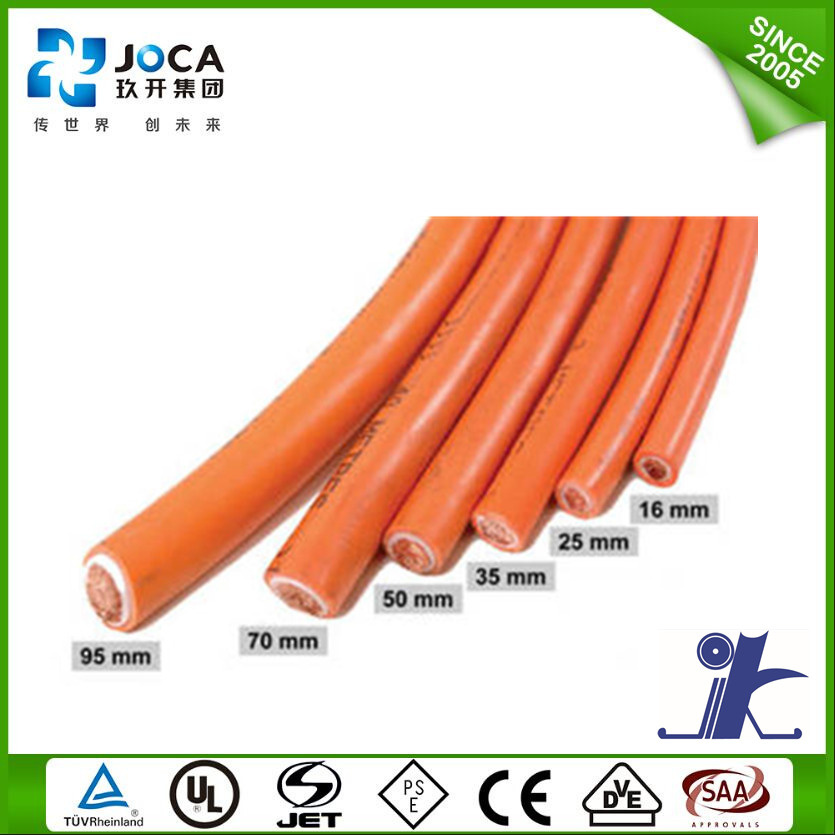

Copper Rubber Insulated 35mm2 Flexible Welding Wire
Product Description & Parameter[Application]
1) These cables are used in electrical equipment under low stress in dry or damp indoor or outdoor environments.
2)They are commonly used as connection cables in horticulture or workshop tools that might be subject to or in contact with oils and fats.Also suitable for fixed installation in furniture,decorative coverings,wall partitions and prefabricated building parts. [Techniuque Specification](1).Standard:
GB/t5013.6 IEC2045-81
(2).Construction:
1).Conductor:
A)Annealed class 5 flexible copper wire
B)Overall diameter of single wire: 0.2mm2
C)NO. of copper wire: 513
2).Insulation
A)Neoprene
B)Thickness of insulation:2.0mm
C)Heat resistant,Oil resistant and flame retardant
(3).Technical Data:
1).Max.operating temperature:
A)+75°C (Used as power transmission)
B)+105°C(Used as welding cable)
2).Rated voltage:
A)600V (Used as power transmission)
B)220V (Used as welding cable)
3).Other data:
A)Overall diameter: 8.8~11.0mm
B)Approx weight: 230Kg/Km
C)Conductor structure: 513/0.2

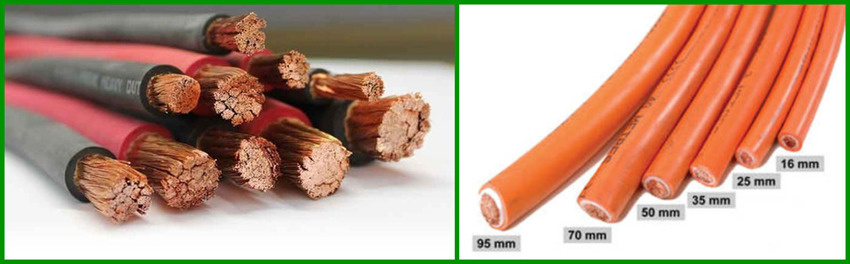

[Dimensions & Parameters]Normal area
(mm2) | Structure
(mm) | Insulation thickness
(mm) | Approx overall dia.
(mm) |
| 10 | 322/02 | 2.0 | 8.10 |
| 16 | 513/0.2 | 2.0 | 10.30 |
| 25 | 798/0.2 | 2.0 | 11.75 |
| 35 | 1121/0.2 | 2.0 | 13.00 |
| 50 | 1596/0.2 | 2.2 | 15.00 |
| 70 | 2214/0.2 | 2.4 | 17.00 |
| 95 | 2997/0.2 | 2.6 | 19.50 |
| 120 | 1702/0.3 | 2.8 | 21.00 |
| 150 | 2135/0.3 | 3.0 | 23.50 |
| 185 | 1443/0.4 | 3.2 | 25.50 |
| 240 | 1912/0.4 | 3.4 | 28.50 |
Packaging & Shipping1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's requirement;
2) Inner Packing: Wooden reel, Plastic reel, and Paper reel available;
3) Outer Packing: Carton Box, Pull out Box, Pallet available;
4) Other packing available according to client's requirement. CertificationCE, ISO, RoHS, CCC Certification etc.
