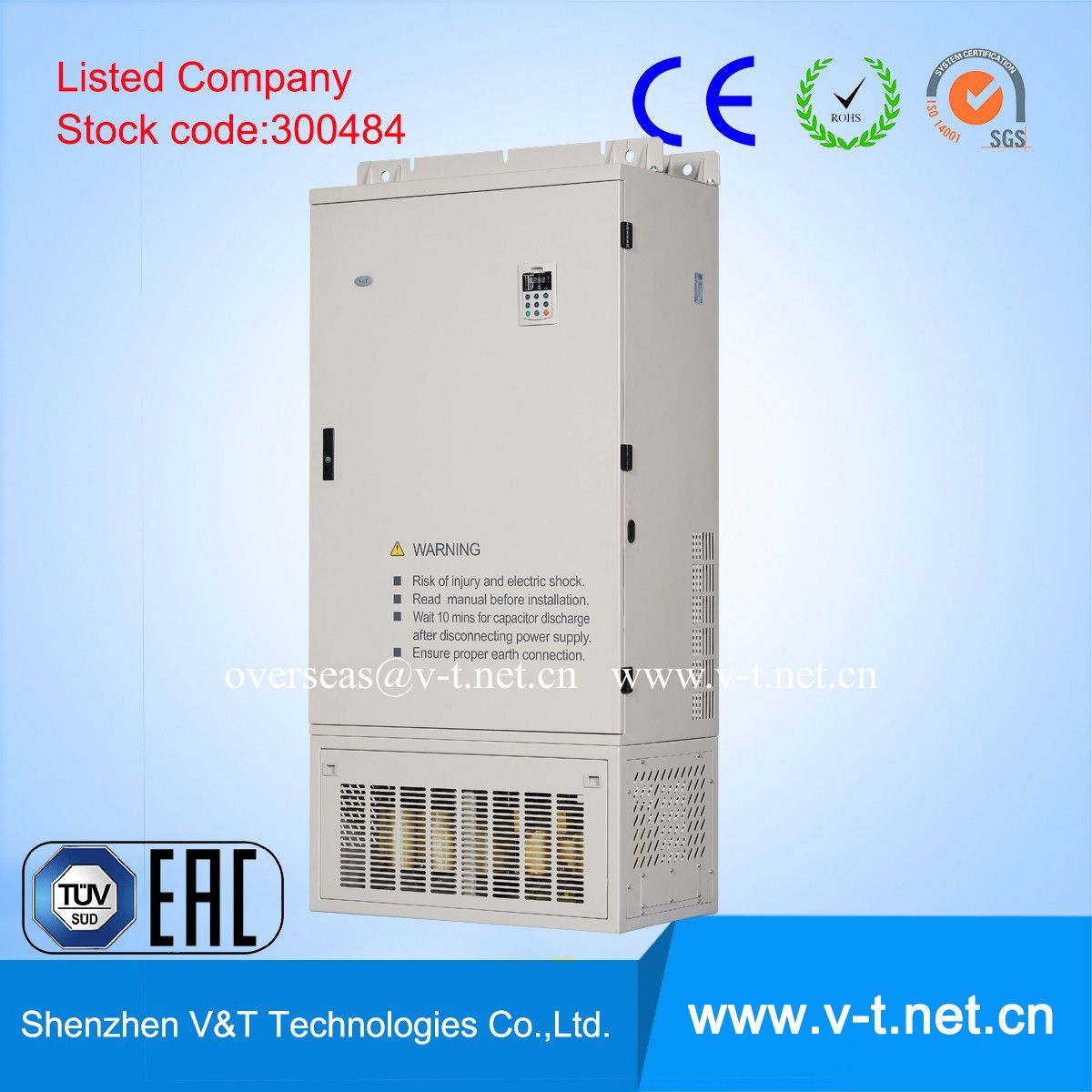

Cost Effective Energy Saving Close Loop Control AC Drive /Frequency Inverter 0.4 to 3000kw- HD
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
V5-H Series high performance vector control inverterFor over two decades, various industry sectors have been reaping the benefits of V&T's cost-effective, performance-oriented AC Drive solutions. V&T's grasp of specific needs of each industry enables it to offer application-specific solutions for various industries-such as processing ,textile, plastic, ceramic ,pharmaceutical, elevator, oil& gas, power, cement and material-handling.Main Features1. Range:0.4 kW to 450kW2. V/F Sensorless Vector Control, Slip Compensation3. Staring Torque at 180% at 0.25 Hz for Sensorless Control4. Component Life Monitor5. Peer to Peer Communication to share I/Os6. Built-in PLC logic7. Multi Keypad8. Stores last 5 faults9. Built-in RS485 Modbus RTU CommunicationAbout the Product V5-H series vector control inverter adds a new dimension to V&T's AC drive solutions. Built to V&T's stringent quality standards, the V5-H is tested and certified to meet global benchmarks, giving you the assurance of total reliability. The V5-H is built to deliver powerful performance. It produces a starting torque of 180% at 0.5Hz, which provides better control at low-speed. Its compact size enables panel-size reduction, hence helps in space-efficient design.Applications1. Energy-saving central air conditioning;
2. Plastic &Textile Machinery;
3. Energy-saving air compressor; 4. Printing;
5. Fan & Pump / HVAC/AHU/Blowers machine /ID/FD Fan6. Crane Control; 7. Food & Packaging Industry; 8. AHU Control.
| Prod Model: |
V&T V5-H |
| Application: |
High Frequency Converter Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
Vector Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Voltage |
| Brand: |
V&T |
Shenzhen V&T Technologies Co., Ltd. Was certificated as a "National Hi-tech and Double-Software Enterprise", which has fully intellectual property rights and devotes to the R&D, manufacture, sales and technical service of Inverter, Servo Drive, Electric Vehicle Motor Controller, etc. V&T has won the "Technical Innovation" prize awarded by the Inverter Industry Association, "The Most Competitive Brands" prize awarded by China Electrical Association, "2012 Electric Vehicle Excellent Technology" prize respectively awarded by China Electro-technical Society (CES), the Specialized Committee of Electric Vehicles, the Automotive Engineering Society of China, and the Branch Association of Electric Vehicles. V&T has been ranked as one of the "Top 10 Chinese Inverter Enterprises". V&T successfully listed on the Stock Exchange of China in 2016 (stock code: 300484).
In regard to core and mainstream motor control technologies, Shenzhen V&T Technologies Co., Ltd. Has mastered both advanced "Vector Control "and "Torque Control" technology so far. Through continuous technological innovation, international technical exchange and cooperation with other countries, V&T has completely grasped the key control technique, also possesses the capacity of industrialization design and manufacturing. Company has developed and reserved many product series. The product voltage grade mainly contains 200V, 400V, 690V, 1140V, and the power grade varies from 0.4kW to 3000kW, which could meet various application demands for high, medium and low-end market.
Under the premise of meeting international standards and satisfying different industries' application requirements, we further strengthened the product reliability and environment adaptability to suit harsh and extreme environments. Customized product and industrialized design can better meet medium and high-end application demands. The products have been widely used in electric vehicles, metallurgy, crane, oil, chemicals, machine tools, metal processing, building materials, stone, wood processing, ceramics, plastics, air compressor, washing machine, water supply, air conditioning, municipal engineering, textile, printing, mining, solar pump and other industries.
