| Prod Model: |
FD-counter sink 001 |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
HB |
| Dielectric: |
FR-4 |
| Material: |
Aluminum |
Product Description
Product Description

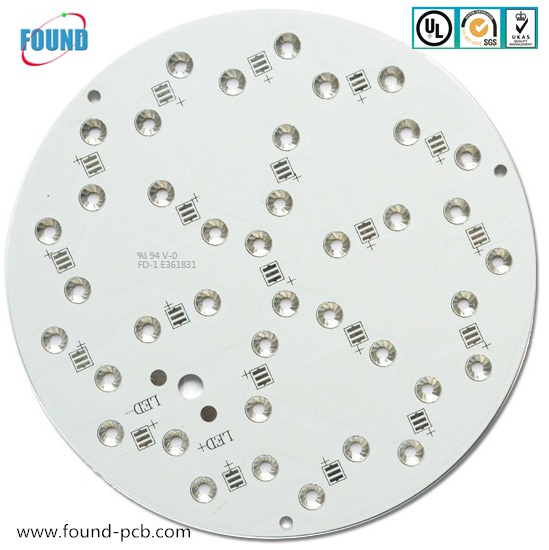

White Soder 1oz 1.6mm LED PCB
1. Product Description
Metal core pcb for led lighting
1.Board thickness: 1.6mm
2.Material: Aluminium
3.Surface treatment: HASL
4.Copper Thickness:1oz
Our PCB board manufacture and PCB assembly service:
1. PCB board file with parts list provided by customers
2. PCB board made, circuit board parts purchased by us
3. High Quality,competitive Price & Best Service
4.100% E-tested PCB
Technical and Capability. Shenzhen Factory I (Focus on Prototyping, Quick turn, Medium batch)| Item | Capability |
| Raw material | Aluminum base,Copper base |
| Layer | 1-2 Layer |
| Min.Line width/space | 4mil/4mil(0.1mm/0.1mm) |
| Min.hole size | 12mil(0.3mm) |
| Max.Board size | 1200mm*560mm(47in*22in) |
| Finished board thickness | 0.3-5mm |
| Copper foil thickness | 35um-210um(1OZ-6OZ) |
| Remain thicness tolerance | +/-0.1mm |
| Hole position tolerace | +/-0.05mm |
| Routing outline tolerance | +/-0.15mm |
| Punching outline tolerance | +/-0.1mm |
| Surface finished | Lead free HASL,Immersion Gold/Silver,OSP etc |
| MC PCB production capability | 10,000 s.q.m/month |
FAQ
Q1:What's your Aluminum board Thermal Conductivity?
A: Normally 0.8-3W/m.K. If you have special demands please feel free contact us
Q2:Is my PCB file safe if I send it to you for manufacturing?
A: We respect customer's design authority and will never manufacture PCB for someone else without your permission. NDA is acceptable.
Q3:What is your testing policy and how you control the quality?
A: For sample, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by fixture, this will be more faster. Due to there's many steps to PCB production, we usually do inspection after every step.
Q4: What's your shipping way ?
A: 1. We have our own forwarder to ship goods by DHL, UPS, FEDEX, TNT,EMS.
2. If you have your own forwarder, we can cooperate with them.
Q5: What is your certificate?
A: ISO9001:2008, ISO14001: 2004, UL, SGS report.
Q6: What files should we offer?
A: If only need PCB, please provide Gerber File and manufacturing specifications; If need PCBA,Please provide Gerber File, Manufacturing specification, BOM list and Pick & Place/XY file.
Q7: Can I get a sample?
A: Yes, It's reasonable to get a sample to test our quality at first.
Q8: Does FOUND bevel gold fingers?
A: Yes. A standard 45-degree bevel, also bevel at 15 or 30 degrees upon request. For multi-layer board, please ensure there is adequate back set for the bevels.
Q9: Why choose us?
A: With FOUND, customers significantly and effectively reduce their global procurement costs. Behind each service provided by FOUND, is hidden a cost saving for customers.
. We have two shop together, one is for prototype, quick turn, small volume making. The other is for mass production also for HDI board, with highly skilled professional employees, for high quality products with competitive price and on-time delivery.
. We provide very professional sales, technical and logistic supports, on a world-wide basis.hours complaint feedback

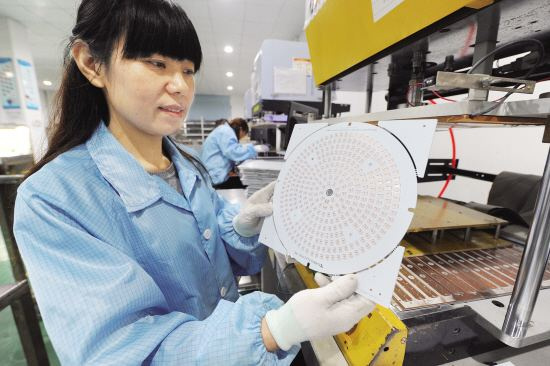

Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.
Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.
A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.
We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...
With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).
We welcome the every opportunity to working for you. We have the good name in the PCB market.
