Crane Geared Motor with Buffer

Name: Crane Geared Motor with Buffer
Brand: all-electronics-online.com
SKU: 781412385
Availability: InStock
Rating: 4.6 (48 reviews)

Price:	US $ 501/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KD-500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Work Duty:	M4
IP Class:	IP44
Power:	2.2kw
Voltage:	200V--600V
Weights:	90kgs
Motor Reduction Ratio:	16:1
Number Of Stator:	Three-Phase
Function:	Driving
Speed:	21m/Min
Brand:	Elk

Product Description

ELK Crane geared motor with Buffer = Crane Motor 0.4Kw =Lifting Motor = Hoist Motor:

End Truck Motor ;End Carriage Motor Factory : Reducer Crane ;Hoist Reducer
01. ELK Crane Geared Motor with Buffer Features :
Quality Warranty = 2 Years

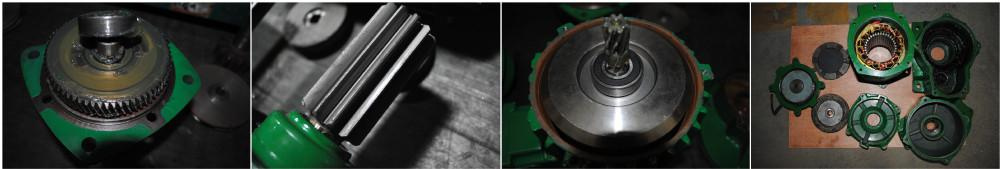

Detail Of Product

Gearbox	cast iron(FC25) material, high tension, high precision.
Gear	Ni-Cr-Mo alloy steel(SNCM220&SCM415) with heat treatment of vacuum carbonitriding.
Shaft	alignment and grinding, high accurate, high abrasion and strike resistance, up 5 times safety factor,long service life.
Buffer	adopt soft starting and flywheel, make start and brake stable, smooth and not shake, and ensure motor high inertia movement.
Motor	easy heat dissipation, good high voltage resistance, low noise, high performance, high torque, low current, small size, strong output power, high operation frequency.
Electromagnetic brake	Strong braking force, bolt control braking force directly, braking pad high wear resistance, ensures it strong stability, long service life.

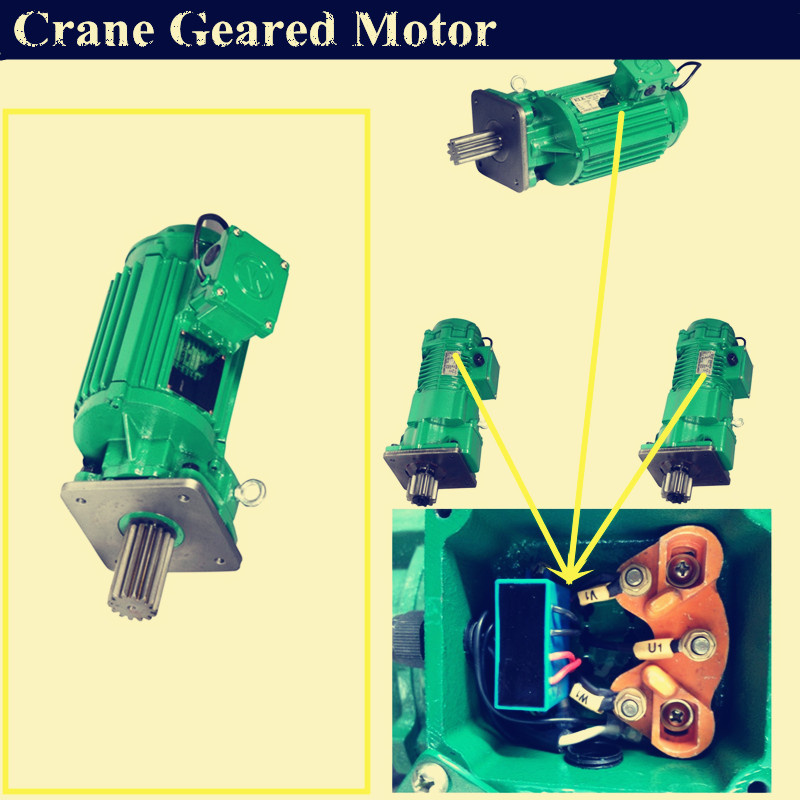

Geared Motor features

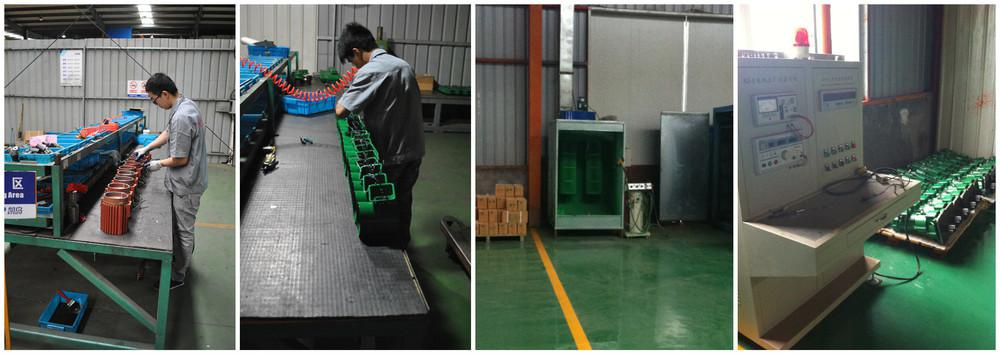

Our Factory

02. This Type Crane Geared Motor with Buffer Advantages Notes :
(1).Small Volume with Compact Unitive Whole Part ;
(2).Sensitive Steady Electromagnetic Braking System;
(3).Super Quiet Voice & Soft Start and Soft Stop ;
(4).Lowest Impact ;
(5).High Torque/ Output Power Stronger /Easy Heat Dissipation;
(6).Highest Cost Performance & Lowest Repair Rate .
03. ELK Crane geared motor with Buffer Characters :
Motor, Crane Motor,the motor,motor for crane,crane geared motor,reduction motor, geared reducer,reduction gears,geared hub motor,geared motor india ,ac geared motor,dc geared motor, electric motor, 3phase induction motor , end truck motor, end carriage motor .
04.ELK Crane geared motor with Buffer Power :
0.25Kw Crane Geared Motor,0.4Kw Crane Geared Motor, 0.75Kw Crane Geared Motor,
1.1Kw Crane Geared Motor,1.5Kw Crane Geared Motor,2.2Kw Crane Geared Motor,3.75Kw Crane Geared Motor, Buffer Motor, Double Speeds Reducer, Dual Speeds Geared Motor .

(5) ELK Crane Motor Technical Parameters :

1. ELK Crane Geared Motor with Buffer -- Technical Parameters :
Model	With Buffer	Power(Kw)	Poles	Module	Reduction Ratio	Rotation Speed(50Hz)	Voltage	Work Class	Weight (Kgs)	Volume (m3)

KD-030	NO	0.25Kw	4P	M3/M3.5/M4	10:1	133 r/min	200V--600V/3Phase/ 50Hz	M4	14Kg	0.011
	NO	0.25Kw	6P			90 r/min		M4
	NO	0.4Kw	4P			133 r/min		M4	26Kg	0.022
KD-050	Yes	0.4Kw	4P	M3/M4/M5	8.5:1	176 r/min		M4
	Yes	0.37Kw	6P			112 r/min		M4	31Kg	0.025
KD-100	Yes	0.75Kw	4P	M3/M3.5/M4/M5	7.7:1	189 r/min		M4
	Yes	0.6Kw	6P			123 r/min		M4	33Kg	0.025
	Yes	0.4/0.13Kw	4/12P			189/62 r/min		M4
KD-150	Yes	1.1Kw	4P	M4/M5/M3.5	13:1	112 r/min		M4	47Kg	0.032
	Yes	0.75Kw	6P			67 r/min		M4
	Yes	0.6/0.2Kw	4/12P			112/33 r/min		M4
KD-150A	Yes	1.1Kw	4P	M3/M3.5/M4/M5	7.7:1	189 r/min		M4	33Kg	0.025
	Yes	0.75Kw	6P			123 r/min		M4
	Yes	0.6/0.2Kw	4/12P			189/62 r/min		M4
KD-200	Yes	1.5Kw	4P	M3.5/M4/M5/M6	16:1	92 r/min		M4	71Kg	0.06
	Yes	1.1Kw	4P			92 r/min		M4
	Yes	1.1Kw	6P			61 r/min		M4
	Yes	0.75/0.25Kw	4/12P			92/30 r/min		M4
KD-300	Yes	2.2Kw	4P	M4/M5/ M6	16:1	92 r/min		M4	91Kg	0.07
	Yes	1.5Kw	6P			61 r/min		M4
	Yes	1.5/0.5Kw	4/12P			92/31 r/min		M4
KD-500	Yes	3.75Kw	4P	M5/M6/ M7	16:1	92 r/min		M4	96Kg	0.07
	Yes	3.75Kw	6P			61 r/min		M4
	Yes	2.2Kw	6P			61 r/min		M4
	Yes	2.2/0.75Kw	4/12P			92/30 r/min		M4

(6).: ELK Crane Motor with Buffer Advantages:

1. ELK Crane Geared Motor with Buffer Advantages :
..Small Volume : Reducer and Buffer Block and Motor(3Parts) are combined to be one whole Part.
..Safety and Reliability :Electromagnetic Brake with DC current ;
..Lower Noise :Helical tooth transmission ;
..Lower Impact : With Buffer Block , Soft Start and Soft Stop .
..Long Service Time : With Highly Durable brake block ;
..High torque , output power stronger ; Easy heat dissipation .

(7).Our Services :
-- After - Sale Service :
01.--24 Hours Technical Support by E-mail ;
02.--Calling Service ;
03.--By Operating Manual , Photos, Detailed Videos etc. Ways ;

Introduction

Factory Build Time: On March 23rd, 2010 Year;

Factory Add.: Zhejiang Kaidao Hoisting Machinery Co., Ltd. is located in Jiaojiang, Taizhou, Zhejiang Province, 3km away from Taizhou Luqiao Airport and near Ningbo and Shanghai Ports.

Products Scope: Kaidao is professional manufacturer which is specialized in various 3Phase--1Phase--Electric Chain Hoist from 0.5Ton to 60Ton, Electric Wire Rope Hoist (HKDS&HKDD)(CD1&MD1), Crane Geared Motor with Buffer from 0.25Kw to 3.75Kw, Bridge Overhead Crane and a series of relevant hoisting products, by adopting most advanced design, research and development technology of world hoisting industry.

Products Advantages: Lower Noise, Light Weights, Compact Structure, High Intelligentized Production Technology, High Safety, Lowest Repair Rate, Low Cost & Best Quality, Excellent Effective Service.

Application Field: Material handling, machinery processing, mould research, industry automatic Lines, assembly lines, wind power generation, metallurgy&casting workshop for all lifting operations.

Export License: Kaidao has own independent export license, all our products are with CE, ISO9001-2008, SGS international certificates approval. At present, we have already exported our hoists, motors, crane all over the world more than 84 countries, such as South Europe, North & South America, Middle East, Africa, Asia and Oceania.

High Quality Control System: Excellent Quality is a persistent and important objective for Our company; Every product is tested auto-testing-center and also carefully inspected before packing and shipping.

Business Philosophy: Kaidao adheres to principle of honesty and mutual benefit, insists in innovation and profession, aiming at quality first, service best to meet a win-win situation.

Social Mission: Care for clients, Care for workers; Care for environment, Repay society.

Prospect: Kaidao has stepped into modernized hoisting production industry, ranks a star enterprise with powerful competitive strength in hoisting business, hoping to create a glorious future together with friends at home and abroad.

Kaidao Company is aiming to be Biggest & Most Excellent Manufacturer of Hoists--Cranes--Motors in China.
