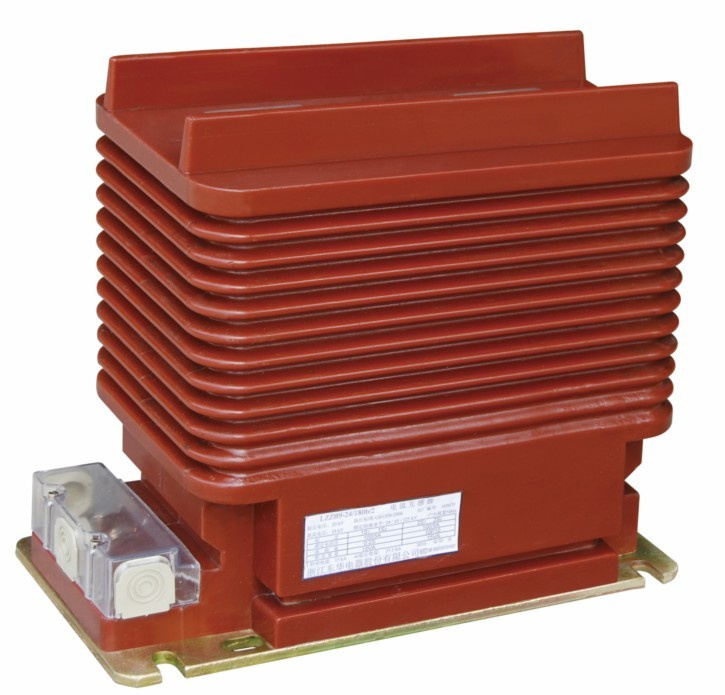

CT Lzzb9-24/180b/2 Type Current Transformer

Name: CT Lzzb9-24/180b/2 Type Current Transformer
Brand: all-electronics-online.com
SKU: 663812135
Availability: InStock
Rating: 4.4 (136 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

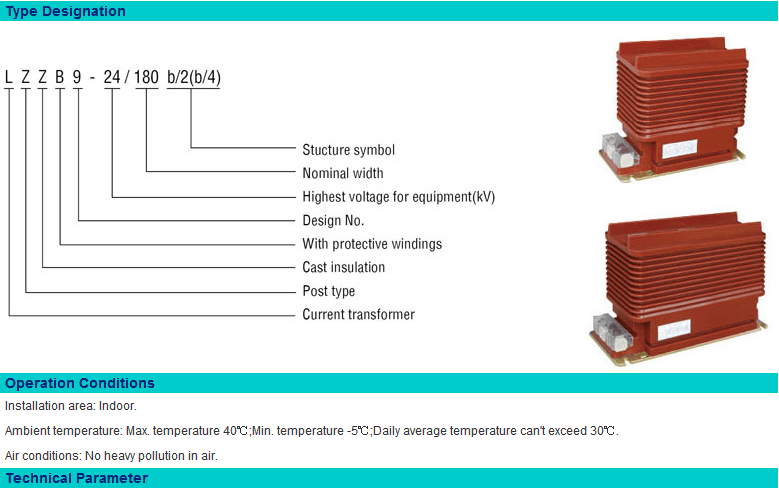

LZZB9-24/180b/2(4) type current transformer
Applications
LZZBJ9-24/180b/2(4) current transformer is suitable for power measurement,current monitoring and relay protection in 50HZ or 60HZ(rated frequency),10kv(rated voltage) power system.
Applicable Standard:IEC60044-1,GB 1208

rated secondary current: 5A or 1A
isulation level: 24/65/125KV

Structure and Feature
current transformer have the whole-sealed structure with epoxty resin as it's main insulation.it's core adopts the crystallitic alloy or excellent silicon steel sheets to enwind becoming annular,then secondary leads are enwinded on it evenly.Primay conducts are winded by insulation belt to avoid short circuit between conducts.There are earth bolts and holes suitable for mounting on the bottom of the product suitable the mounting.
Information required for placing order
model
rated current ratio A.
combined accuracy classes and rated output VA.
altitude m

outline,dimension and else information about the product,you can visit the website www.dhecn.com to know.If you find the suitable ,you can contact with us.Looking forward to hear form you soon.Hope we can have a mutual benifical cooperation in the near future.

Prod Model:	LZZB9-24/180B/2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type Of Current Transformer:	Indoor Use,Epoxy Resin,Sealed Structure
Application:	Measurement and Protection
Type:	Current Transformer
Phase:	Single
Usage:	Measurement and Protection
