| Prod Model: |
GDHG-106B |
| Power Supply: |
AC220V±10%, 50Hz |
| Output Current: |
0-1000A |
| Accuracy Of Excitation: |
≤0.5%(0.2%*The Reading+0.3%*Range) |
| Accuracy Of Angular Error: |
4min |
| Accuracy Of Ratio Error: |
0.05% |
| CT Turn Ratio Measurement: |
≤25000A/5A (5000A/1A) ≥5A/5A |
| PT Turn Ratio Measurment: |
≤500kV |
| Turn Ratio Measurement: |
≤0.5% |
| Application: |
Instrument |
| Phase: |
Single |
| Type: |
CT/PT |
| Operation Condition: |
Indoor & on-Site |
| Installation: |
Portable Type |
Product Description

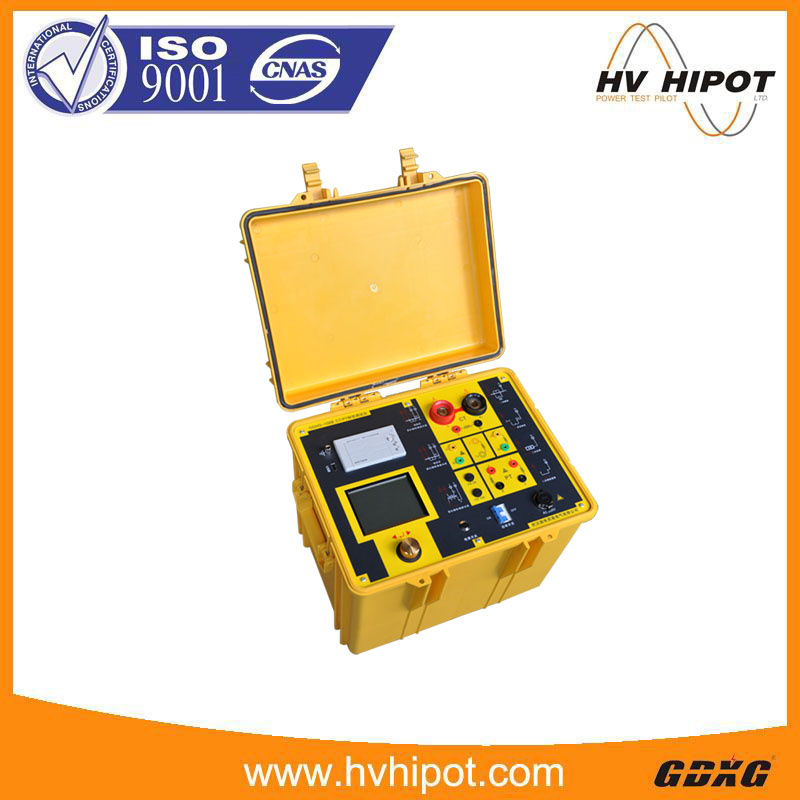

General introductionGDHG-106B CT/PT Analyzer is suitable for all types of CT and PT. For Laboratory and On-site test.
FeaturesL Finish all testing subject by itself, no need to connect auxiliary equipment.
L Built-in printer, to print results easily.
L Large screen LCD, graphically display.
L Auto display excitation knee point value, 5% and 10% error curve.
L Save 3000 groups data.
L With USB port. The data can be saved in USB disk and read by PC(WORD format file).
L Portable design about 35kg, suitable for on-site test.
L Engineering plastic box with damping, strong and reliable.
Specifications| CT (protection type, measurement type) | PT |
| v Voltage current characteristic curve (excitation characteristic) | v Voltage current characteristic curve (excitation characteristic) |
| v Auto calculate knee point value | v Auto calculate knee point value |
| v Auto display 5% and 10% error curve | v Turns ratio measurement |
| v Turns ratio measurement | v Polarity determination |
| v Ratio error measurement | v Ratio error measurement |
| v Phase measurement (angular difference) | v Phase measurement (angular difference) |
| v Polarity determination | v AC withstand test |
| v Primary current injection test | v Secondary winding resistance measurement |
| v AC withstand test | v Secondary burden measurement |
| v Secondary winding resistance measurement | v Demagnetization of iron core |
| v Secondary burden measurement | |
| v Demagnetization of iron core | |
| Item | Parameter |
| Power supply | AC220V±10%, 50Hz |
| Output | 0-2500Vrms, 5Arms(20A peak) |
| Output current | 0-1000A |
| Accuracy of excitation | ≤0.5%(0.2%*the reading+0.3%*range) |
| Secondary winding resistance measurement | Range | 0~300Ω |
| Accuracy | ≤0.5%(0.2%*the reading+0.3%*range) |
| Secondary actual burden measurement | Range | 0-1000VA |
| Accuracy | ≤0.5%(0.2%*the reading+0.3%*range) ±0.1VA |
| Accuracy of angular error | 4min |
| Accuracy of ratio error | 0.05% |
| CT ratio measurement | Range | 25000A/5A (5000A/1A)≥5A/5A |
| Accuracy | ≤0.5% |
| PT ratio measurement | Range | ≤500KV |
| Accuracy | ≤0.5% |
| Operation environment | Temperature: -10-40 degree, Humidity: ≤90%, Altitude: ≤1000m |
| Dimension&Weight | Dimension: 440mm × 340mm × 380mm
Weight: ≤35Kg |
