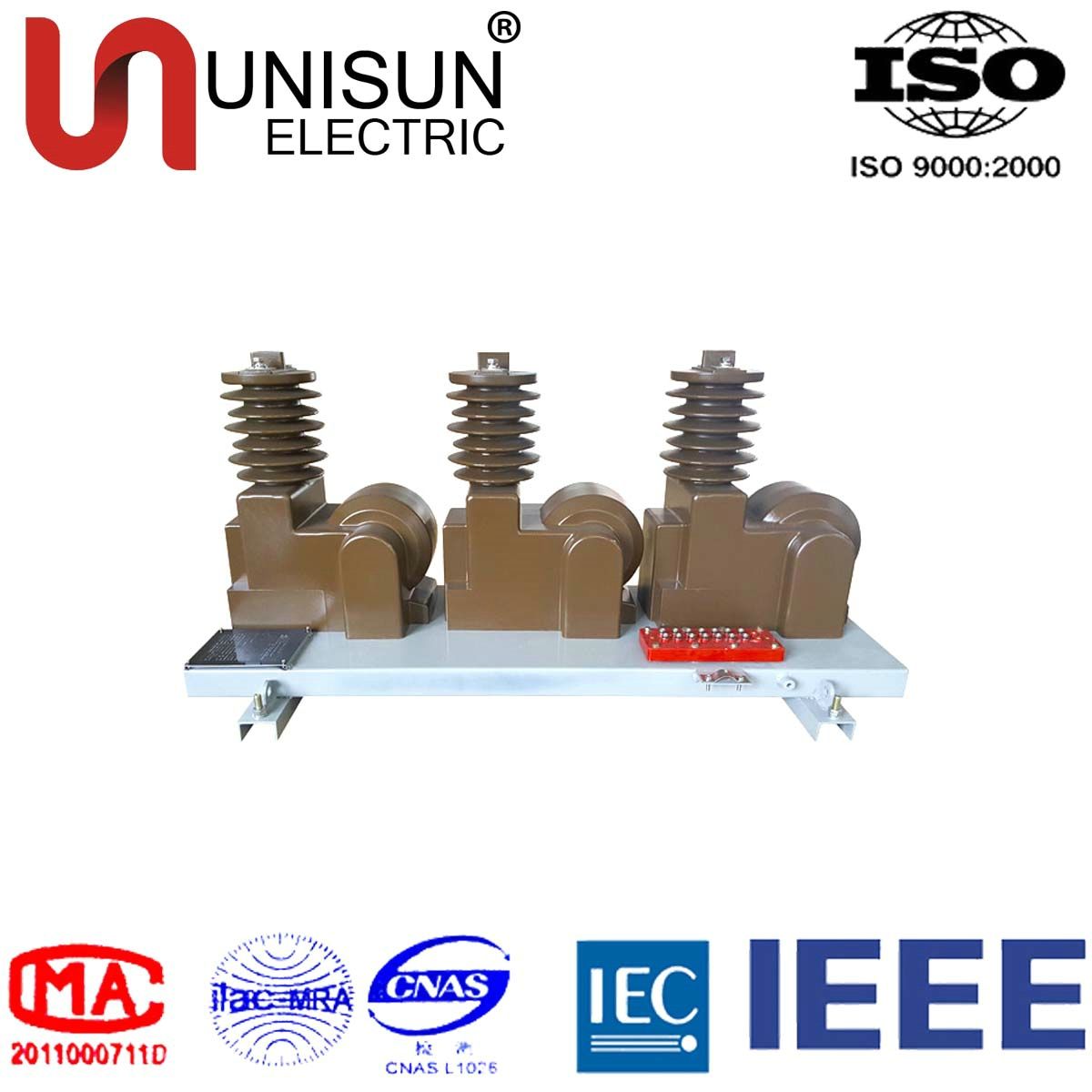

Current and Potential Metering Transformer
| Price: |
US $ 100-500/Piece |
| Min Order: |
2/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
30 years Manufacturing history,
10 years Japan OEM, to create high-quality!
We have all kind of instrument transformer from 0.3-40.5kV.
No matter what kind of specification, you want, then we have.
Email us, we will do full support!

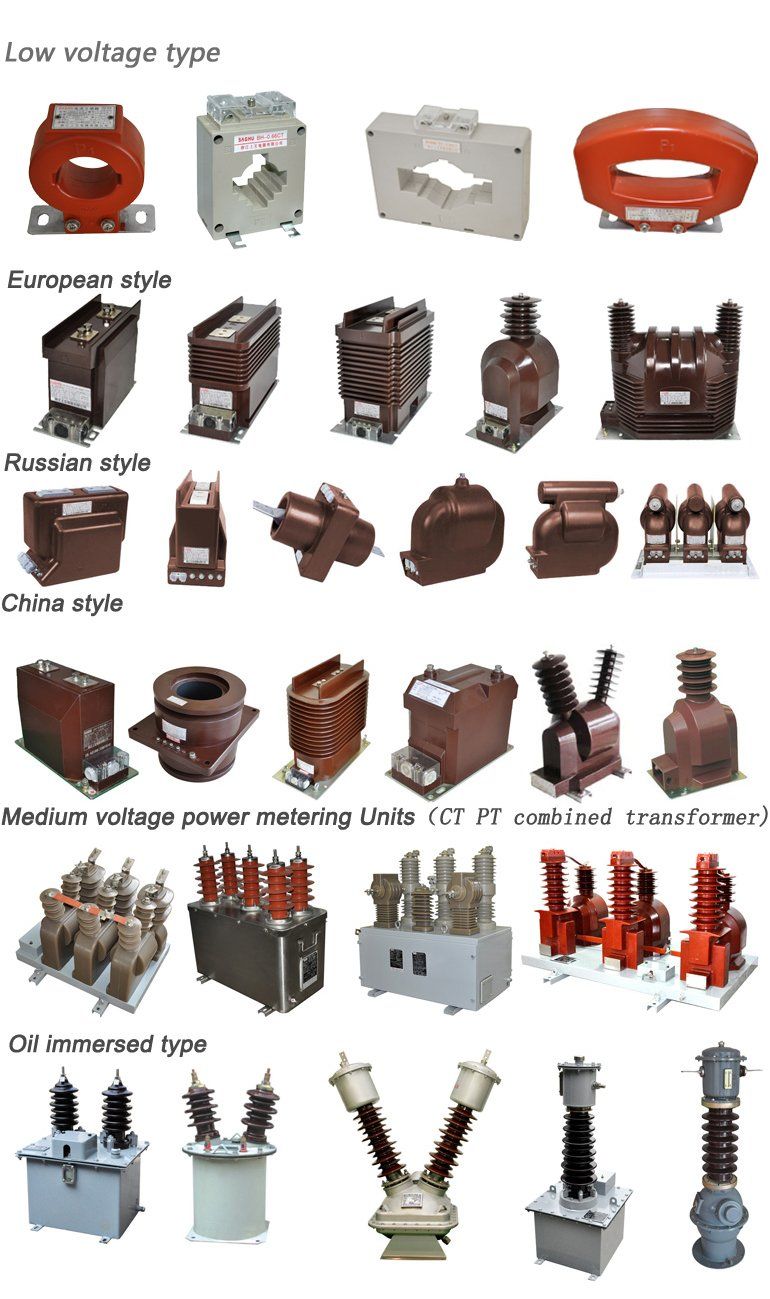

Our instrument transformer range:
| Type of insulation | Type of installation | Medium voltage | Accuracy class | Type of using |
| Epoxy | Indoor | 3kV | 0.2S | Metering |
| Oil immersed | Outdoor | 6kV | 0.2 | Protection |
| Porcelain | Busbar | 7kV | 0.5S | Power supply |
| Polymer | Bushing | 10kV | 0.5 | Zero sequence |
| PVC | Split core | 11kV | 5P10 | Discharging |
| | Window | 13.8kV | 5P20 | Combined |
| | | 15kV | 5P30 | |
| | | 17.5kV | 5P40 | |
| | | 20kV | 10P10 | |
| | | 23kV | 10P20 | |
| | | 27kV | 10P30 | |
| | | 33kV | 10P40 | |
| | | 35kV | 3P | |
| | | 38.5kV | 6P | |
| | | 40.5kV | | |
General
This indoor dry type instrument transformer used in 10kV, 11kV power system, for measuring and protection.
It have been used in cubicle switchgear or in bay-installed switching stations.
The current transformer made from high temperature indoor epoxy resin, amorphous alloy core for metering and high quality CRGO core for protection, primary and secondary use pure electrolytic copper, both winding and core have shielding processing.LQJ-11kV indoor epoxy resin current transformer
Standards
All SAGHU Electric instrument transformers are in conformity with IEC standards, and recommendations IEC 60044-1. Transformers in conformity with specific country standards can also be supplied. (IEEE C57.13, NBR6855).
Products photo
| Rated Voltage: |
11kv,13.8kv,17.5kv, 24kv,33kv,35kv |
| Application: |
Instrument |
| Type: |
Voltage Transformer |
| Phase: |
Single |
| Installation: |
Support Type |
Unisun Electric was founded in August 1987, formerly known as the original Yueqing Great Wall electrical equipment factory, founded by Mr. Huang in June 1987, Mr HUANG is also founder of YUEQING QIUJING SWITCH FACOTRY(FORMER OF CHIINT AND DELIXI).
After more than 30 years of development, the products cover Medium Voltage Switchgear, low voltage switchgear, Busbar Trunking System, Pole Top Switch, Transformers, Instrument Transformer, Ring Main Unit, Load Break Switch.
Unisun Electric has more than 600 offices and sales companies in all major cities in China, with 81 holding companies and more than 300 foreign-invested cooperative companies, with more than 3, 500 elite employees, including 450 scientific and technical personnel Operating area of 127, 000 square feet, the products are exported all over the world.
Over the years the company has been committed to the development of national electrical industry, and many scientific research institutes, universities and international industry giants to establish close cooperation, set up a "Anhui LV Power Technology Research Institute".
2009 and the United States General Motors (GE) strong combination, to create the Asia-Pacific region's largest and most professional marine switchgear and low-voltage electrical equipment, has developed the GEA plus2.0, Modula plus, Modula 630k, marine transformers, marine box substation, Marine electrical automation equipment, tunnel dedicated distribution cabinet and other products.
Unisun Electric in accordance with the modern enterprise advanced management mode, established a scientific and sound management system, in strict accordance with the ISO9001: 2000 quality management system for production, sales and service, such as comprehensive, strict and scientific control and management, 2008 and have imported ISO14001: 2004 environmental management system and OHSAS18000 occupational health and safety management system, to create an environmentally friendly, healthy, safe and harmonious new enterprise.
The company's production and development of products, have passed the 3C, CQC, UL certification, and have access to "YUEQING FAMOUYS MARK", "Zhejiang Famous Brand Product", "China's well-known high and low voltage switchgear products top ten brands", "China's leading enterprises", "China's top ten brands", "China's top ten brands", "China's top ten brands, " "China's top ten brands, " "China's top ten brands" Big influence brand ", " national famous product after-sales service advanced unit "honorary title.
The twenty-first century is the era of knowledge economy, enterprise competition and development with the opportunity, both opportunities and challenges. And excellent in the "in good faith as a fundamental, customer-centric, quality of survival, innovation and development" business philosophy, the spirit of "seeking cooperation and win-win cooperation" business philosophy sincerely welcome friends at home and abroad work together, A total of the glorious future, create greater glory!
