Current Transfomer for Mv Switchgear, Voltage Transformer, Measurement Transformer
| Price: |
US $ 120-200/Set |
| Trade Terms: |
FOB,CFR,CPT |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union |
| Prod Model: |
LZZBJ9-7.2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Environment Requirement: |
Indoor |
| Structure: |
Epoxy Resin Cast Fully Enclosed |
| Frequency: |
60Hz |
| Winding: |
E Type |
| Application: |
Lighting |
| Type: |
Voltage Transformer |
| Phase: |
Single |
| Installation: |
Lishi Fei Mifeng |
Product Description

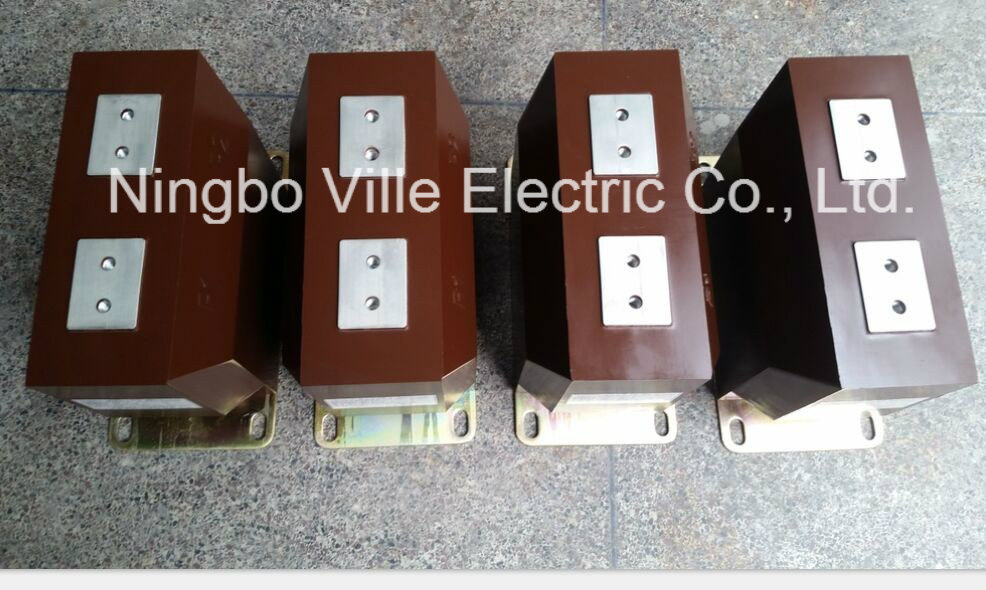

LZZBJ9-7.2
1) CT : 7.2kV, 15VA/15VA, 1.0CL/5P10, 60Hz, 25kA, 1SEC, 1000/1/1A
2) CT : 7.2kV, 15VA/15VA, 1.0CL/5P10, 60Hz, 25kA, 1SEC, 700/1/1A
3) CT : 7.2kV, 15VA, 25kA, 1.0CL, 60Hz, 25kA, 1SEC, 1200A/1A
4) CT : 7.2kV, 30VA, 25kA, 5P10, 60Hz, 25kA, 1SEC, 700A/1A
LZZBJ9-35

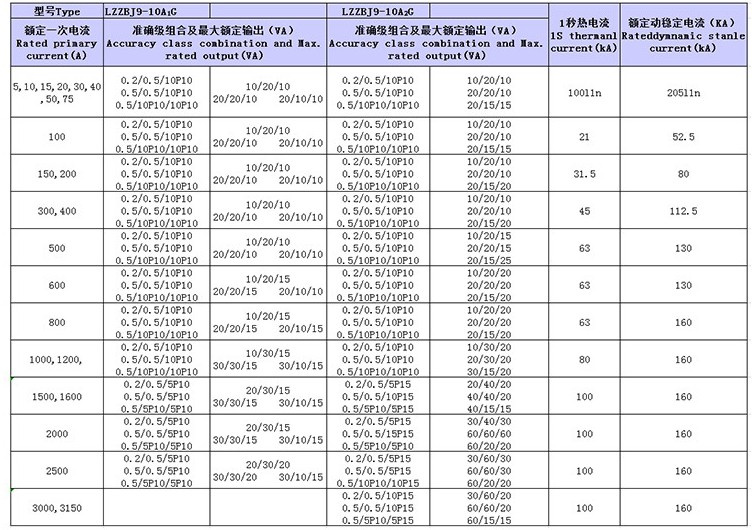

LZZBJ6-11Q,LZZBJ6-11A,LZZBJ6-11B current transformer(CT), epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body.The product has two secondary winding (one measuring widely and one protective winding).It is widely used for measuring current, electric energy and protective relaying in the power system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 7.2/12kV, IEC61869-1&2Technical Data:1) Rated insulation level: 12/28/75kV2) Rated frequency: 50/60Hz3) Installation site: Indoor4) Technical standard: IEC 60044-1:2003, IEC 61869-1&2Specification1) Single Ratio| Rated transformation ratio (A) | Accuary classes combination | Rated output (VA)
COS=0.8 | ALF | FS | Short-time thermal current Ith (KA/S) | Rated dynamic current Idyn (KA) |
| Measuring | Protective |
| 0.2 (s) | 0.5 | 10p |
| 5/5 | 0.2 (s)/0.2 (s)
0.2 (s)/0.5
0.2 (s)/10p
0.5/10p | 10
15 | 15 | 15 | 10 | 5
(10) | 0.5 | 1.25 |
| 10/5 | 1 | 2.5 |
| 15/5 | 1.5 | 3.75 |
| 20/5 | 2 | 5 |
| 30/5 | 3 | 7.5 |
| 40/5 | 4 | 10 |
| 50/5 | 5 | 12.5 |
| 75/5 | 7.5 | 18.75 |
| 100/5 | 10 | 25 |
| 150/5 | 15 | 37.5 |
| 200/5 | 20 | 50 |
| 300/5 | 31.5 | 80 |
| 400/5 | 31.5 | 80 |
| 500/5 | 40 | 100 |
| 600/5 | 50 | 125 |
| 800/5 | 20 | 63 | 125 |
| 1000/5 | 80 | 160 |
| 1250/5 | 80 | 160 |
| Rated transformation ratio (A) | Accuary classes combination | Rated output (VA)
COS=0.8 | ALF | FS | Short-time thermal current Ith (KA/S) | Rated dynamic current Idyn (KA) |
| Measuring | Protective |
| 0.2 (s) | 0.5 | 10p |
| 10-20/5 | 0.2 (s)/0.2 (s)
0.2 (s)/0.5
0.2 (s)/10p
0.5/10p | 10
15 | 15 | 15
20 | 10
15
20 | 5
(10) | 1.5 | 3.75 |
| 20-40/5 | 3 | 7.5 |
| 50-100/5 | 8 | 20 |
| 100-200/5 | 15 | 37.5 |
| 200-400/5 | 30 | 75 |
| 400-800/5 | 63 | 130 |
| 500-1000/5 | 80 | 160 |
