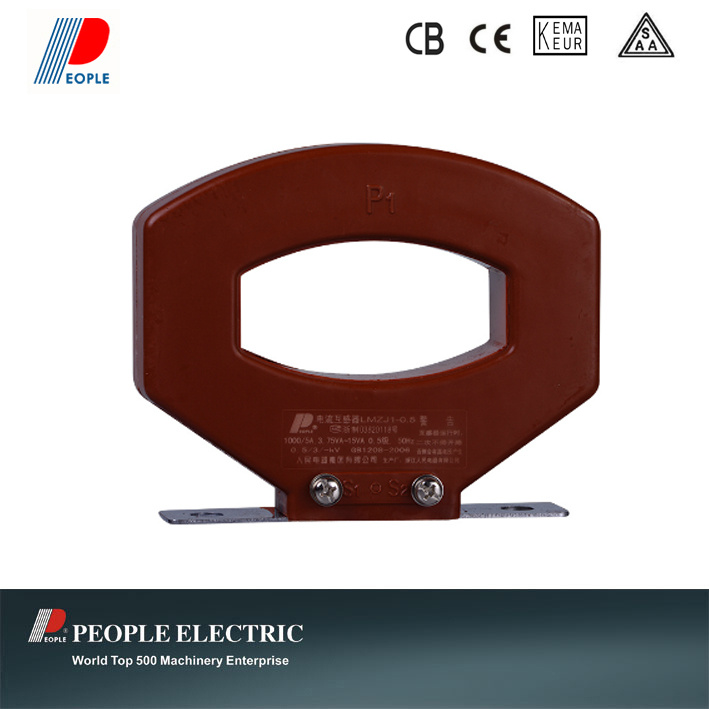

ApplicationLM-0,5 series indoor current transformer, it's used in the circuit, 50Hz, rated voltage 500V. For measurement of instruments, meter or relay protection, control device to transport signal, and measure, protect & control device to isolate from high voltage.
Normal working & installment conditions1.Temperature: -5ºC~+40ºC
2. Humidity: ≤80%
3. Altitude: ≤1000m
4. Mounting place: indoor place without metal dust or obvious shock
Specification| Rated voltage | 500V |
| Rated frequency | 50Hz |
| Rated primary current | 10A, 12.5A, 15A, 20A, 25A,..,6000A |
| Rated secondary current | 5A;1A |
| Secondary load power factor | 0.8 (delay) |
| Rated output | 2.5VA, 5VA, 10VA, 20VA |
| Accuracy | 0.2; 0.2S; 0.5; 0.5S |
| Isolation resistance | isolation resistance of primary winding to secondary winding and to earth ≥20MΩ |
| Power frequency withstand voltage | Withstand valid value of primary winding to secondary winding and to earth ≥ 3kV |

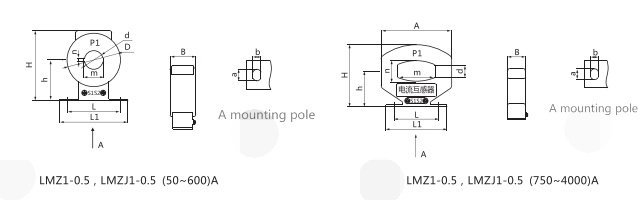

Appearance & installment dimension
Packing and shipping-- Ordinary paper carton for products.
-- Shipping mark according to customer's request.
-- Bulk production will be deliveried by sea and air.
Our Service-- We have our own factory, professional manufacturer
-- We can send you samples within one week.
-- We do OEM & ODM services .
-- We control quality strictly, quality problem: 100% compensation or change
Warmly welcome to visit our factory. Welcome customer or your agent to inspect before order or lading.
