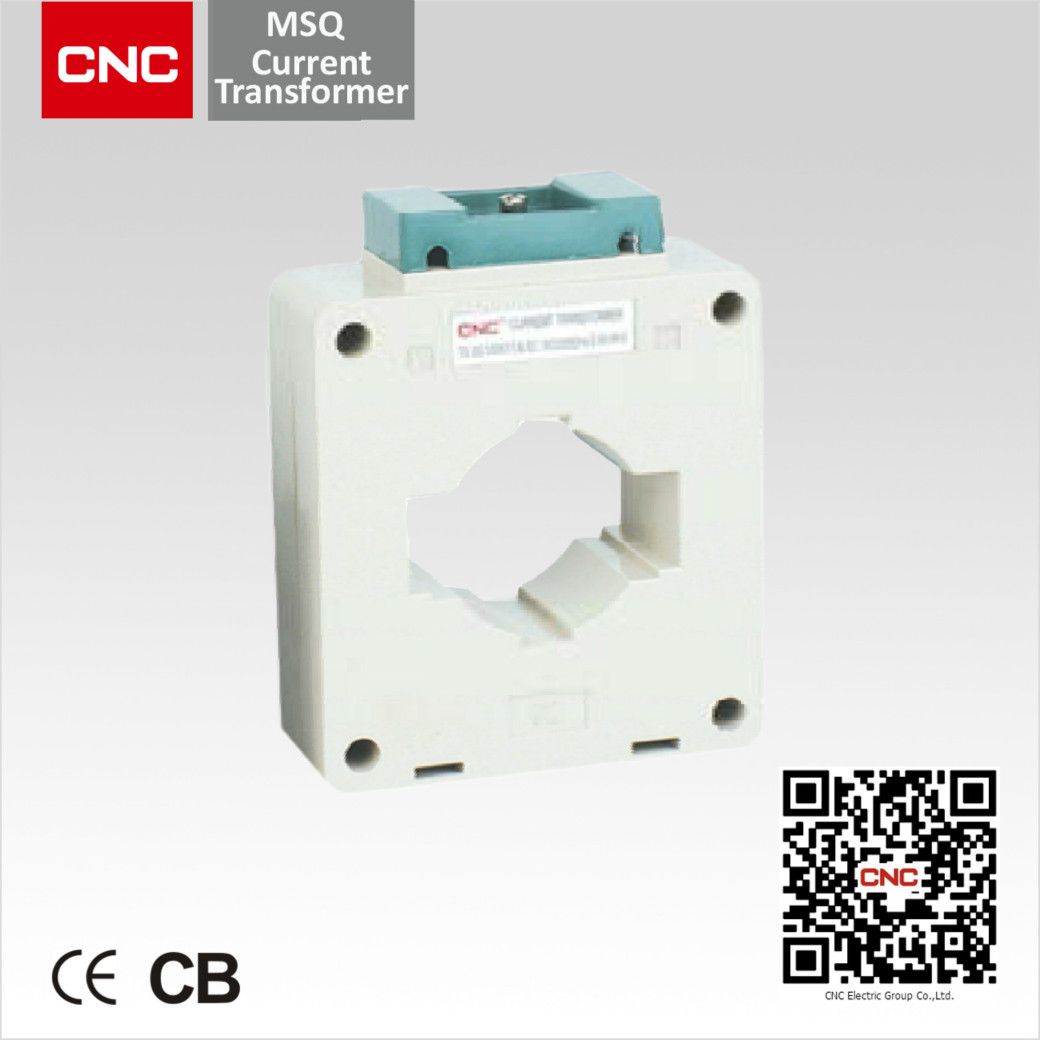

Current Transformer (MSQ-30)

Name: Current Transformer (MSQ-30)
Brand: all-electronics-online.com
SKU: 611474995
Availability: InStock
Rating: 4.6 (66 reviews)

Price:	US $ 2.5/Piece
Trade Terms:	FOB,CIP,others
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	MSQ-30
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Zhejiang China (Mainland
Coil Number:	Autotransformer
Model Number:	Msq, Rct
Rated Current Ratio(a):	15/5A-6000/5A
Rated Voltage (V):	0.5kv, 6-10kv, 10-35kv
Rated Frequency (Hz):	50/60
Accuracy Class:	Class 1.0, Class 0.5,Class 0.2, Class 0.5s, Class
Packaging Detail:	Standard Export Carton
Type:	Current Transformer
Phase:	Single
Application:	Lighting

Product Description

The series of current transformer can be applied to test, control, display and record the running of the electrical equipment, and to protect the equipment against the damage, in the AC circuit with the rated voltage value below 660V and the frequency of 50-60Hz. The current transformer can be also applied to form a complete set of mine transformer. The current transformer conforms to IEC 185.

Specification:
Measuring range 30~50A/5, 60A/5, 100A/5, 150A/5, 200A/5, 250A/5, 300A/5, 400A/5, 500A/5, 600A/5, 800A/5, 1000A/5, 1200A/5
HS Code: 85362000
Trademark: CNC, OEM
Origin: China
Packing: Export Package
Min. Order: 5, 000PCS
Transportation: By sea or air

Type	Current ratio		Capacity (VA)	Accuracy	Working voltage(kv)
MSQ-30	30/5	150/5	5	0.5 1.0 3.0	0.66
	40/5	200/5
	50/5	250/5
	60/5	300/5
	100/5
MSQ-40	200/5	400/5	5 10	0.5 1.0
	250/5	500/5
	300/5	600/5
MSQ-60	400/5	800/5	5 10 15	0.5 1.0
	500/5	1000/5
	600/5	1200/5
MSQ-100	1000/5	2000/5	10 15 20	0.5 1.0
	1200/5	2500/5
	1500/5	3000/5
MSQ-125	2000/5	4000/5	20 25	0.5 1.0
	2500/5	5000/5
	3000/5

CHANGCHENG Group, mainly engaged in circuit breaker, AC contactor, starters, relays, instruments, switches, fuses low voltage products and transformer, whole set cabinet etc high voltage products. By now, our company has developed into one of the largest trans-regional, conglomerate and trans-national enterprise on scale and developing potentiality.

Our main lines now include high-low voltage appliances, complete sets, highway guardrail, electronic controlling equipment, vessel manufacture, and lighting etc, With an annual throughput value of 20 billion Yuan. Furthermore, having received the ISO9001, ISO14001, OHSMS 18001, UL, VDE, TSE, CB, CCC certificate for various product series, besides that all our products have been undertaken by People's Insurance Company of China on quality responsibility. And also our products have been approved as the well-known trademark of China, we are now achieving high sales shares in markets worldwide.

We welcome both new and existing customers to come take a look at our current line up and hope that you will choose our brand of competitively priced quality products. Please feel free to send us your inquiries and we will be happy to answer any questions you may have.
