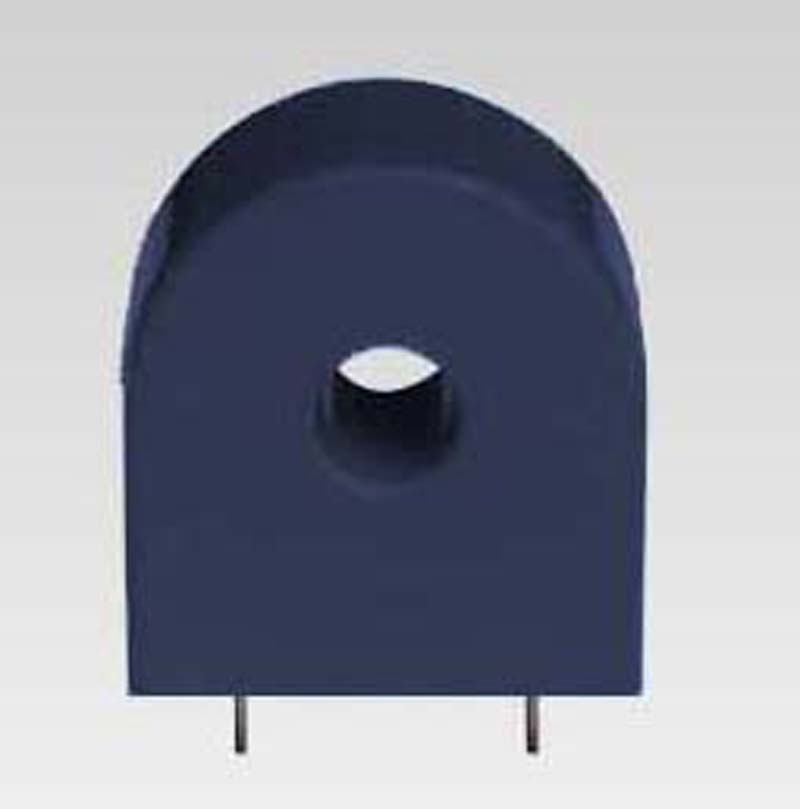

Current Transformers (CT204H BLK)

Current Transformers (CT204H BLK)
I), Feature
1), Encapsulated by Epoxy resin, all enclosed design, good performance of mechanical and insulation.
2), Pin design, easy to installate in PCB.
3), This series of CTs have small size that can be used as separate.
4), Smalll size, light weight, standard hole easy to installation.
5), Good immunity of humidity and shock.

II), Normal specifications and parameters as follow.

Electrical Specification
Primary Current	15A
Secondary Current	5mA
Turns Ratio	1: 3000
Current Range	0 ~ 30A
Linearity	0.2%
Accurancy Class	0.5
Rated Burden	≤ 200 Ω
Frequency Range	50 ~ 60Hz
Dielectric Level	3000VAC/min
DC Resistance at 20º C	320Ω ± 10%
Mechanical Specificationa
Cup	PBT
Encapsulant	Epoxy
Terminals	Pin Φ 0.8mm
Tolerance	± 0.3 mm
Approx. Weight	6.5g
Case	Carton
Environment Specification
Storage Temperature	-40º C ~+130º C
Insulation Resistance	> 100 MΩ
