Prod Model: |
Ri 042 |
Board Material: |
Fr4 |
Layers: |
1 to 30 Layers |
Board Thickness: |
1.6mm |
Copper Thickness: |
1oz |
Solder Mask: |
Green |
Silk Screen: |
White |
Surface Treatment: |
HASL Lead Free |
Test: |
100% |
Lead Time: |
6-8 Working Days |
Min. Line Width: |
0.075mm |
Structure: |
Double-Sided Rigid PCB |
Material: |
Phenolic Paper Laminate |
Production Process: |
Semi-Additive Process |
Brand: |
Fastline |
Base Material: |
Fr4 |

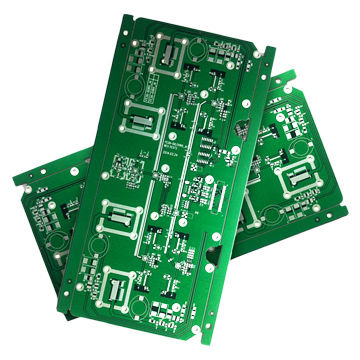

Product Description

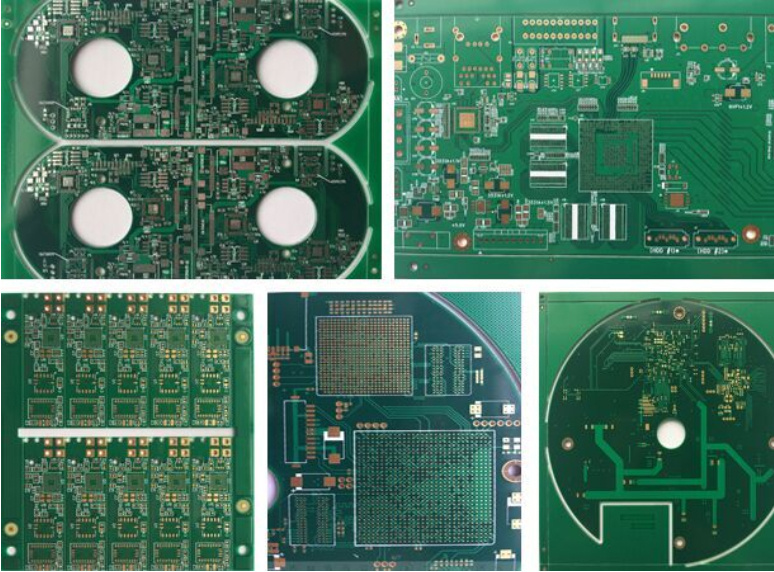

Custom made etching Service PCB Fabrication with One Stop ServiceProduct Description Fastline PCB's aim
Customer Satisfaction is Always Our First Priority!
*Quality Policy
*Top Quality and high efficiency
*Improve continuously
*Achieve customer's satisfactionTechnical CapabilitiesPCB product specificationSurface processing | Lead- Free HASL/Plating gold / immersion gold /Plating gold finger/OSP |
Layers | 1~24 layers |
Copper Thickness | O.5OZ~10OZ |
Board Thickness | 0.2mm~3.2mm |
Min Hole Size | 0.2mm |
Min Line Width | 0.1mm |
Min Line Spacing | 0.1mm |
Max board Size | Depends on customer's requirements |
Solder mask type | Green/ Black/ Red/ Yellow/ White/Blue. |
Silk legend color | White / Yellow/ Black |
Data file format | GERBER file and corresponding drilling file, PROTEL series,BOM list |
Base material | FR4, CEM3,FR1,aluminum based board,High TG board, High frequency board |
Certifications | ISO9001:2000 ; TS16949; ROHS; SGS; |
PCB Assembly | DIP, SMD |
PCBA product specification
Quantity | Prototype&Low Volume PCB Assembly&Mass production(without MOQ) |
Type of Assembly | SMT,DIP&THT |
Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free |
Components | Passive Down to 0201 size; BGA and VFBGA; Leadless Chip Carriers/CSP |
Bare Board Size | Smallest:0.25*0.25 inches ; Largest:20*20 inches |
File Format | Bill of Materials; Gerber files; Pick-N-Place file |
Types of Service | Turn-key,partial turn-key or consignment |
Component Package | Cut Tape,Tube,Reels,Loose Parts |
Turn Time | Same day service to 15 days service |
Testing | Flying Probe Test; X-ray Inspection; AOI Test |
PCBA Process | SMT--Wave Soldering--Assembling--ICT--Function Testing |

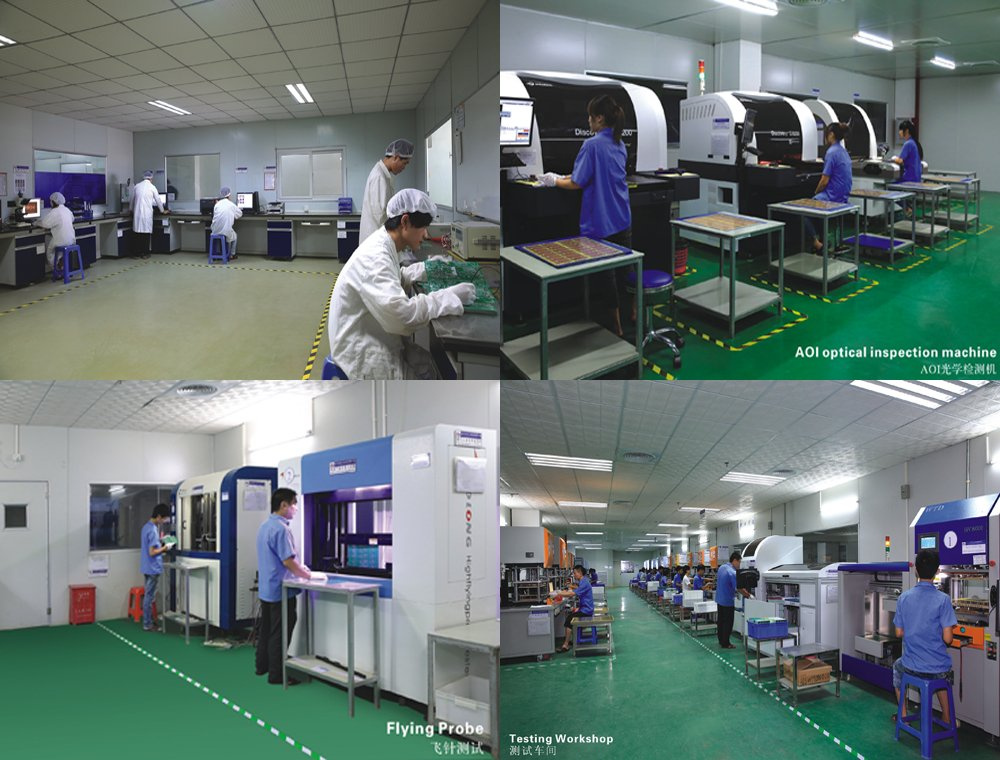

Product descriptionProducts Equipment
Packaging & shipping
FAQHow long can we received the product?
PCB ,We can deliver in 5~7 days for the sample, after all gerber data were clarified by our engineers.
For mass production,they will be shipped in 10~15 days.
PCBA,5~7 days after we complete the PCB parts.• What kind of transportation we adopt?
It'll depand on your choice.
And we often mails by DHL if you don't have special requirements.
It is very fast and safe.• Do you have an order minimum?
We accept order with as low as a quantity of 1 (piece or panel).
• How to place the order?
Please send us your purchase order by e-mail, Trade Manager or Skype.
Then ask us to send you a Proforma Invoice for your order.Welcome to contact us
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. ULCertification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customers requirements on time, every time!
