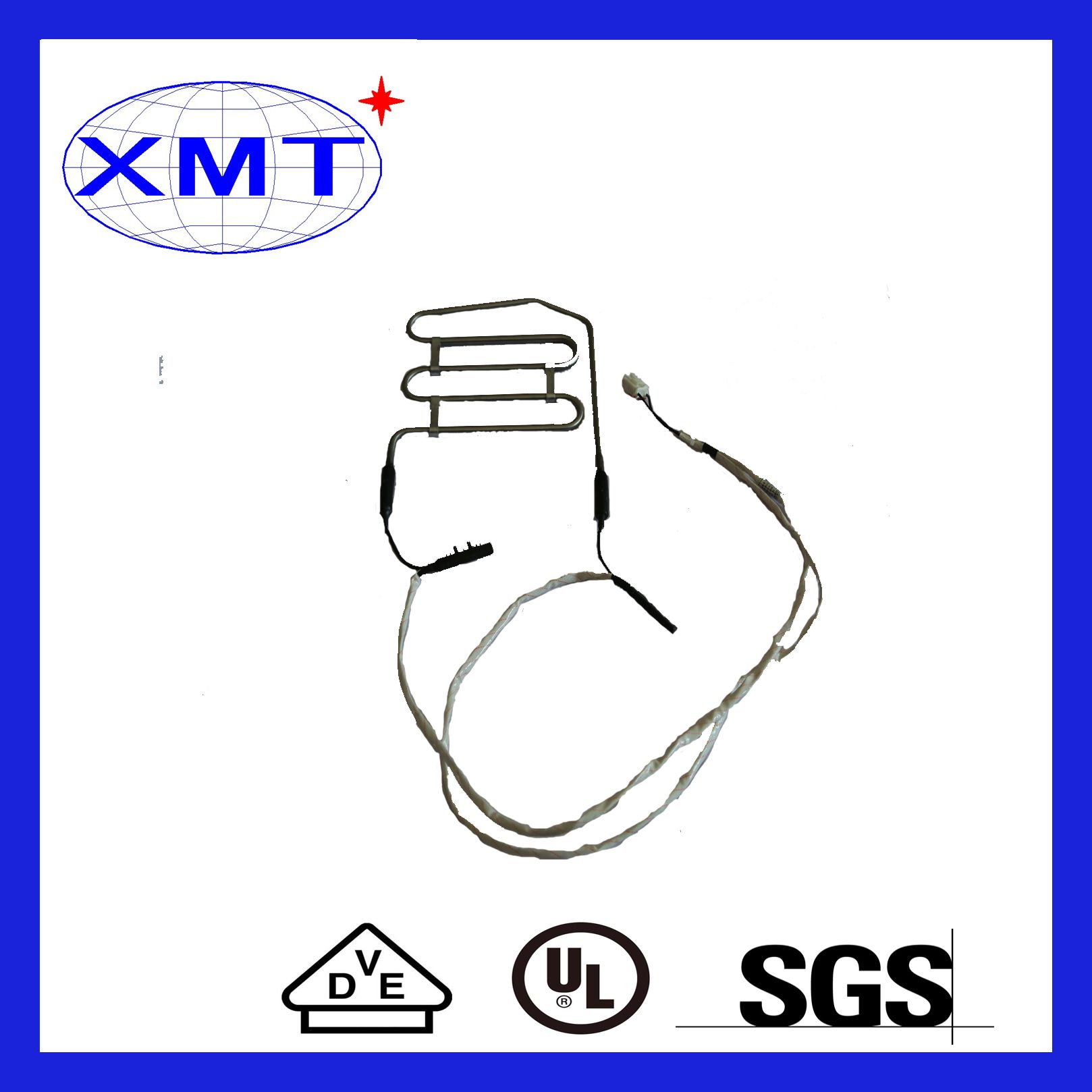

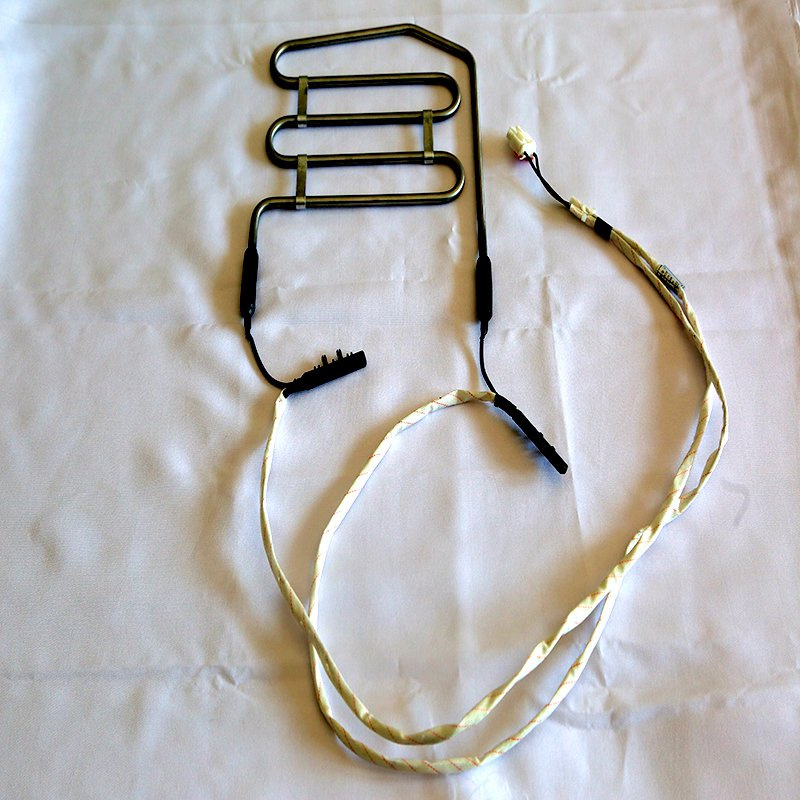

Customised Electric Heating Element for Refrigerator

Name: Customised Electric Heating Element for Refrigerator
Brand: all-electronics-online.com
SKU: 831876195
Availability: InStock
Rating: 4.8 (138 reviews)

Price:	US $ 3.62-3.93/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Company Description:
Changzhou Thermoster Electrical Appliance Co., Ltd is a professional and well known home appliance assembling manufacturer in China. It have been founded over 10 years and built relationship with many famous companies such as Haier, LG and Whirpool. Now in order to satisfy the demand, we have three factories and employed over 1000 people. In terms of product certification, we get UL, VDE, ROHS. Hope to get one chance to serive you in the future.

Product Description:

Applied in the refrigerator, it has function of freezing and is ice-free.
Corrosion resisting
high insulation degree
Thermal inertia
thermochemical stability
long life
Vitreous enamel sealed can tolerate very high temperature

Technical Parameter:
1. Insulation Resistance ≥200MΩ
   2. insulation resistance after wet and hot testing ≤30MΩ
   3. Damp leakage current ≤0.5mA
   4. Surface electric density ≤3.5W/cm2
   5. operating temperature is 150ºC
   6. Max use temperature is 300ºC

Required information for Customized product:

Tube material
Voltage Power
Drawing is preferred
Tube Diameter and length

Excellent Customer and Strong firm Background:

Prod Model:	JGQ05-220V/200W08
Heating Wire:	Cr25al5
Delivery Time:	15 Days
Voltage:	24V-480V
Power:	100W-3000W
Ambient Temperature:	-60ºC-+125ºC
Model:	220V/200W

Thermoster, industrial leader and innovator, is the leader professional manufacturer in China in the industry of home appliances. Its head office is located in the national Hi-Tech Industrial development zone in Changzhou, Jiangsu. To meet different market requirement, we established individual-owned enterprises, Jiangsu Thermoster Electric appliance Co., Ltd and Huaian Thermoster Electrical Appliance Co., Ltd.

Strengthening Thermoster's own comprehensive capacity, locating the worldwide market, Thermoster has taken a step into the globalized development, Our main product contains WP, WPF, WDF, WSF, WDFE, WMF thermostat, JGQ, JGS heating element, and magnetic sensitive switch and widely used in refrigerators, air conditioners, wash machine, ice drinking machine, water heater, solar, oven and other home appliance. Thermoster's products have passed the ISO9001, 14001, UL, VDE, CQC, CSA, CB and other national, international certifications, it has won 14 national utility model patents and 21 national appearance patents.

Thermoster has been upholding the enterprise spirit and culture of "innovation and excellence, pursuit excellence, sincere cooperation and developing together". Thus, Thermoster adopts OA, ERP and PDM management system.

In addition, Thermoster strictly implements the national laws and regulations in order to effectively protect lawful rights and interests of workers. It focuses on safety production and environment protection and have donated over 600 thousand RMB to various charity activities, which fully realizes the social responsibility of Thermoster.
