Dongguan City Jiutai Fiberglass Products Co., Ltd. >> Customized All Kinds of Insulation Epoxy Rods

Customized All Kinds of Insulation Epoxy Rods

Customized All Kinds of Insulation Epoxy Rods
Price: US $ 1.00/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 50/Meter
Pay Type: T/T

Product Description

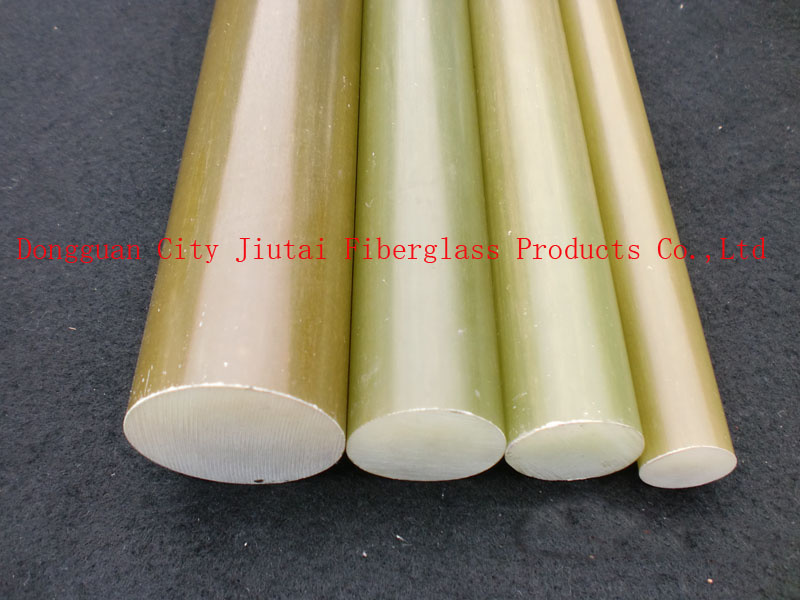

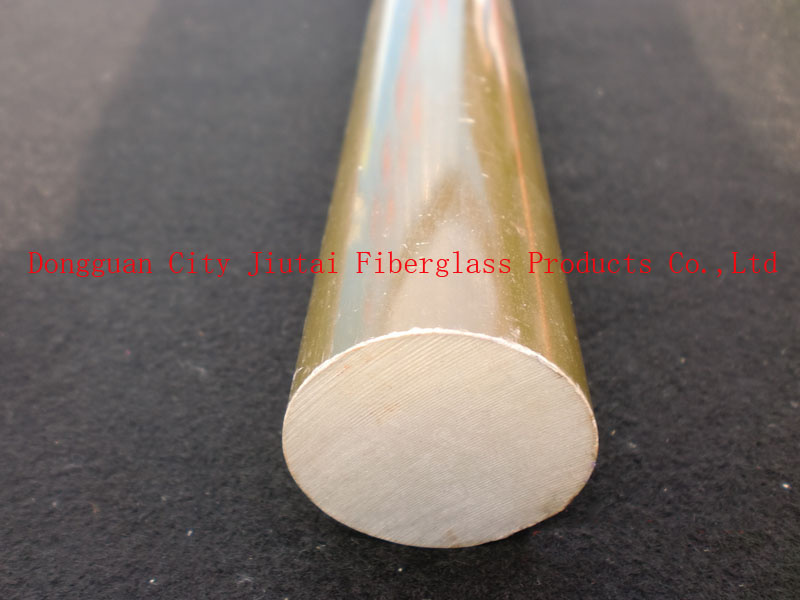

High Pressure High Temperrature Transparent Epoxy Rods:


1.Simple Introduction

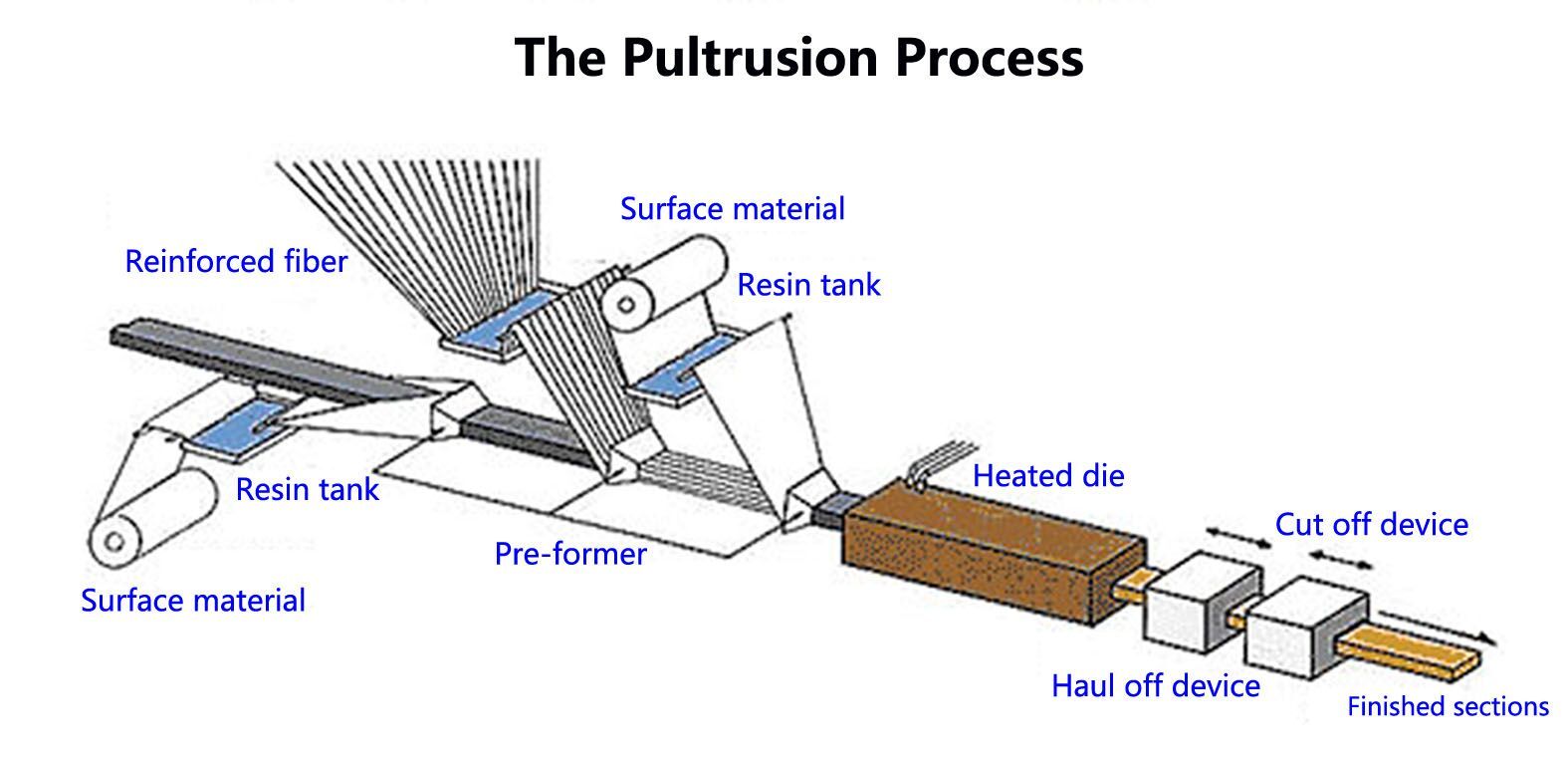

Transparent epoxy rods enjoy pultrusion, adopt filament glass fiber to impregnated with epoxy resin at high temperature pultrusion.

2.Features
 High pressure, high temperature resistance, corrosion resistance, long life,, no deformation, mechanical stability. Good Insulation.


The price is various from specification to specification

products namespecification(mm)weight(g/m)

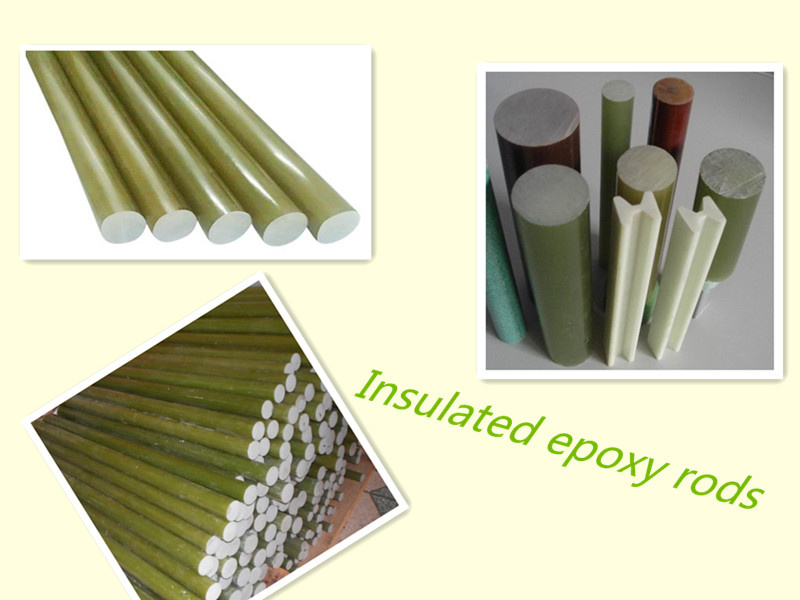

Insulated epoxy rods12.0m/m237.5
14.0m/m323.5
16.0m/m422.5
17.2m/m488
17.48m/m504
18.0m/m535
20.0m/m660
22.0m/m798.5
24.0m/m950
25.0m/m1031
26.0m/m1115
28.0m/m1294
30.0m/m1485
32.0m/m1689
34.0m/m1907
35.0m/m2021
36.0m/m2138
38.0m/m2382
40.0m/m2639
45.0m/m3340
50.0m/m4124
60.0m/m5938
63.0m/m6547
70.0m/m8082
90.0m/m13360



Prod Model: JT001
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size: Any Diameter
Lenght: Customer Lenght Cut
Specification: According to Customer's Need
Thickness: >2.0G/M*3
Surface Treatment: Coated,Painted,Original
Yield: More Than 1000 Tons / Year
Service Life: More Than 15 Years
Certificate: ISO
Application: Insulators
Type: Solid
Chemistry: Inorganic Insulation
Material: Fiberglass
Thermal Rating: E 120
Maximum Voltage: >100KV
Certification: RoHS
Companies with pultrusion and winding two as the leading technology, its main products are: Fiber glass rod, fibre glass rod, glass tube, glass fiber sheet, glass fiber expansion pipe, glass fibre cone solid rod hollow pipe, glass fiber reinforced plastic square tube, glass fiber reinforced plastic steel channel; Carbon fiber bar, carbon fiber tube, carbon fiber sheet, 1 k, 3 k carbon fiber volume tube, carbon fiber expansion pipe, carbon fiber taper pipe, conical rod; Epoxy bar, insulation core rod, such as profile. This product performance is: High strength, high elasticity, anti-aging, impact resistant, corrosion resistance, easy to coloring, low shrinkage, stable quality, light beautiful wait for an advantage, with the traditional steel iron wood and plastic products compared, which has both the strength of the iron and steel products and plastic products with toughness, is the modern industrial and agricultural products new substitute one of materials.

The enterprise always adhere to: "to the quality strives for the market, in the credibility of survival, service for benefit"; Providing good quality products and services is our glory. Sincerely looking forward to cooperating with your company.
