Product Description
Commodity Introduction

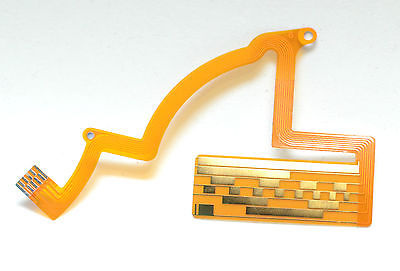

This is a type of polyimide PCB for the application of Sensor. It's a single sided layer board at
0.1mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately. Parameters & Data Sheet| PCB SIZE | 65 x 43mm=1PCS | | BOARD TYPE | | | Number of Layers | double | | Surface Mount Components | YES | | Through Hole Components | no | | LAYER STACKUP | copper ------- 35um(1oz) | | Polyimide 0.1mm | | TECHNOLOGY | | | Minimum Trace and Space: | 12mil/12mil | | Minimum / Maximum Holes: | 2.5mm | | Number of Different Holes: | 1 | | Number of Drill Holes: | 2 | | Number of Milled Slots: | 0 | | Number of Internal Cutouts: | 0 | | Impedance Control | NO | | BOARD MATERIAL | | | Glass Epoxy: | Polyimide 0.1mm, FPC | | Final foil external: | 1oz | | Final foil internal: | 0oz | | Final height of PCB: | 0.1mm ±0.05 | | PLATING AND COATING | | | Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 1 µ" over 100 µ" nickel) | | Solder Mask Apply To: | TOP | | Solder Mask Color: | Yellow, Coverlay | | Solder Mask Type: | LPSM | | CONTOUR/CUTTING | Laser cut | | MARKING | | | Side of Component Legend | TOP | | Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. | | Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA | | VIA | None Plated Through Hole(NPTH) | | FLAMIBILITY RATING | UL 94-V0 Approval MIN. | | DIMENSION TOLERANCE | | | Outline dimension: | 0.0059" (0.15mm) | | Board plating: | 0.0030" (0.076mm) | | Drill tolerance: | 0.002" (0.05mm) | | TEST | 100% Electrical Test prior shipment | | APPLICATION: | Bluetooth, Converters
Portable Router
3G Speed
4G Speed
GPS For Car | | TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc | | SERVICE AREA | Worldwide, Globally. |
|

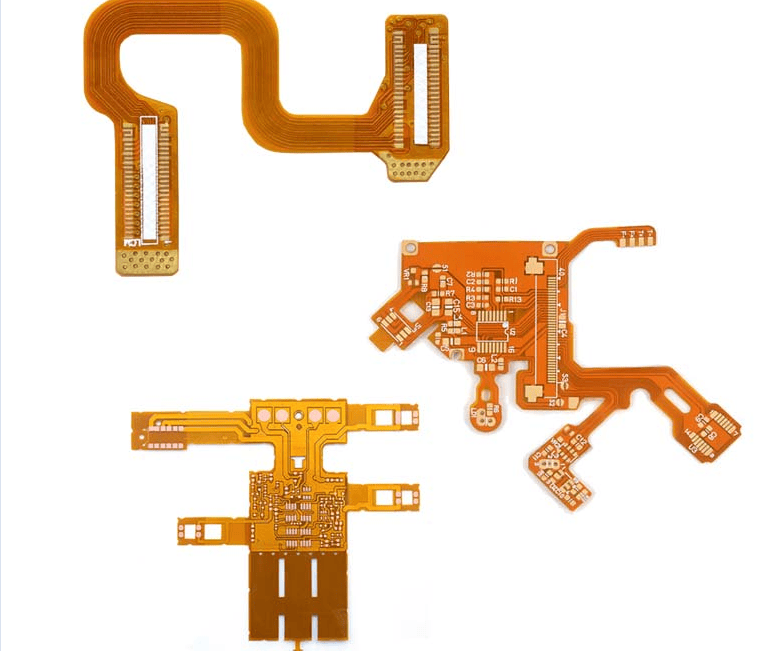

Flexible Circuits Capability| Product Name | Flexible Circuits |
| Type | 1-8 Layer |
| Quality Grade | Standard IPC 2 |
| Material | DuPont PI, Domestic Shengyi PI |
Board Size | Min 6mm*6mm, Max 400mm*500mm |
| Board Thickness | 0.6mm - 2.0mm |
| Copper Thickness | 0.5oz - 2.0oz |
| Min Tracing / Spacing | 3mil |
| Solder Mask Sides | As per the file |
| Solder Mask Color | Green, White, Blue, Black, Red, Yellow |
| Solder Stop Coating | PI and PET Film |
| Silkscreen Sides | As per the file |
| Silkscreen Color | White, Black, Yellow |
| Surface Finishing | HASL, HASL Leadfree, Immersion Tin, Gold Finger, OSP |
| Min Annular Ring | 4mil |
| Min Hole Diameter | 8mil |
| Tolerance Dimension | ±0.05mm |
| Other Tech | Peelable Solder Mask, Stiffener
|
Single Layer FPC Structure:
This kind of fpc is simple structure FPC.Usually made by Raw material and stick band copper clad laminates,those three raw materials are basic production material of fpc .
First the clad laminates need etching then get the circuit we want. The protective film need drill vias then get pads.
Then clean it up with rolling process to combine both together.
Then do the ENIG or HASL surface finishing to protect the pad. In this way fpc board will be made.
Usually need stamping exactly corresponding and form small printed circuit board.some fpc factory didn't use use protection,this cost will be very low,but the circuit board strength will become bad. Except for the strength need low level,price need low ,better us paste protective film.
Double FPC Structure:
When the board circuits are very complex and single board can not reach functions needs,we need choose double fpc or multilayers fpc .The difference bewtween single layer fpc and mutilayer fpc are add via design series so that connect all layers clad copper.
Usually the first step to make vias. Drilling vias on the base material can clad copper are first step. And the next step is almost same to single layer fpc.
